Mobatime PROFILINE round Mounting Manual

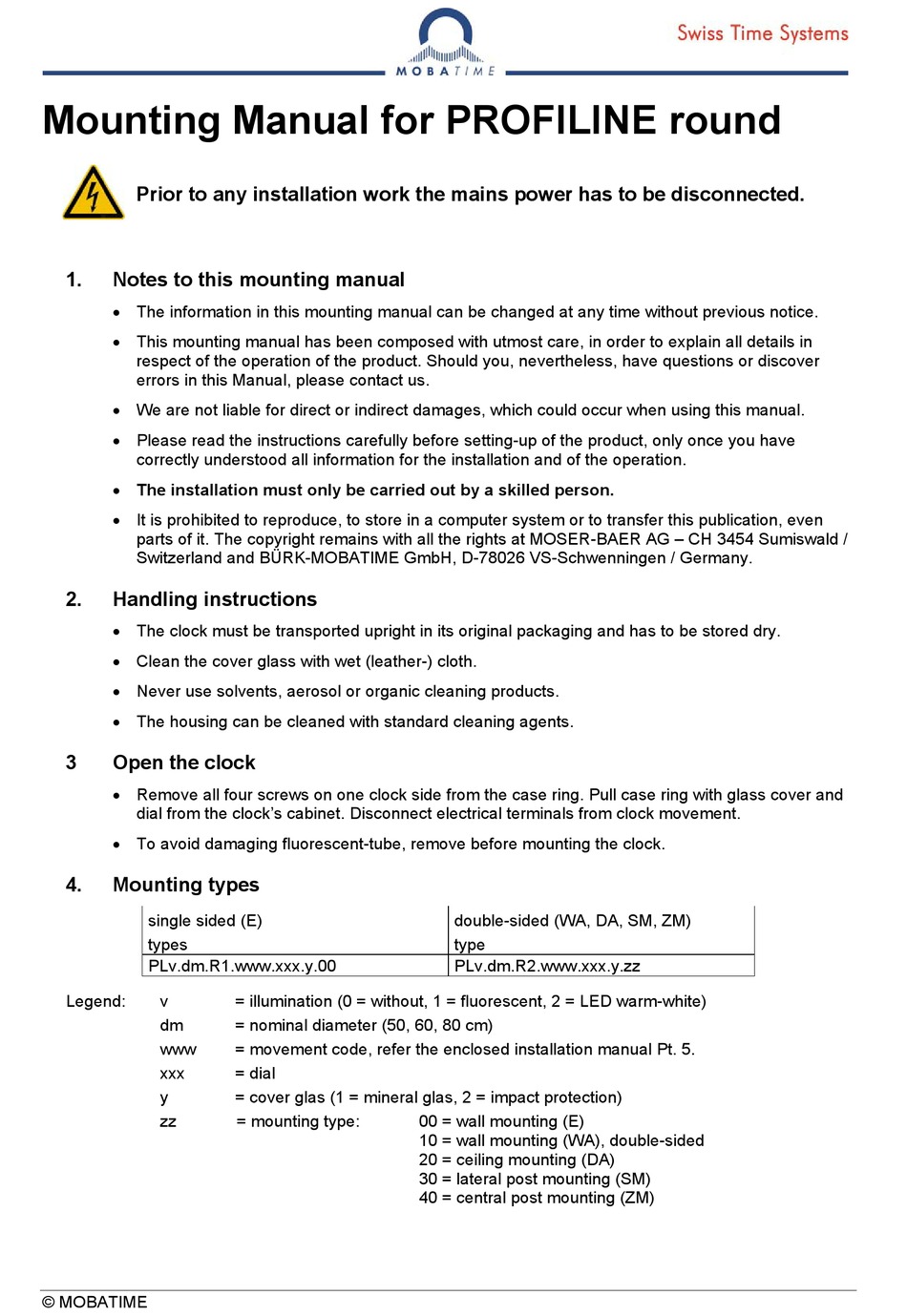

Mounting Manual for PROFILINE round
Prior to any installation work the mains power has to be disconnected.
1.

Notes to this mounting manual

 The information in this mounting manual can be changed at any time without previous notice.
 This mounting manual has been composed with utmost care, in order to explain all details in
respect of the operation of the product. Should you, nevertheless, have questions or discover
errors in this Manual, please contact us.
 We are not liable for direct or indirect damages, which could occur when using this manual.
 Please read the instructions carefully before setting-up of the product, only once you have
correctly understood all information for the installation and of the operation.
 The installation must only be carried out by a skilled person.
 It is prohibited to reproduce, to store in a computer system or to transfer this publication, even
parts of it. The copyright remains with all the rights at MOSER-BAER AG – CH 3454 Sumiswald /
Switzerland and BÜRK-MOBATIME GmbH, D-78026 VS-Schwenningen / Germany.
2.

Handling instructions

 The clock must be transported upright in its original packaging and has to be stored dry.
 Clean the cover glass with wet (leather-) cloth.
 Never use solvents, aerosol or organic cleaning products.
 The housing can be cleaned with standard cleaning agents.
3

Open the clock

 Remove all four screws on one clock side from the case ring. Pull case ring with glass cover and
dial from the clock's cabinet. Disconnect electrical terminals from clock movement.
 To avoid damaging fluorescent-tube, remove before mounting the clock.
4.

Mounting types

single sided (E)
types
PLv.dm.R1.www.xxx.y.00
Legend: v
dm
www
xxx
y
zz
© MOBATIME
= illumination (0 = without, 1 = fluorescent, 2 = LED warm-white)
= nominal diameter (50, 60, 80 cm)
= movement code, refer the enclosed installation manual Pt. 5.
= dial
= cover glas (1 = mineral glas, 2 = impact protection)
= mounting type:
double-sided (WA, DA, SM, ZM)
type
PLv.dm.R2.www.xxx.y.zz
00 = wall mounting (E)
10 = wall mounting (WA), double-sided
20 = ceiling mounting (DA)
30 = lateral post mounting (SM)
40 = central post mounting (ZM)
