Extending Slide-out Room

1.
Level the unit.
NOTe: In the case of a motorized unit, ignition MUST be off to operate the slide-out.
2.
Remove the transit bars (if so equipped).
3.
Press and hold the IN/OUT switch (Fig. 1B) in the OUT position until the room is fully extended and
stops moving.
NOTe: It is important to continue to press the slide-out switch for a few seconds after the room is fully
extended until the motor shuts off. The control will sense that the room has stopped and will shut
off the motor after a few seconds.
4.
Release the switch, which will lock the room into position.

Retracting Slide-out Room

NOTe: In the case of a motorized unit, ignition MUST be off to operate the slide-out.
1.
Press and hold the IN/OUT switch (Fig. 1A) in the IN position until the room is fully retracted and stops
moving.
NOTe: It is important to continue to press the slide-out switch for a few seconds after the room is fully
retracted until the motor shuts off. The control will sense that the room has stopped and will shut
off the motor after a few seconds.
2.
Release the switch, which will lock the room into position.
3.
Install the transit bars (if so equipped).
Rev: 06.14.2016

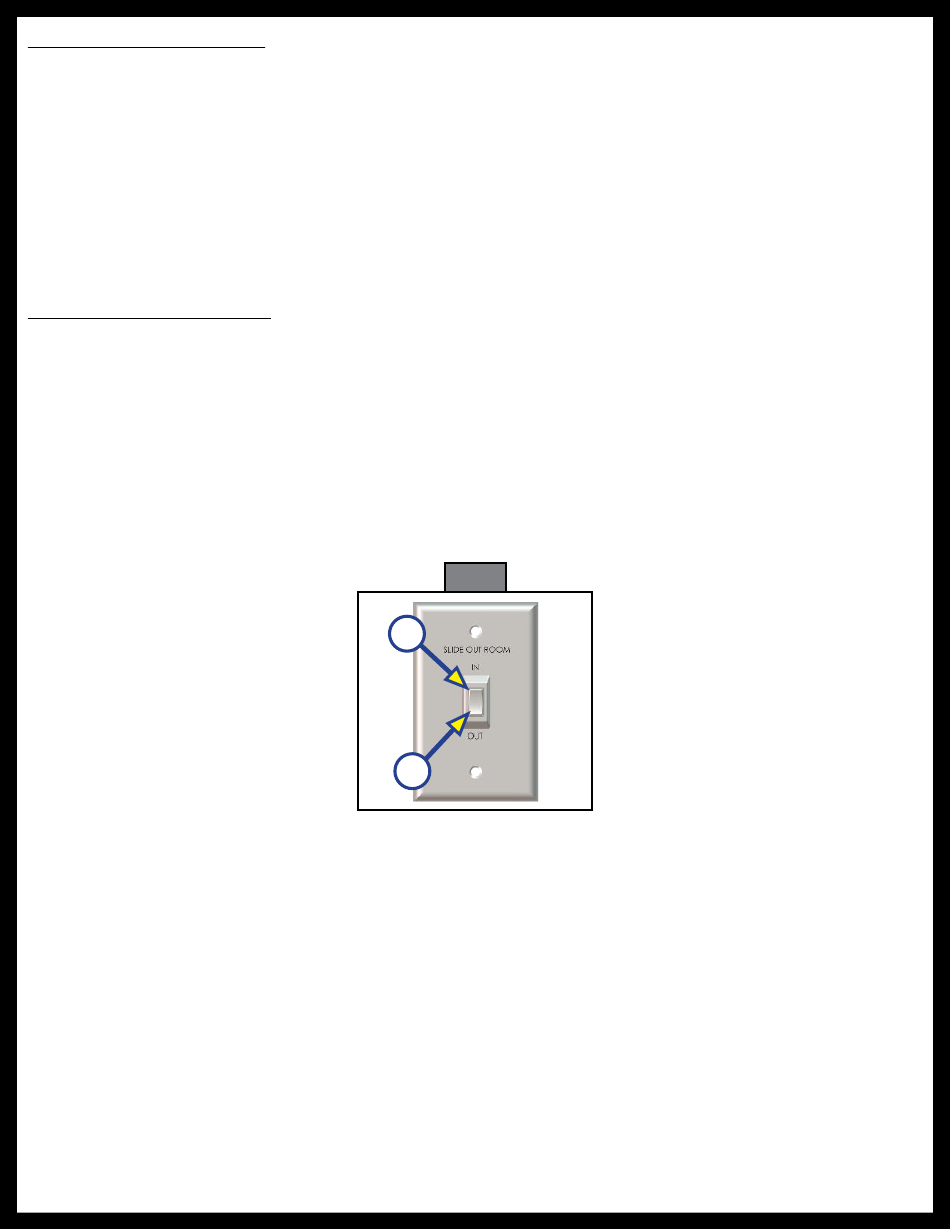

Fig. 1
A
B
Page 4
