Visual Inspections

Measurements

1. Measure from the outside edge of the column to the face of the gear rack (Fig. 18 and 19). The
standard measurement should be 2
fully extended and again when the room is 3" from fully retracted.
NOTe: For units with non-standard installations, contact the OEM for their specific measurements.
2. Measure the gear racks for parallel. There should be less than
measurements.
3.
Check for proper seal engagement (no binding, 1/4" nominal overlap).
4. Check for damage to gear rack.
Column
2.5" +/- .125"
(Standard)
Rev: 06.14.2016
1/2
" plus or minus

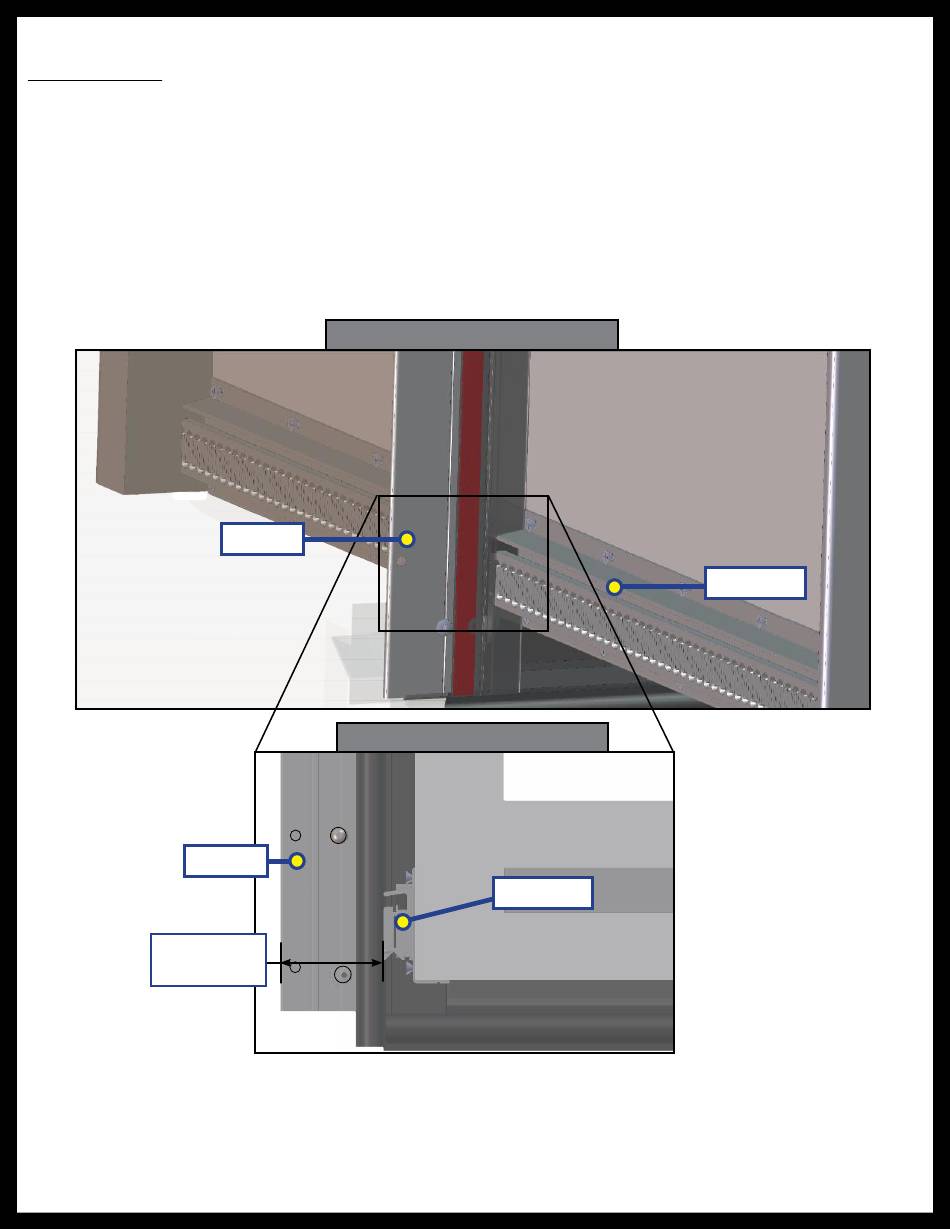

Fig. 18 - Gear Rack Measurements
Column
Fig. 19 - Column and Gear Rack
1/8
". Take this measurement when the room is
1/8
" difference between the parallel
Gear Rack
Page 9
Gear Rack
