quadient iX-5 Series Replacement Manual page 2

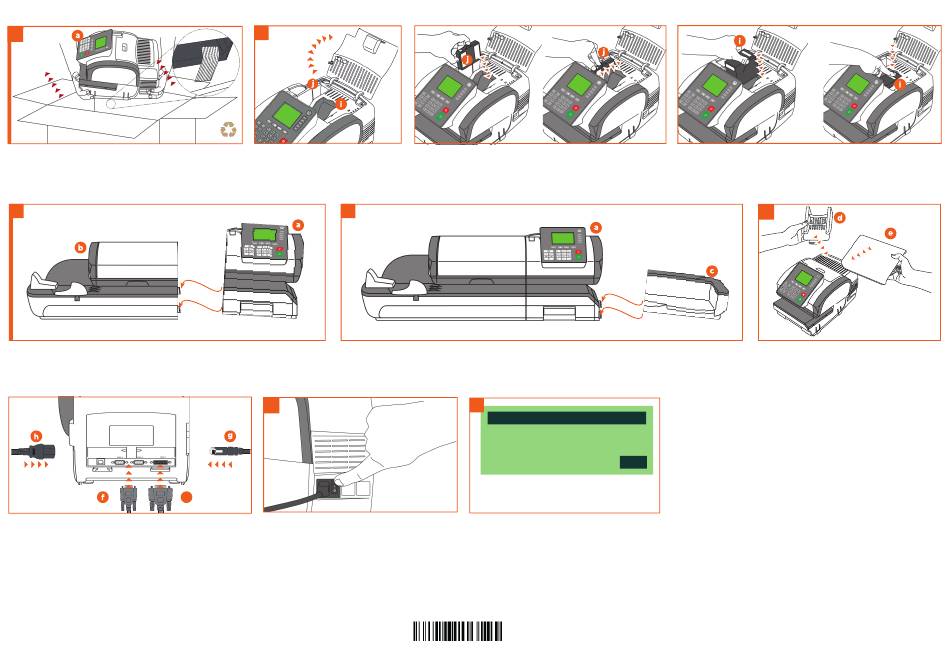

N2. Unpack your replacement
1 1
Remove replacement unit from box. Remove all transit tape and
packaging from the replacement machine. Place original unit back
into box ready for collection.
N5. Assembling the components
1
Attach the base (a) to the automatic feeder (b).
N6. Connect your Cables
k
Plug in the LAN cable (g), weighing platform cable (f), automatic
feeder cable (f) and power cable (h).
N3. Insert the Meter
2
Lift the cover of the machine to reveal the Place the meter
ink cartridge (i) and meter (j) bays. into position. Close the cover.
2
Attach the catch tray (c) to the base (a).
N7. Switch on the machine
1
Turn on the machine by pressing the power button.
A0155678/A - 27/03/2023
(j) into the meter bay and slide in until it fi ts securely
2
Swap base
This process allows you to
install your new base.
Next
Once the machine is switched on, follow the steps on
screen to complete the replacement procedure.
N4. Install the Cartridge
Insert the ink cartridge (i) at an angle into the machine with the 'TOP' and
'LOCK' stickers facing upwards. Push the ink cartridge
of the machine until you hear a 'click' - close the cover of the machine.
3
Install the shelf (d) and the weighing platform
on the machine.
Congratulations
Your machine is
ready to use!
(i) towards the back
(e)
