HP Smart Array E200i Controller battery cable

To remove the component:
Power down the server blade (on page 28).
1.
Remove the server blade (on page 28).
2.
Remove the access panel
3.
Remove the HP Smart Array E200i Controller battery
4.
page 38).

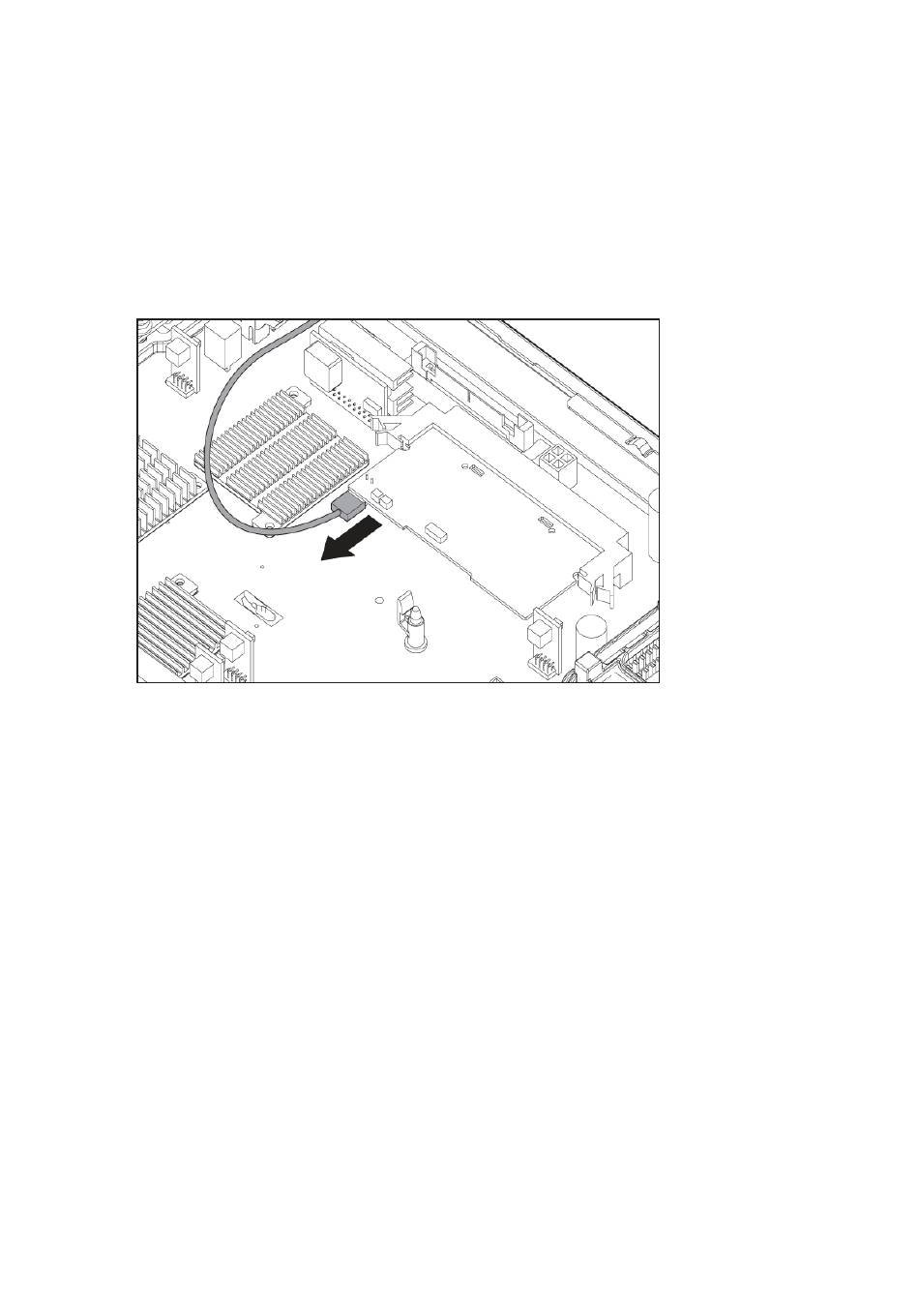

Disconnect the battery cable from the cache module.
5.
To replace the component, reverse the removal procedure.

HP Smart Array E200i Controller cache module

To remove the component:
Power down the server blade (on page 28).
1.
Remove the server blade (on page 28).
2.
Remove the access panel
3.
All manuals and user guides at all-guides.com
("Access panel" on page 29).
("Access panel" on page 29).
("HP Smart Array E200i Controller
Removal and replacement procedures 39
