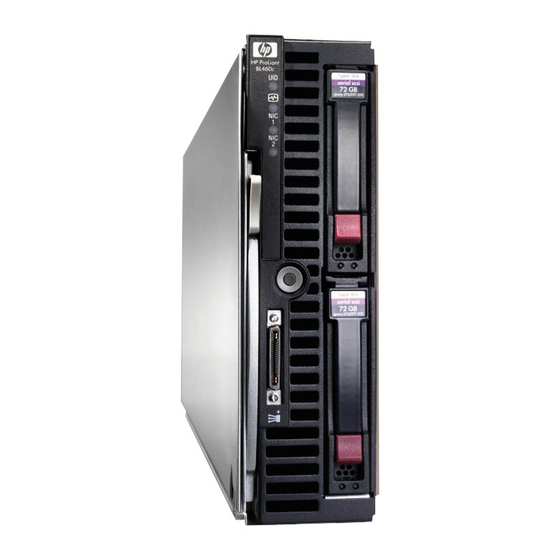

HP ProLiant BL460c Quickspecs

HP ProLiant BL460c Quickspecs

Server blade
Hide thumbs Also See for ProLiant BL460c:

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Quickspecs
QuickSpecs
Overview
1. Access Panel
2. Up to two Intel® Xeon® 5000 Sequence processors
3. Small form factor (SFF) hot-plug drive bays (standard BTO
models)
4. Local I/O connector
At A Glance
At A Glance
At A Glance
At A Glance
This document covers the HP ProLiant BL460c server blade only. For more information on HP BladeSystems c-Class Infrastructure
and HP BladeSystem c-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem c-Class Enclosures QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html
HP BladeSystem c-Class Interconnect Components QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12524_na/12524_na.html
The HP ProLiant BL460c provides greater 2P x86 server blade density without compromise and maximum power-efficiency with
flexibility and choice.
HP ProLiant BL460c Server Blade
HP ProLiant BL460c Server Blade
HP ProLiant BL460c Server Blade
HP ProLiant BL460c Server Blade
DA - 12518
North America — Version 41 — February 16, 2010
HP ProLiant BL460c Server Blade
HP ProLiant BL460c Server Blade
HP ProLiant BL460c Server Blade
HP ProLiant BL460c Server Blade
5. Eight (8) PC2-5300, Fully Buffered DIMMs (DDR2-667)
Memory Slots
6. HP Smart Array E200i Controller with optional battery-
backed write cache (standard BTO models)
7. Two Mezzanine slots
8. Internal USB Connector (standard BTO models)
Page 1

Advertisement

loading

Related Manuals for HP ProLiant BL460c

Summary of Contents for HP ProLiant BL460c

  • Page 1 At A Glance At A Glance This document covers the HP ProLiant BL460c server blade only. For more information on HP BladeSystems c-Class Infrastructure and HP BladeSystem c-Class Interconnect Components, please see the following QuickSpecs: HP BladeSystem c-Class Enclosures QuickSpecs: HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html...
  • Page 2 Storage Controller: Storage Controller: Storage Controller: Integrated HP Smart Array E200i RAID controller with 64 MB cache (with optional battery-backed write-cache with an upgrade to 128 MB cache in standard BTO models. Supports RAID 0,1 in standard BTO models NOTE:...
  • Page 3 The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 16 ProLiant BL460c servers plugged vertically. The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 8 HP ProLiant BL460c servers plugged horizontally. The HP BladeSystem c3000 tower enclosure is designed with casters for sites without racks and holds up to 8 HP ProLiant BL460c servers plugged vertically.

  • Page 4: Standard Features

    QuickSpecs HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade Standard Features NOTE: NOTE: NOTE: NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/erc/downloads/4AA0-6087enw.pdf.
  • Page 5 BL460c is configured to connect to and boot from the iSCSI target disk on the network and download the OS image from the iSCSI target disk. The iSCSI boot option ROM is supplied by HP at no cost. The additional cost and mezzanine slot usage of an add-in iSCSI HBA card is not required.
  • Page 6 Two I/O expansion mezzanine slots (one x8 and one x4) Integrated Manageability Integrated Manageability Integrated Manageability Integrated Manageability HP ProLiant Onboard Administrator (includes but not limited to functionality in Integrated Lights-Out 2 (iLO 2) Standard Blade Edition (integrated on motherboard) Storage Controller Storage Controller...
  • Page 7 Compatible SAN Compatible SAN HP ProLiant BL460c server blades are optimized for HP StorageWorks MSA, EVA and XP HP ProLiant 460c server blades are compatible with select 3rd party SANs (please see blade storage page for more details: http://h18004.www1.hp.com/products/blades/components/c-class-sans.html HP Virtual Connect...
  • Page 8 Citrix XenServer NOTE: NOTE: NOTE: NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/supportos. DA - 12518 North America —...
  • Page 9 Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection Two (2) embedded Gigabit Ethernet adapters for redundant LAN connections Two (2) hot-plug SAS/SATA drive bays and integrated RAID (HP Smart Array E200i) controller on every BTO model server blade (Battery-backed write cache is optional.)*...
  • Page 10 IT and business needs. The HP Care Pack service for HP ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
  • Page 11 HP ProLiant BL460c HP ProLiant BL460c HP ProLiant BL460c HP ProLiant BL460c Form Factor Form Factor Up to 8 half-height blades supported in HP BladeSystem c3000 Enclosure Form Factor Form Factor E5405 1G (1P) E5405 1G (1P) E5405 1G (1P)
  • Page 12 None Form Factor Form Factor Form Factor Form Factor Up to 8 half-height blades supported in HP BladeSystem c3000 Enclosure Up to 16 half-height blades supported in HP BladeSystem c7000 Enclosure S-Buy BL460c E5430 S-Buy BL460c E5430 S-Buy BL460c E5430...

  • Page 13: Configuration Information - Factory Integrated Models

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
  • Page 14 NOTE: NOTE: NOTE: Integrated HP Smart Array E200i RAID controller supporting RAID 0/1 Controller cache module selection is required for all blades that support hard disk drives. Select either the standard 64 MB module above or the optional 128 MB module below.

  • Page 15: Core Options

    467799-B21 NOTE: NOTE: NOTE: NOTE: The NC532m network adapter card is required for each server blade connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 3-4 (HP BladeSystem c3000 Enclosure) NOTE: NOTE: NOTE: NOTE: The NC532m requires a minimum of 2 GB of server memory...
  • Page 16 QuickSpecs HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade Core Options HP Processors HP Processors HP Processors HP Processors Quad-Core Process Option Kits Quad-Core Process Option Kits Quad-Core Process Option Kits Quad-Core Process Option Kits Intel®...
  • Page 17 SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-B21 HP 300GB 3G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 492620-B21 HP 146GB 6G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive...

  • Page 18: Additional Options

    HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical TC213AAE Support and Updates, Electronic HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 TC209A Technical Support and Updates HP Insight Control for Linux, Media pack (DVD) - No licenses included...
  • Page 19 The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
  • Page 20 NOTE: NOTE: NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
  • Page 21 Multiple advanced memory protection (AMP) modes are supported, based on FBDIMM population and RBSU selection. The server blade defaults to Advanced ECC HP ProLiant BL460c Server Blade (1P Model) HP ProLiant BL460c Server Blade (1P Model) HP ProLiant BL460c Server Blade (1P Model)
  • Page 22 QuickSpecs HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade Storage 2 x SFF SAS or SATA Hot Plug Hard Drives Hard Drives Hard Drives Hard Drives Hard Drives...
  • Page 23 QuickSpecs HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade Storage External Storage External Storage External Storage External Storage Quantity Quantity Quantity Quantity Position Position Position Position Supported Supported...

  • Page 24: Technical Specifications

    12790_na.html HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_na/ 12810_na.html To review typical system power ratings use the HP BladeSystem Power Sizer which is available via the online tool located at URL: http://www.hp.com/go/bladesystem/powercalculator System Inlet Temperature System Inlet Temperature System Inlet Temperature System Inlet Temperature Operating 10°...
  • Page 25 QuickSpecs HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade HP ProLiant BL460c Server Blade Technical Specifications HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_na/ 12790_na.html HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_na/ 12810_na.html HP Smart Array E200i...
  • Page 26 Intel Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
