QuickSpecs
Overview
HP ProLiant BL45p Generation 2 (G2) Server Blade
HP ProLiant BL45p Generation 2 (G2) Server Blade
HP ProLiant BL45p Generation 2 (G2) Server Blade
HP ProLiant BL45p Generation 2 (G2) Server Blade

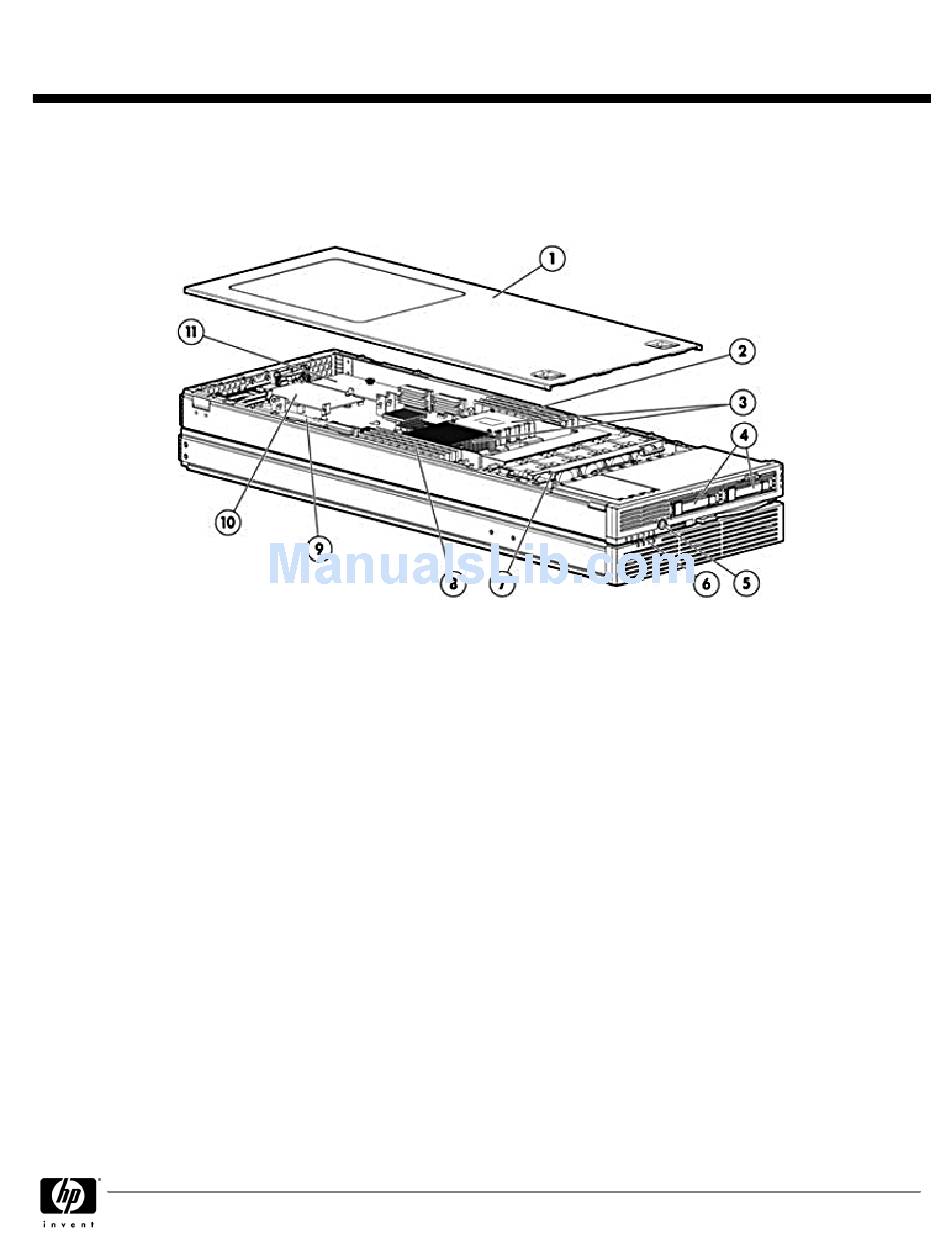

1. Primary Side Access Panel
2. Processor 3 Memory Banks E and F
3. Primary Side: Up to two AMD Opteron™ 8000 Series
processors (shown with Processor 1 installed, two additional
processors on Secondary Side)
4. Up to 2 small form factor (SFF) SAS or SATA hot-plug hard
disk drives (optional)
5. Power On/Standby Button
6. Front panel LEDs
Primary Side – HP ProLiant BL45p G2 Server Blade
Primary Side – HP ProLiant BL45p G2 Server Blade
Primary Side – HP ProLiant BL45p G2 Server Blade
Primary Side – HP ProLiant BL45p G2 Server Blade
DA - 12579
Canada — Version 9 — November 12, 2007
HP ProLiant BL45p Generation 2 (G2) Server Blade
HP ProLiant BL45p Generation 2 (G2) Server Blade
HP ProLiant BL45p Generation 2 (G2) Server Blade
HP ProLiant BL45p Generation 2 (G2) Server Blade
7. Redundant Fan Module
8. Processor 1 Memory Banks A and B
9. Smart Array E200i Controller cache module
10. Optional Dual Port Fibre Channel Adapter (QLogic-based or
Emulex-based)
11. Optional NIC Adapter (single function or multifunction
Gigabit)
Page 1
