HP ProLiant BL45p Quickspecs

Server blade
Hide thumbs Also See for ProLiant BL45p:

Advertisement

Quick Links

Download this manual See also: User Manual
QuickSpecs
Overview

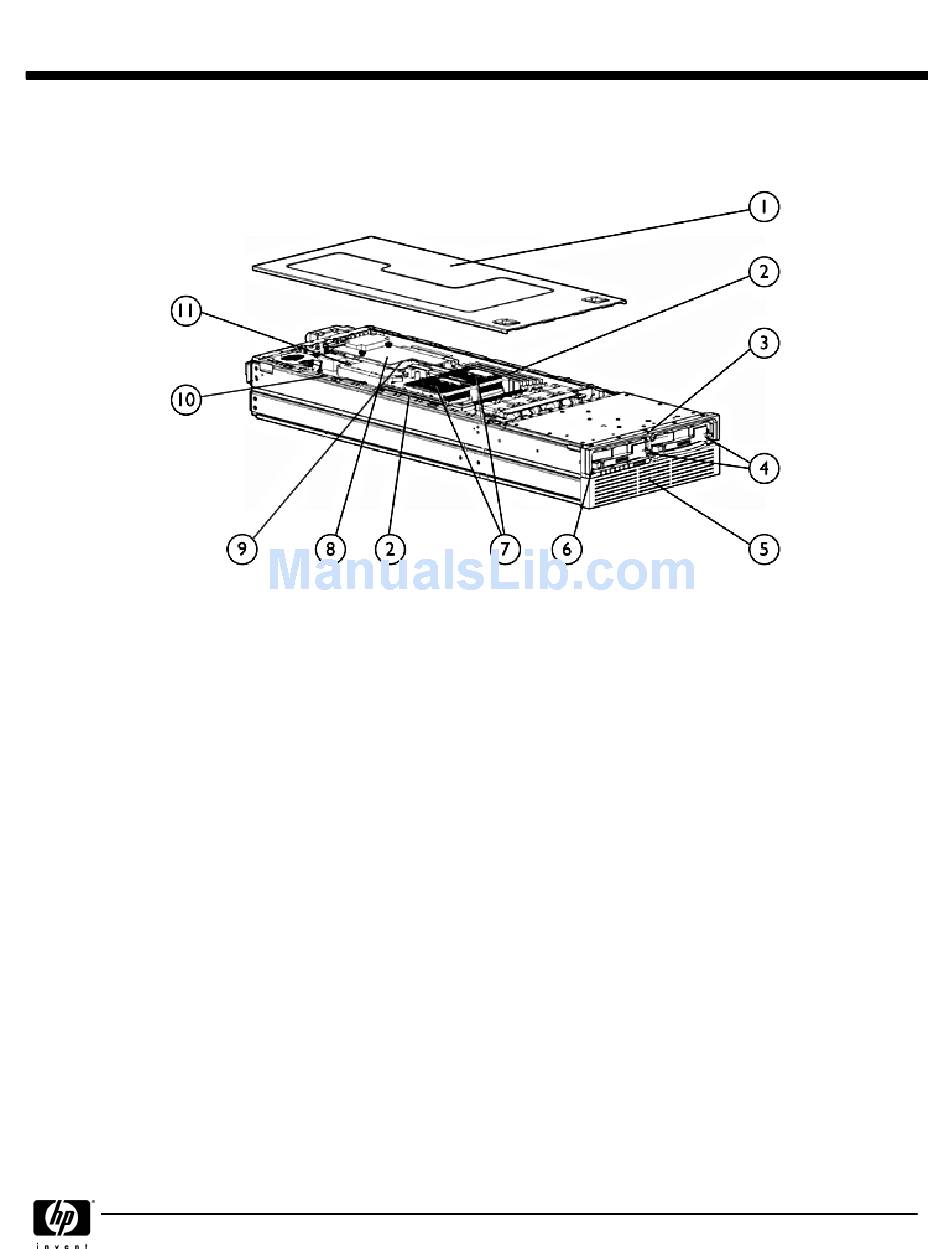

1. Access Panel
2. Memory banks 1 and 2 (4 DIMM slots per bank, 8 total
DIMM slots) for Processors 1 and 2 on primary side
3. Power On/Standby button
4. Up to two U320 hot-plug hard disk drives (optional)
5. Secondary Side - HP ProLiant BL45p
6. Front panel LEDs
Primary Side - HP ProLiant BL45p Server Blade
Primary Side - HP ProLiant BL45p Server Blade
Primary Side - HP ProLiant BL45p Server Blade
Primary Side - HP ProLiant BL45p Server Blade
Secondary Side - HP ProLiant BL45p Server Blade
Secondary Side - HP ProLiant BL45p Server Blade
Secondary Side - HP ProLiant BL45p Server Blade
Secondary Side - HP ProLiant BL45p Server Blade
DA - 12323
Worldwide — Version 15 — November 17, 2006
HP ProLiant BL45p Server Blade
HP ProLiant BL45p Server Blade
HP ProLiant BL45p Server Blade
HP ProLiant BL45p Server Blade
7. Up to two single- or dual-core AMD Opteron™ 800 series
processors on primary side
8. Dual port Fibre Channel Adapter (optional)
9. PCI-X Gigabit NIC Mezzanine Card (contains two NC7781
single port Gigabit NICs)
10. Smart Array 6i Controller
11. Smart Array 6i Battery-Backed Write Cache Enabler (optional)
Page 1

Advertisement

loading

Related Manuals for HP ProLiant BL45p

Summary of Contents for HP ProLiant BL45p

  • Page 1 HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade Overview Primary Side - HP ProLiant BL45p Server Blade Primary Side - HP ProLiant BL45p Server Blade Primary Side - HP ProLiant BL45p Server Blade Primary Side - HP ProLiant BL45p Server Blade 1.

  • Page 2: What's New

    Up to four AMD Opteron™ processors Model 885 (2.6 GHz) 1MB L2 cache per core/2MB L2 cache total 1 GHz HyperTransport Support for HP Control Tower BladeSystem p-class Management Software DA - 12323 Worldwide — Version 15 — November 17, 2006...
  • Page 3 At A Glance At A Glance This document covers the HP ProLiant BL45p server blade only. For more information on HP BladeSystems p-Class Infrastructure and HP BladeSystem p-Class Interconnect Components, please see the following QuickSpecs: HP BladeSystem p-Class Infrastructure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.HTML...

  • Page 4: Standard Features

    NOTE: NOTE: NOTE: Memory must be installed in pairs. NOTE: NOTE: NOTE: NOTE: PC2700 and PC3200 memory should not be mixed within the server blade and is not an HP supported configuration. Network Controller Network Controller Network Controller Network Controller...
  • Page 5 Fiber Channel on the Fiber Channel on the Fiber Channel on the Fiber Channel on the Two optional fiber channel adapters are supported by the HP ProLiant BL45p. Both adapters are HP ProLiant BL45p server HP ProLiant BL45p server HP ProLiant BL45p server HP ProLiant BL45p server mezzanine circuit boards which connect directly to the server blade system board.
  • Page 6 Compatible SAN HSG80 (MA8000, EMA12000, EMA16000); EVA5000; EVA3000; XP48, XP128, XP512, XP1024; HP StorageWorks Modular Smart Array 1000 and 1500 HP ProLiant BL45p server blades are compatible with select 3rd party SANs (please see blade storage page for more details: http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/storage.html...
  • Page 7 OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: http://www.hp.com/servers/rdp.
  • Page 8 NOTE: For a complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos. NOTE: NOTE: NOTE: NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant BL p-Class, please see: http://h18004.www1.hp.com/support/files/server/us/family/model/5342.html. NOTE: NOTE: NOTE: NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
  • Page 9 Supported Software Supported Software VMware Virtualization Software Options Options Options Options NOTE: NOTE: For more information on HP's Certified and Supported HP ProLiant Servers, please visit the NOTE: NOTE: VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html Intelligent Manageability Intelligent Manageability Intelligent Manageability...
  • Page 10 Service and Support Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.
  • Page 11 Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of HP BladeSystem servers - and free customers IT support staff to focus on what they do best, their business.
  • Page 12 Optical Drive Optical Drive None Form Factor Form Factor Form Factor Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure HP ProLiant BL45p 2.6 HP ProLiant BL45p 2.6 HP ProLiant BL45p 2.6 HP ProLiant BL45p 2.6 Processor(s) Processor(s)
  • Page 13 Optical Drive Optical Drive None Form Factor Form Factor Form Factor Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure HP ProLiant BL45p 2.4 HP ProLiant BL45p 2.4 HP ProLiant BL45p 2.4 HP ProLiant BL45p 2.4 Processor(s) Processor(s)
  • Page 14 Optical Drive Optical Drive None Form Factor Form Factor Form Factor Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure HP ProLiant BL45p 2.0 HP ProLiant BL45p 2.0 HP ProLiant BL45p 2.0 HP ProLiant BL45p 2.0 Processor(s) Processor(s)
  • Page 15 Up to 600GB maximum (with optional, U320 hard disk drives) Optical Drive Optical Drive Optical Drive Optical Drive None Form Factor Form Factor Form Factor Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure DA - 12323 Worldwide — Version 15 — November 17, 2006 Page 15...
  • Page 16 NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact. NOTE: NOTE: NOTE: NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis. NOTE: NOTE: NOTE: NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
  • Page 17 Multifunction Network Adapter. HP ProLiant BL25/35/45p NIC Mezz FIO Base 382850-B21 NOTE: NOTE: NOTE: NOTE: HP ProLiant BL25p/35/45p NIC Mezz contains two (2) NC7781 single port Gigabit NICs. Or upgrade to: HP ProLiant BL25p/35p/45p Dual NC370i Multifunction Network Adapter 384043-B21 NOTE:...
  • Page 18 NOTE: NOTE: NOTE: NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation. NOTE: NOTE: NOTE: NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.
  • Page 19 NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials. HP Control Tower HP Control Tower HP Control Tower HP Control Tower HP Control Tower for HP BladeSystem, Single Server License. No media included. 412957-B21 BladeSystem p-class BladeSystem p-class BladeSystem p-class BladeSystem p-class...
  • Page 20 HP 36GB U320 15K Universal HDD 286776-B22 Communications Communications Communications Communications HP ProLiant BL25/35/45p Dual NC370i Multifunction Network Adapter 384043-B21 NOTE: NOTE: NOTE: NOTE: Accelerated iSCSI is not yet supported for Linux environments; RDMA and iSCSI boot is not yet supported for Windows or Linux environments. Future support is planned for all of these features.
  • Page 21 NOTE: NOTE: NOTE: The Diagnostic Station allows access to the HP ProLiant p-Class server blades and the BL p-Class interconnect switch outside of the server blade enclosure. The option provides power and a data interface so that "offline" upgrade and diagnostic functions may be performed.
  • Page 22 T2798AA#001 HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription T2798AA#003 HP Serviceguard for Linux, A.11.16 for SUSE SLES 9 & 10 and Red Hat 3 & 4 (single 307754-B26 license version) HP Serviceguard for Linux ProLiant Cluster, A.11.16 (for SUSE SLES 9 & 10 and Red 305199-B26 Hat EL 3 &...
  • Page 23 AF011A HP Rack 10636 G2 (36U) Cabinet - Shock Pallet AF012A HP Rack 10636 G2 (36U) Cabinet - Crate AF013A HP 10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet* AF014A NOTE: NOTE: NOTE: NOTE: Please see the Rack 10000 G2 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color: http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML...
  • Page 24 QuickSpecs HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade Options Monitors and Keyboards Monitors and Keyboards Monitors and Keyboards Monitors and Keyboards TFT7210R Rack Mounted 17" Monitor 348373-B21...
  • Page 25 HP KVM Switch Options HP KVM Switch Options HP KVM Switch Options HP KVM Switch Options HP BladeSystem CAT5 KVM Interface Adapter - 1 pack AF100A HP KVM CAT5 0x1x8 Server Console 336044-B21 HP KVM CAT5 0x2x16 Server Console Switch...
  • Page 26 Service and Support Service and Support NOTE: NOTE: NOTE: NOTE: The HP Care Pack service part numbers below for HP BladeSystem p-Class Offerings Offerings Offerings Offerings (HP Care Pack server blades, cover the server blade and all HP branded hardware options qualified Services) for the server, purchased at the same time or afterwards, internal to the server.
  • Page 27 QuickSpecs HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade Options HP ProLiant Essentials Vulnerability and Patch Management Pack Installation and UC929E Startup Service. (Electronic) NOTE: NOTE: NOTE: NOTE: Service coverage: onsite installation of the Vulnerability and Patch...
  • Page 28 HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade Memory HP ProLiant BL45p Server Blade (2P Models) HP ProLiant BL45p Server Blade (2P Models) HP ProLiant BL45p Server Blade (2P Models) HP ProLiant BL45p Server Blade (2P Models)
  • Page 29 376639-B21 1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB) 376638-B21 HP ProLiant BL45p Server Blade (1P Model) HP ProLiant BL45p Server Blade (1P Model) HP ProLiant BL45p Server Blade (1P Model) HP ProLiant BL45p Server Blade (1P Model)
  • Page 30 HP ProLiant BL45p Server Blade HP ProLiant BL45p Server Blade Memory Following are memory options available from HP: 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB) 395409-B21 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)

  • Page 31: Technical Specifications

    Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
