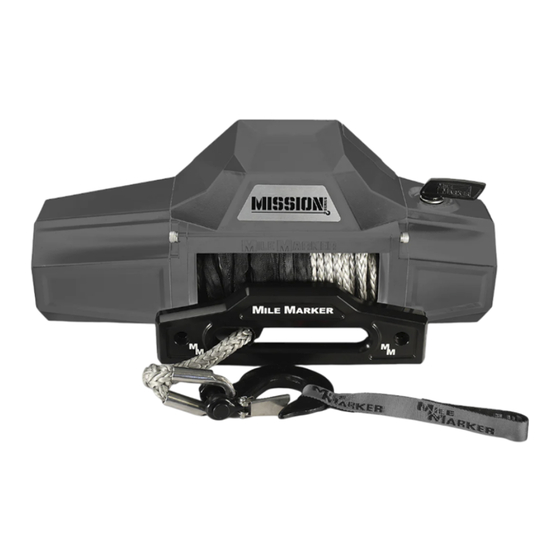

- Page 1 Installation & Operator’s Manual MS12 78-53251 12,000 lbs. (SYNTHETIC ROPE) MS10 78-53246 10,000 lbs. (SYNTHETIC ROPE) 78-53141 8,000 lbs. (SYNTHETIC ROPE)
-
Page 2: Safety Warnings
SAFETY WARNINGS LEARN TO USE YOUR MILE MARKER WINCH: After winch has been installed, take some time and practice using it so you will be familiar with all operations. Periodically check the winch installation to ensure that all bolts are tight. To ensure proper operation, carefully inspect for any damaged parts before operating the winch. - Page 3 PRECAUTIONS Keeps hands and body away from roller or hawse fairlead (steel cable/synthetic rope intake slot) when operating. Secure vehicle in position before using winch. Do not exceed winch load weight capacity. Be certain winch is properly bolted to a structure (or vehicle) that can hold the winch load. Always use proper couplings when connecting winch steel cable/synthetic rope hook to load.
-
Page 4: Getting Started
(gear housing end, drum, and motor end) are in proper alignment. 1. If necessary, drill four mounting holes (10mm in dia.), in a 10” x 4.5” pattern; Mile Marker can furnish you with a drilling template. 2. Fasten the winch body to the mounting platform using the four screws, washers and spring washers (see parts breakdown & assembly for each winch) provided 3. -
Page 5: Wiring Instructions
WIRING INSTRUCTIONS Wiring the Control Box 1. Slip the boots onto pertinent cables and make electrical connection in accordance with the schematic on following page. Slide the boots onto all the electrical connections made (Fig. 2-12 through 2-14). 2. Run battery power cables carefully under hood of vehicle, avoiding interference with moving parts and abrasion points which could potentially cause electrical short. -
Page 6: Winch Operation
CAUTION: Before using your new Mile Marker electric winch, rewind the entire steel cable/synthetic rope on the drum under a load of at least 500 lbs (227 kg) starting with at least 5 wraps of steel cable, or 10 wraps of synthetic rope on the initial layer. Failure to do so will result in the outer wraps pressing against the inner wraps, damaging the steel cable/synthetic rope. -
Page 7: Winching Tips & Techniques
Safety Tips •DO NOT DISENGAGE CLUTCH LEVER WHEN THERE IS A LOAD ON THE WINCH. Mile Marker electric winches utilize an automatic load holding brake, therefore no adjustment to clutch is needed to maintain load. - Page 8 Self Recovery 1. Always attempt to get the steel cable/synthetic rope as straight as possible to the direction of the vehicle. It is acceptable to start a pull at an angle if it is obvious that the vehicle will turn towards the hook anchoring point. Turning the steering wheel will assist the process. It is recommended that the driver is in the vehicle.
-
Page 9: Winch Maintenance
WINCH MAINTENANCE • All internal moving parts within the electric winch have been lubricated using high temperature lithium grease at the factory. No further internal lubrication is required for the life of the winch. •If using steel cable, lubricate the steel cable periodically using light penetrating oil. •... - Page 10 WINCH FEATURES & SPECS Synthetic Rope 78-53251 Synthetic Rope 78-53246 SPECIFICATIONS (12K): SPECIFICATIONS (10K): Rated Line Pull 12000 lbs (5443 kg) Rated Line Pull 10000 lbs (4536 kg) Gear Train 3 Stage planetary Gear Train 3 Stage planetary Gear Ratio 294:1 Gear Ratio 210:1...
- Page 11 WINCH FEATURES & SPECS FEATURES: • Modern and customizable look (over 10 OEM colors and 4 other designs!) • Available in 8, 10, and 12K capacities • Fully Submersible • Automatic load holding/ low friction brake • Rugged heavy-duty solenoid •...
- Page 12 PARTS BREAKDOWN & ASSEMBLY 2121 Blount Road Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647 PAGE 11...
- Page 13 PARTS BREAKDOWN & ASSEMBLY PAGE 12 2121 Blount Road Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647...
- Page 14 PARTS BREAKDOWN & ASSEMBLY 2121 Blount Road Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647 PAGE 13...
-
Page 15: Warranty
Warranty registration must be submitted at MileMarker.com/warranty within 30 days of purchase by the end user. If you discover a hidden defect, Mile Marker Industries, Inc. will, as its option, repair or replace the product or necessary replacement parts at no charge to you, if you return it prepaid to Mile Marker Industries, Inc. at 2121 Blount Road Pompano Beach, FL 33069.
