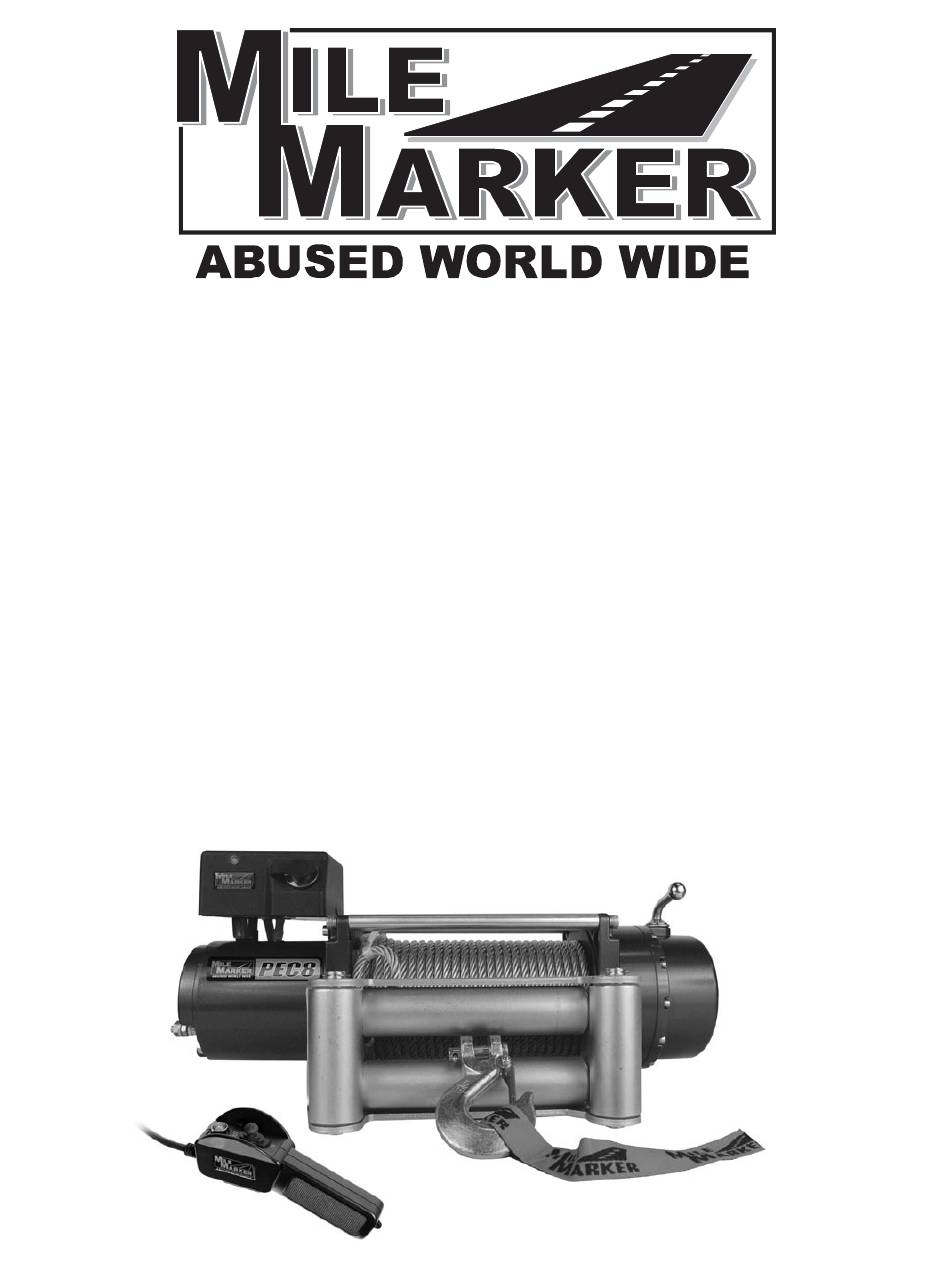

- Page 1 2121 Blount Road Pompano Beach, FL 33069 1-(800)-886-8647 1-(954)-782-0604 • www.milemarker.com Installation and Operator’s Manual: Electric Winch System: PEC8 (PN 77-50140)
-
Page 2: Table Of Contents
Table of Contents: Safety Warnings & Precautions......3 Winching Tips & Techniques.......6 Getting Started: Unpacking Your Winch......8 Winch Mounting........8 Control Box Installation........9 Winch Operation..........12 Maintenance...........14 Troubleshooting..........14 Parts Lists.............15 Warranty............17... -
Page 3: Safety Warnings & Precautions
NEVER HOOK THE ROPE BACK ONTO IT- ing. Any substitute must be IDENTICAL in strength, quality, lay and stranding to the Mile Marker cable SELF: originally supplied. Hooking the rope back onto itself creates an exces- sive strain that could break individual strands;... - Page 4 Safety Warnings-Cont’d When using this winch, safety precautions should always be followed to reduce the risk of personal injury and damage to the winch. DO NOT OVERLOAD: STAY ALERT: For your safety and efficient performance, always Watch what you are doing. Use your common use this winch at or under its rated capacity for your sense.
- Page 5 Precautions When using this winch, safety precautions should always be followed to reduce the risk of personal injury and damage to the winch. Do not apply load to winch when cable is ful- Keeps hands and body away from Fairlead ly extended.
-
Page 6: Winching Tips & Techniques
•NEVER DISENGAGE CLUTCH LEVER WHEN THERE IS attachment of a tow strap or winch cable. Warning: Never A LOAD ON THE WINCH. Mile Marker electric winches use a ball and /or ball mount as an anchor point for tow utilize an automatic load holding brake, therefore no strap or winch cable. - Page 7 A frayed cable with broken strands should and second is secured to an anchor point. be replaced immediately. Always replace the cable with a Mile Marker recommended replacement part. Any substitution must be IDENTICAL in strength, quality, lay and stranding. Never hook the cable back onto itself.
-
Page 8: Getting Started
If you find any missing or broken parts, please the mounting platform is strong enough to meet call Mile Marker as soon as possible at the number the maximum rated load of the winch in use. Mile present on the cover page of this manual. -
Page 9: Control Box Installation
Your Mile Marker Control Box can either be mounted to the winch or in a remote location. How- ever, Mile Marker recommends you to mount it to the winch following the instructions below. If you choose to mount it in a remote location, please ensure that: (a) the location does not interfere with any vehicle’s... - Page 10 Reserve for last step of installation. 2-9: Complete Wiring Schematic: PEC8 2-6: Attach Tie Wrap 2-10: Place Cables and Replace Washer and Nut. Tighten with 14mm Wrench.
- Page 11 Control Box Installation Cont’d Winch Features and Specs: PEC8 Features: Clockable Clutch , Illuminated Controls, 2-11: Cover both stud connections with protective boots. Planetary Gear System, Automatic Load Holding Brake, FRP Sheath Protecting all Cables, Free Spool- ing, Power In & Power Out, Low Electric Current, Gal-...
-
Page 12: Winch Operation
(self recovery) or vehicle being recov- ered. All Mile Marker winches are equipped with a Clutch 3. Fully Engage the clutch by moving the Clutch Le- Lever that engages / disengages the clutch. Clutch, ver to Engage Position (Fig. 3-1 and Fig. 3-2). - Page 13 Winch Operation: For All Solenoid Controlled Winches 3-3: Match Notch and Plug In 3-7: Remote Control Function Diagram 3-4: Tighten Thread Lock 3-8: Toggle Down: Power in, “Green” LED 3-5: Rotate Orange Kill Switch from “OFF” position..BLUE 3-9: Toggle Down: Power out “Red” LED (FOR INTERMITTENT USE ONLY) 3-6: ..To “ON”...
-
Page 14: Maintenance
CAUTION: It is recommended that you replace the cable with superior Mile Marker cables. If replacing from other sources, carefully compare for the maximum load capacity of the cable with that mentioned in the Specifications Section of this manual. -
Page 15: Parts Lists
Control Box Assembly Complete Assembly Part Number: 93-50202 Item Quantity Description Item Quantity Description Screw M6X12 Housing Mount Bracket Rubber Cover Spring Washer 6 Female Connector Nut M6 Bottom Plate LED Holder Black Long Cable Case Blue Short Cable Terminal Boot Wire Yellow Short Cable Solenoid... - Page 16 Parts Breakdown & Assembly...
-
Page 17: Warranty
Mile Marker Inc. electric winch limited 2-year warranty Mile Marker, Inc. offers a limited two (2) year warranty to the original retail purchaser for each new Mile Marker electric winch, used as a recreational recovery winch only, against manufacturing defects in workmanship and materials on all mechanical components. Electrical components consisting of motors, solenoids, wiring, wire connectors and associated parts have a limited one (1) year warranty. - Page 18 Limited 2-Year Electric Winch Warranty WARRANTY PROCEDURE AMENDMENT This is to clarify for our Distributors and Dealers as to how Mile Marker will satisfy warranty claims. There are two methods in effect at this time: 1.The end user can deal directly with Mile Marker by calling 1-800-886-8647. Our customer service representatives will work to resolve any warranty issues.
- Page 19 Do you belong to any 4-Wheel drive club? Yes or No If so, what is the Club name:___________________________________________________________________ What factors most influenced the purchase of your Mile Marker product? (Check all that apply) Mile Marker reputation Previous experience with Mile Marker Inc.
- Page 20 MILE MARKER INCORPORATED 2121 BLOUNT ROAD 800.886.8647 TOLL FREE POMPANO BEACH, FL 33069 USA 954.782.0604 USA & INT’L 954.782.0770 WWW.MILEMARKER.COM INFO@MILEMARKER.COM...
