- Page 1 _________ l � -' -------- - - Электрические счетчики однофазные Socomec Countis E15 и Countis E16 - руководство по эксплуатации. Юниджет Постоянная ссылка на страницу: https://www.uni-jet.com/catalog/sistemyi-kommutaczii,- kontrolya-i-zashhityi/schetchiki/socomec-countis-e10-e11-e12.html...
- Page 2 COUNTIS E15/E16 Single-phase energy meter Direct - 80 A M-BUS COUNTIS E15 COUNTIS E16 - MID www.socomec.com/ en/countis-e1x...
-
Page 3: Table Of Contents
..........26 COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 4: Documentation
1. DOCUMENTaTION All documentation on the COUNTIS E15/E16 is available online at: www.socomec.com/en/countis-e1x COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 5: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualiied professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. risk of electrocution, burns or explosion •... -
Page 6: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E16) - 1 Quick Start guide COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 7: Introduction

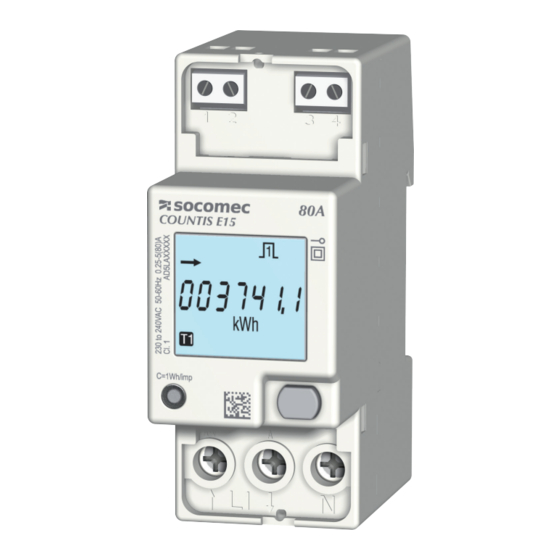

4.1. introducing the couNtis E15 / E16 The COUNTIS E15 and E16 are modular active and reactive electrical energy meters that display consumed energy. They are designed for single-phase networks and allow a direct connection of up to 80 A. They are equipped with an M-BUS communication Bus. -
Page 8: Lcd Display
7. Main zone 8. Unit of measure 9. Inductive value 10. Capacitive value 11. Partial meters. Flashing = partial meter has stopped 12. Tariff display 4.5. Dimensions Dimensions: in/mm 1.42 0.24 1.73 2.52 COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 9: Electrical Readings
Active, partial energy for each tariff (T1/T2) ● Partial active and reactive energy Ea, Er kWh, kvarh ● ● Miscellaneous ● Current tariff Partial meters START/STOP ● Active / inac- ● State of the pulse output tive COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 10: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DiN rail mounted The COUNTIS E15/E16 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 11: Connection
35 mm 0.47" / 12 mm 17.70 lb.in / 2 Nm max. 6.2. connection to the electrical network and to the loads The COUNTIS E15/E16 are intended for single-phase networks with neutral. m-Bus Pulse output 1: + 2: - Optocoupler pulse outputs... -
Page 12: Mid Compliance
The information provided via the M-BUS COM is transmitted for information only and has no legal value. • miD Declaration of conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e1x seal COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 13: Communication
2 primary and secondary addressing modes. You can conigure the primary and secondary addressing modes via the device's interface. 8.4. communication tables The communication tables and relevant notes are available online on the COUNTIS E15/E16 documentation page at: www.socomec.com/en/countis-e1x COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 14: Configuration
9. CONFIgUraTION The device can be conigured directly from the COUNTIS E15/E16 screen in programming mode or via the communication link. The paragraphs below describe coniguring using the screen. 9.1. Onscreen coniguration From the screen, go to programming mode to change your communication settings. How to browse through the... -
Page 15: View Of The Entire "Setup" Menu
Reset partial energy to zero: Ea+ partial (kWh) Tariff T1, T2 Ea+ partial (kWh) Ea- partial (kWh) Tariff T1, T2 Ea- partial (kWh) Er+ partial (kVarh) Back to irst screen of "SETUP" menu COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 16: Detailed View Of Menu "Setup
Baudrate 300, 600, 1200, 2400, 4800, 9600 reset energy Ea+ partial Tariff T1, T2; Ea+ par- tial; Ea- partial Tariff T1, T2; Ea- partial; Er+ partial; Back to irst screen of "SETUP" menu COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 17: Example: Setting The Communication Address
In "SETUP" mode (see page 14), go to the "APri primary address" screen Example: changing the communication address to 243. >3 x2<0.5 sec x2<0.5 sec x2<0.5 sec x2<0.5 sec secondary m-Bus address communication speed reset partial energy to zero COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 18: Use
Back to irst screen of Back to irst screen of "tot" Back to irst screen of "P.rt" Back to irst screen of "Tar." menu menu menu "InFO" menu XX = default value COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 19: Detailed View Of The Tariff Menu, "Tar.2
Imported reactive energy, tariff 1 Back to irst screen of "Tar." menu Exported reactive energy, tariff 1 Imported active energy, tariff 2 Exported active energy, tariff 2 Imported reactive energy, tariff 2 COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 20: Detailed View Of The Total Menu, "Tot
Total exported reactive energy Total apparent energy Total imported inductive reactive energy Back to irst screen of "tot" menu Total exported inductive reactive energy Total imported capacitive reactive energy Total exported capacitive reactive energy COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 21: Detailed View Of The Menu For Partial And Realtime Readings
Exported partial active energy for tariff T1 realtime current Exported partial active energy for tariff T2 realtime power factor Partial exported active energy Frequency Partial imported reactive energy Back to irst screen of "P. rt" menu COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 22: Starting Up The Partial Energy Meter
10.3.1. Starting up the partial energy meter >3 >3 10.3.2. Stopping the partial energy meter >3 >3 10.3.3. Resetting the partial energy meter to zero >3 >3 COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 23: Detailed View Of The Menu "Info
10.4. Detailed view of the menu "info" Metrological firmware version Non-metrological firmware version Checksum of metrological firmware Checksum of non-metrological firmware Installed communication port Back to irst screen of "info" menu COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 24: Diagnostics Messages
• If you see this message, the meter has malfunctioned and must be replaced. 12. aSSISTaNCE Causes Solutions Device not working Check the neutral and phase cable connections Error message Check the meter is working OK COUNTIS E15 / E16 - 545 871 A - SOCOMEC... -
Page 25: Characteristics
MID metering Bidirectional with single-phase 10 Wh, 10 varh Resolution ENErgy accuracy Class B (EN 50470-3) E16 Active energy Ea+ Class 1 (EN 62053-21) Reactive energy Er+ Class 2 (EN 62053-23) tariFF for Ea+ COUNTIS E15 / E16 - 545 871 A - SOCOMEC... - Page 26 Installation On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 205 g COUNTIS E15 / E16 - 545 871 A - SOCOMEC...
-
Page 27: Glossary Of Abbreviations
Setup menu APri. Primary M-BUS address ASEC. Secondary M-BUS address bAu. Communication speed in bauds (bits per second) Reset partial energy SAVE? Conirm selection Save and exit Exit without saving Continue without saving COUNTIS E15 / E16 - 545 871 A - SOCOMEC... - Page 28 COUNTIS E15 / E16 - 545 871 A - SOCOMEC...
- Page 29 Non-contractual document. © 2016, Socomec SAS. All rights reserved.
