Pulsar S108 Manual


Switch 10 ports
8 PoE ports 10/100 Mb/s (data and power supply)
2 ports 10/100 Mb/s (UP LINK)

Long Range mode (up to 250m)

30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (1K size)
1. Technical description
1.1. General description.

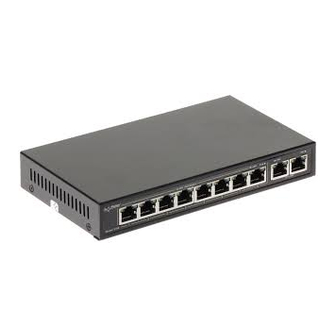

S108 is a 10-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch. The UP LINK
ports is used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation
status (description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
S108
v1.4

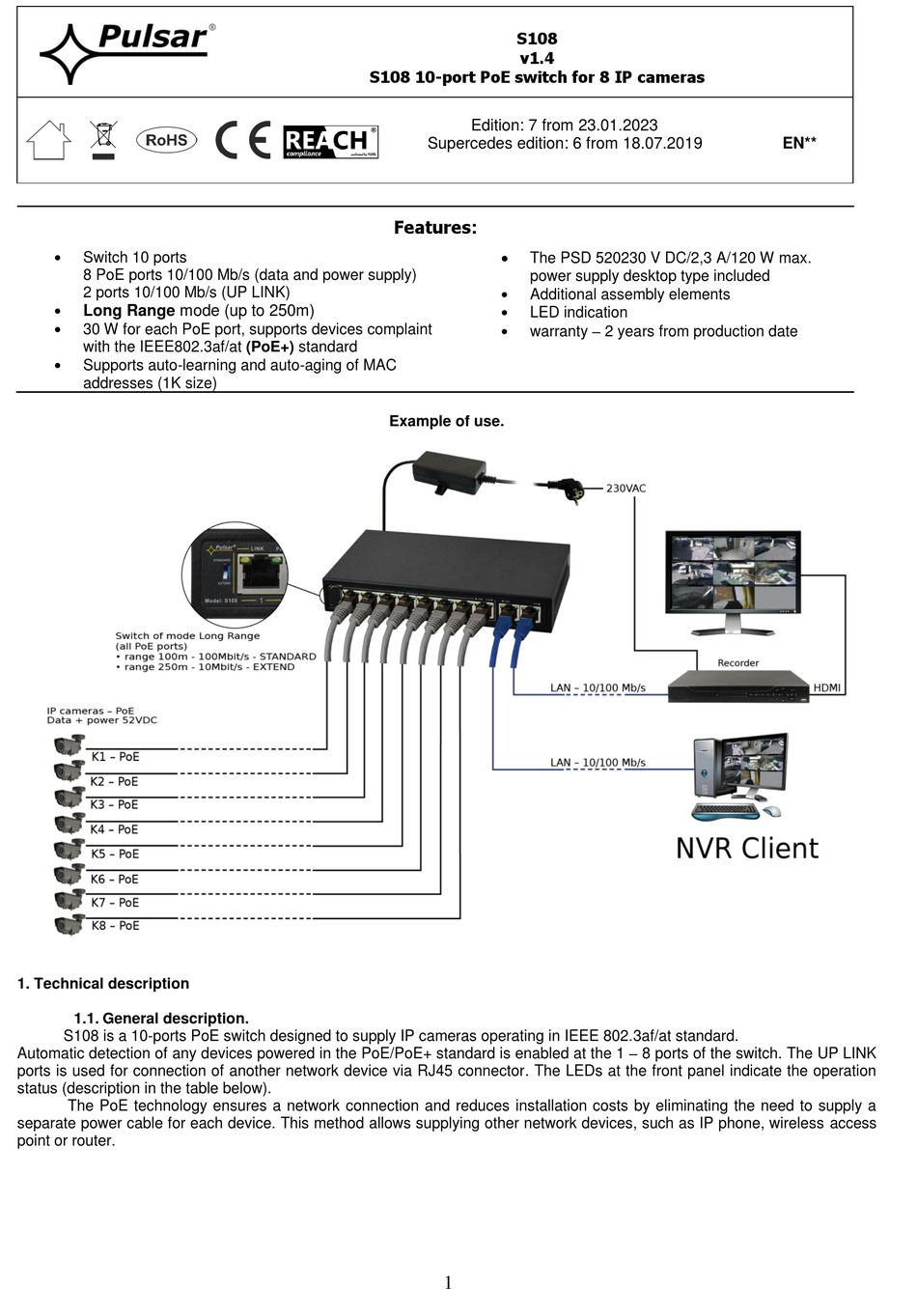

S108 10-port PoE switch for 8 IP cameras
Edition: 7 from 23.01.2023
Supercedes edition: 6 from 18.07.2019
Features
:

The PSD 520230 V DC/2,3 A/120 W max.
power supply desktop type included

Additional assembly elements

LED indication

warranty – 2 years from production date
Example of use.
1
