Pulsar S124WP Manual


Switch 24 ports
24 PoE ports 10/100 Mb/s (data and power supply)
2 ports 10/100/1000 Mb/s (G1/G2 ports) (UpLink)

Long Range mode (up to 250m)

30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (16K size)
1. Technical description
1.1. General description.

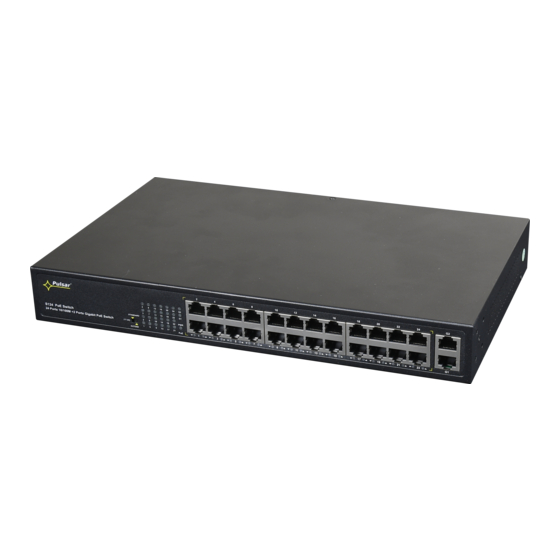

S124WP is a 24-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 24 ports of the switch.
The G1 and G2 ports is used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate
the operation status.
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
S124WP 24-port PoE switch for 24 IP cameras without power supply
Features

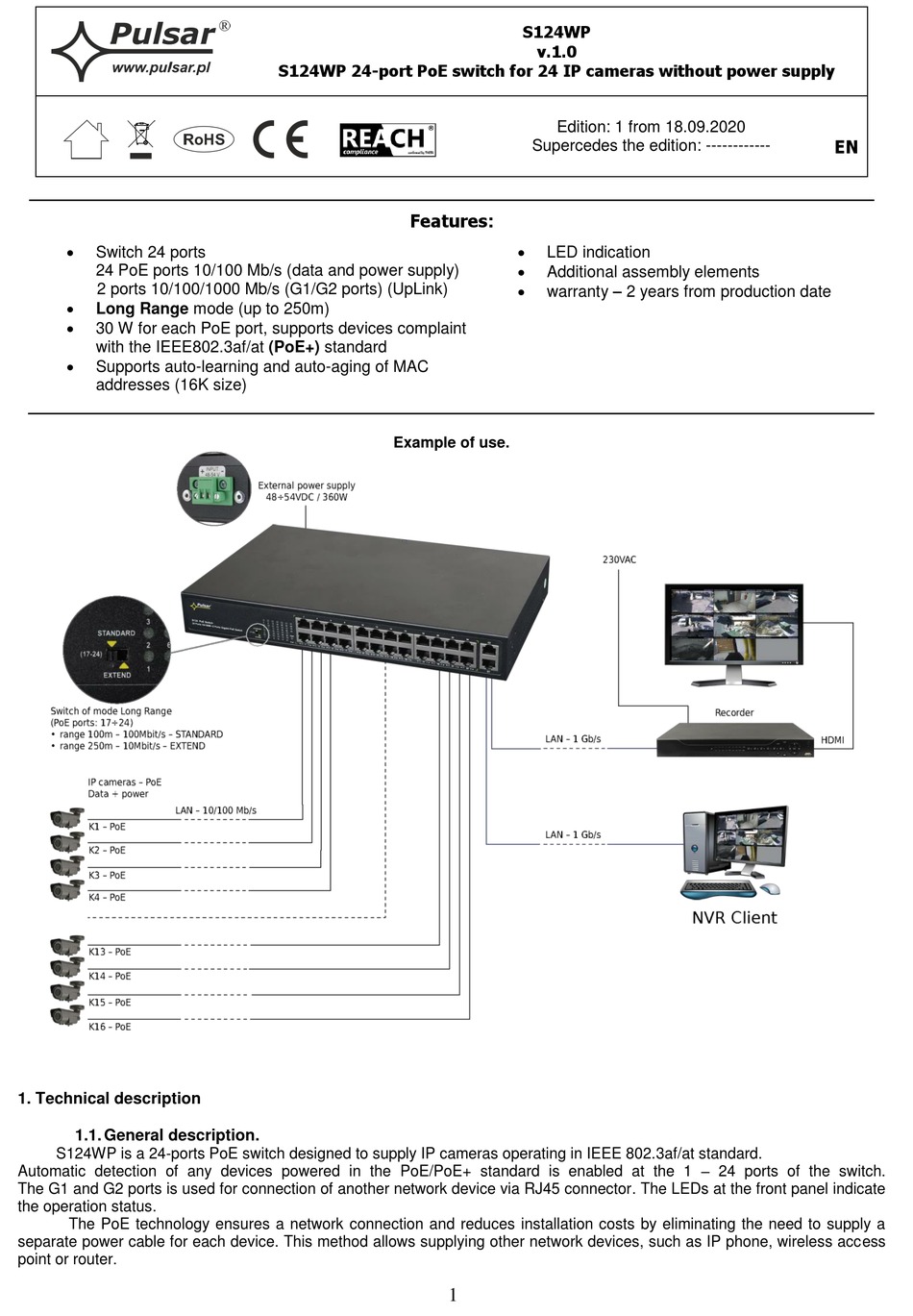

Example of use.
1
S124WP
v.1.0
Edition: 1 from 18.09.2020
Supercedes the edition: ------------
:

LED indication

Additional assembly elements

warranty – 2 years from production date
EN
