Switch 24 ports
24 PoE ports 10/100Mb/s (data and power supply)
2 ports 10/100/1000Mb/s (G1/G2 ports) (UpLink)
Long Range mode (up to 250m)
30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard
Supports auto-learning and auto-aging of MAC
addresses (16K size)
1. Technical description
1.1. General description.

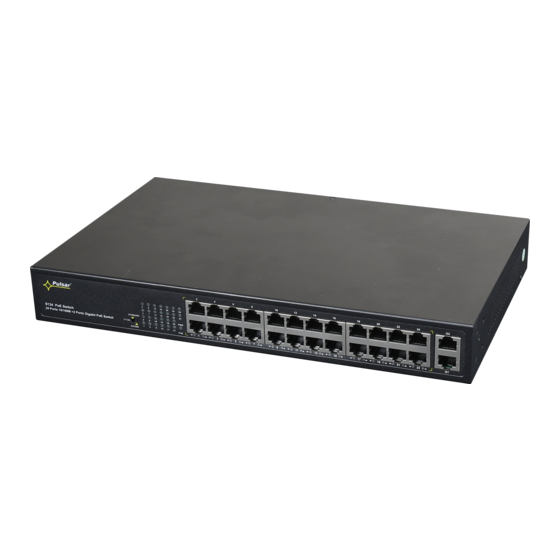

S124 is a 24-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch. The G1 and
G2 ports is used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate the
operation status.
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
S124
v.1.1
S124 24-ports switch for 24 IP cameras
Edition: 2 from 24.07.2019
Supercedes the edition: 1 from 06.06.2018
Features
:
LED indication
Additional assembly elements
warranty – 2 year from the production date

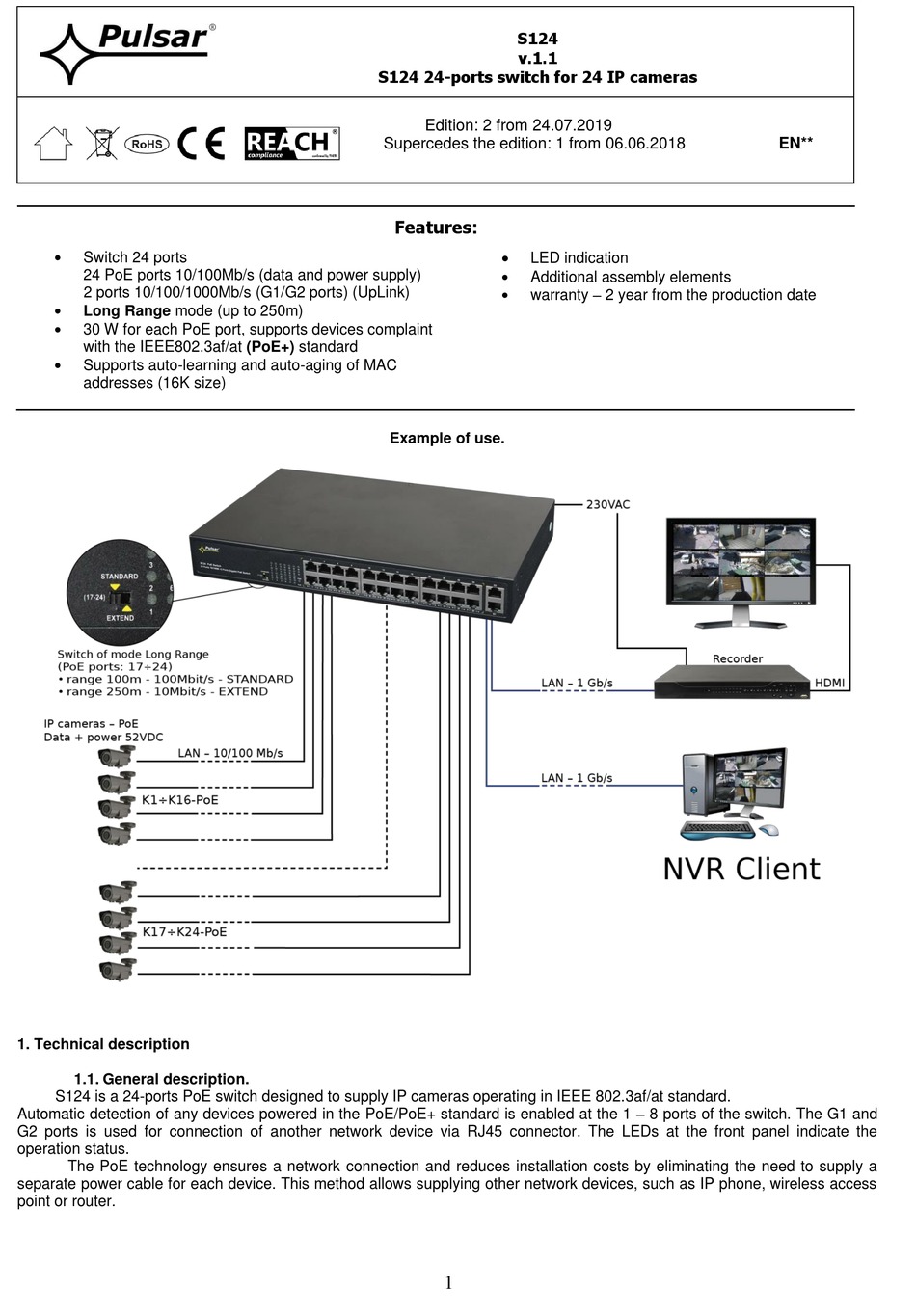

Example of use.
1
PL
EN**
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pulsar S124
Summary of Contents for Pulsar S124
- Page 1 1.1. General description. S124 is a 24-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch. The G1 and G2 ports is used for connection of another network device via RJ45 connector.
- Page 2 1.2 Block diagram. Fig. 1. Block diagram. 1.3 Description of components and connectors. Table 1. (See Fig. 2, 3 and 4) Component No. Description (Fig. 2) LED indication 24 x PoE ports (1÷24) 2 x UP LINK ports (G1, G2) Power Socket of the AC Switch of mode Long Range Fig.
- Page 3 The view of the switch . Fig. 4. 1.4 Technical parameters Table 2. 24 x PoE (10/100Mb/s) (RJ-45) Ports 2 x UpLink (10/100/1000Mb/s) (RJ-45) with connection speed auto-negotiation and MDI/MDIX Auto Cross) PoE power supply IEEE 802. 3af/at (1÷24 ports), 52V DC / 30W at each port * Operating modes Long Range, VLAN Protocols, Standards...
- Page 4 2. Installation 2.1. Requirements The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, without condensation) and temperature from -10°C to +40°C. Ensure the free flow of air around the unit.
- Page 5 Waste electrical and electronic equipment must not be disposed of with normal household waste. According to the European Union WEEE Directive, waste electrical and electronic equipment should be disposed of separately from normal household waste Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
