Summary of Contents for FRENCH FITNESS DHR80

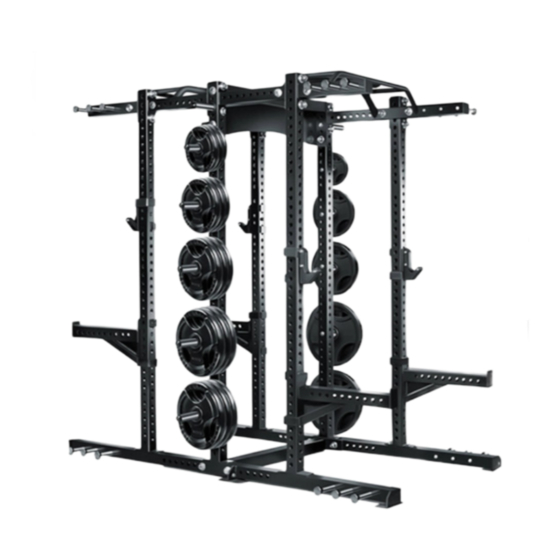

- Page 1 FF-DHR80 / FF-SHR80 ASSEMBLY MANUAL FRENCH FITNESS DHR80 FRENCH FITNESS SHR80 DOUBLE HALF RACK SINGLE HALF RACK...
- Page 2 FE AT U RE S • Steel Tubing: 3" x 3" x 3mm Thickness (75mm x 75mm x 3mm) • 11 Gauge Steel • Sturdy steel uprights • Laser cut holes • Laser cut numbers spaced at 2 hole intervals •...
- Page 3 ST E P 1 ( SHR80 AND D HR80) PART NO. DESCRIPTION PART NO. DESCRIPTION Uprights Weight Horns B Foot Braces L M10 Washer Foot Braces R M12 Washer Top Connecting Tube M24 Washer Foot Connecting Tube M12X95 Square Neck Bolt Peg Bar Tube M24X120 Hex Bolt Connecting Tube...
- Page 4 ST E P 2 (D HR80 ONL Y) PART NO. DESCRIPTION PART NO. DESCRIPTION Power Rack L Spotter arms R Foot Brace A M12X95 Square Neck Bolt Foot Brace B M12 Washer Uprights M24 Washer Top Connecting Tube M10 Washer Peg Bar Tube M12 Nylon Nut Band Pegs...
