FRENCH FITNESS FSR20 P/L Owner's Manual

Multi functional gym system (new)
Hide thumbs

Advertisement

Quick Links

Download this manual
FF-FSR20-PL

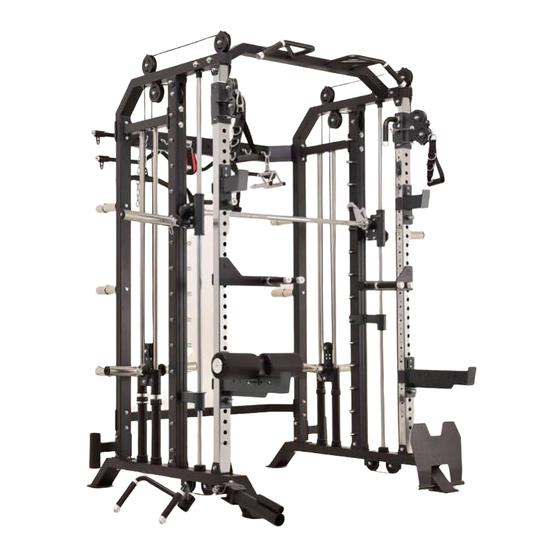

FSR20 P/L Multi Functional Gym System (New)
CAUTION!
20201211-V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the FSR20 P/L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FRENCH FITNESS FSR20 P/L

Summary of Contents for FRENCH FITNESS FSR20 P/L

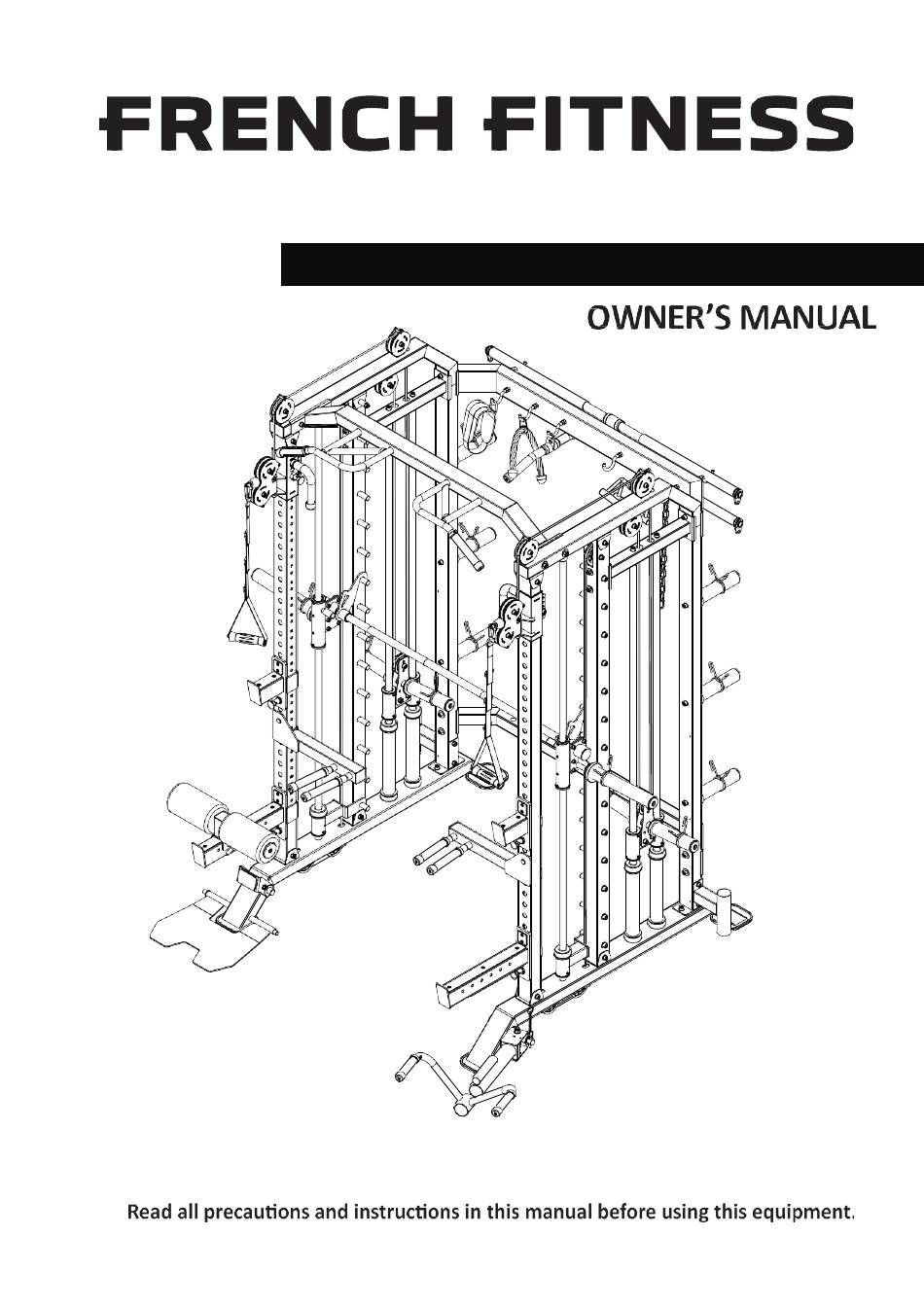

  • Page 1 FF-FSR20-PL FSR20 P/L Multi Functional Gym System (New) CAUTION! 20201211-V1.0...
  • Page 2 TABLE OF CONTENTS BEFORE YOU BEGIN......................1 IMPORTANT SAFETY NOTICES ................2 ASSEMBLED DIMENSION ..................... 3 HARDWARE PACK… ......................4 ASSEMBLY INSTRUCTIONS..................8 EXPLODED DIAGRAM… ....................... 24 PARTS LIST… .......................... 25 BEFORE YOU BEGIN Thank you for selecting the FF-FSR20-PL. For your safety and benefit, read this manual carefully before using the machine.

  • Page 3: Important Safety Notice

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.
  • Page 5 MACHINE...
  • Page 6 MACHINE...
  • Page 7 MACHINE...
  • Page 8 SLIDING...

  • Page 26: Machine Parts List

    MACHINE PARTS LIST KEY NO. PART DESCRIPTION SPEC Base Frame Rear Post L Rear Post R Top Frame Connecting Frame Rear Connecting Frame Rear Intermediate Stand L 口70×2×1960 Intermediate Stand R 口70×2×1960 Upper connecting frame Guide Rod Rear Φ25×1738 Horizontal bar Guide Shaft 口50×70×3×1960 Sliding frame L...
  • Page 27 Rotating plate Φ26×Φ12×38×6 Safety Hook Φ10×R20×M10 Long latch Fixed pedestal Limit bracket 101×95×50×5 Left Chin-up Bar Right Chin-up Bar Rotating Shaft Handle FOAM Frame Weights Stow Rod Spacer Φ20×Φ10.2×32 Long Spacer Short Spacer Small grip frame V-type handle Spacer Rotating Frame Fixing frame Spacer Φ20×Φ10.2×101...
  • Page 28 Rubber Stopper Φ78xΦ47.5x13 Rubber Stopper Φ62×Φ24.5×25 Floor End Cap 口135×135×8 Rack Liner 52×45×5 Rack Liner 120×45×5 Rack Liner 415×45×5 plate Φ68×5.7 Double pull cable Φ5 Pulley with Bearings Φ96 Small Pulley with Bearing Φ75×25 Rectangular End Cap 口50 Rectangular End Cap 口70×50 Bushing Φ22×Φ10.2×25...
  • Page 29 Hexagon socket button head screws M10×85 Hexagon socket button head screws M10×90 Hexagon socket button head screws M10×95 Hexagon socket button head screws M10×125 Hexagon socket button head screws M12×25 Hexagon socket button head screws M12×95 Allen Bolt M10×20 Allen Bolt M12×40 Washer Washer...
  • Page 30 SLIDING PARTS LIST KEY NO DESCRIPTION SIZE QUANTITY Short Spacer φ55×φ46×φ27×41 Safety Hook Bracket Guides φ49 Spring Clip φ62×φ24.5×25 Robber Stopper Screw ST4.0×9 Hexagon socket button head screw M10×45 Allen Bolt M10×20 Washer Sliding Support Spacer Plate Loader...
  • Page 31 FF-FSR-JA FSR20 P/L Multi Functional Gym System (New) CAUTION! Read all precautions and instructions in this manual before using this equipment. 20201211-V1.0...

  • Page 32: Assembly Manual

    ASSEMBLY MANUAL FF-FSR-JA BEFORE YOU START Remove all parts from the packaging and separate and count each various component to ensure everything has been correctly provided. Follow the instructions and consult both the individual assembly pages and the overall expanded views of the equipment.

  • Page 38: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 39: Parts List

    PARTS LIST KEY NO. PART DESCRIPTION SPEC Left Bracket Right Bracket Left Pushing Rack Right Pushing Rack Narrow Handle Holder Short Spacer Rubber Stopper 100×50×25 Plug Section Long Handle Lock Draw Pin φ50 End Cap □65 End Cap Deep Groove Ball Bearing 61905-2Z Hole Circlip Hexagon Socket Button Head Screws...
  • Page 40 FF-FSR-LS FSR20 P/L Multi Functional Gym System (New) CAUTION! Read all precautions and instructions in this manual before using this equipment. 20201211-V1.0...
  • Page 41 ASSEMBLY MANUAL Functional Trainer Rack Pack BEFORE YOU START Remove all parts from the packaging and separate and count each various component to ensure everything has been correctly provided. Follow the instructions and consult both the individual assembly pages and the overall expanded views of the equipment.
  • Page 48 EXPLODED DIAGRAM...
  • Page 49 PARTS LIST KEY NO. PART DESCRIPTION SPEC Seat Support Adjust To Pipe Foam Roll Frame Lock Knob Seat Pad □50×□45 Sleeve □44 End Cap □50 End Cap φ125×φ22×215 Foam Roll φ68×5.7 Foam Baffle M8×30 Sunk Screw M8×20 Hex Bolts M10×20 Hex Bolts φ8 Washer...
  • Page 50 FF-FSR-LP FSR20 P/L Multi Functional Gym System (New) CAUTION! Read all precautions and instructions in this manual before using this equipment. 20201211-V1.0...
  • Page 51 TABLE OF CONTENTS BEFORE YOU BEGIN......................1 IMPORTANT SAFETY NOTICES ................2 ASSEMBLED DIMENSION ..................... 3 HARDWARE PACK…......................4 ASSEMBLY INSTRUCTIONS..................5 PARTS LIST… .......................... 6 BEFORE YOU BEGIN Thank you for selecting the FF-FSR-LP. For your safety and benefit, read this manual carefully before using the machine.
  • Page 52 IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.
  • Page 55 FF-FSR FF-FSR...
  • Page 56 PARTS LIST KEY NO. PART DESCRIPTION SPEC Foot Pedal Set φ10×80 U Spring Pins...
  • Page 57 FF-FSR-AB FSR20 P/L Multi Functional Gym System (New) CAUTION! Read all precautions and instructions in this manual before using this equipment. 20201211-V1.0...
  • Page 58 和 ② × × ④ × ③ 且 ① × ③ × ① × ⑥ C迦 ① ⑥ × ＠ ×...
  • Page 59 10 11 12 13 14 15 16 17 1” ²” 3” 4” ±” 6”...
  • Page 60 10 11 12 13 14 15 16 17 18 19 1” ²” 3” 4” ±” 6” 7”...
  • Page 61 33 × 6 31 × 2 32 × 2 36 × 9 35 × 12 34 × 4 38 × 6 4# × 1 5# × 1 6# × 2...
  • Page 69 PARTS LIST KEY NO. PART DESCRIPTION SPEC Q' TY Main Frame Rear Stabilizer Backrest Support Seat Support Frame Backrest Adjustment Support Seat Adjustment Support Fornt Adjustment Support Rear adjusting tooth plate Seat Pad Backrest Board Double head internal bolt φ10×M8×86 Allen Bolt M8×16 Allen Bolt...
