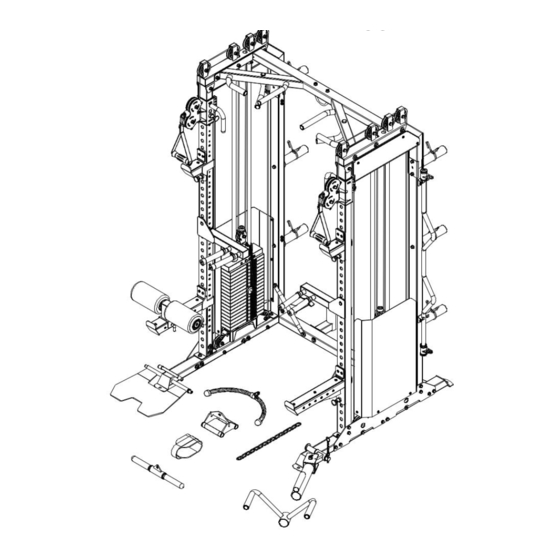

- Page 1 FF-SRFT8 FRENCH FITNESS SRFT8 SQUAT RACK FUNCTIONAL TRAINER ASSEMBLY MANUAL CAUTION! Read all precautions and instructions in this manual before using this equipment. 20210810-V1.0...
- Page 2 14 gauge steel 2mm Steel frame Metal Shroud 5mm cable passed through 800 kg tension test Durable and smooth stainless guide rod Triangular bottom rear support Weight selector pin to avoid sliding during execise ...
-
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. -
Page 21: Part Description
KEY NO. PART DESCRIPTION SPEC Base Frame L Base Frame R Base Bracket 855×130×4×M6 Rear Post L Rear Post R Protective cover L 560×152×1.5 Protective cover R 560×152×1.5 Guide rod φ25×1900 Double pull cable L=8200mm Guide Pulley Frame Protective cover L 710×472×102×72×0.8 Protective cover R 710×472×102×72×0.8... - Page 22 KEY NO. PART DESCRIPTION SPEC Straight Bar (attachment) Top Weight Plate 285×75×34 Weight Plate 285×102×25(5kg) Selector Rod Φ25×525 17+1 （ ） Bracket 120×71×13×3 Weights Stow Rod φ25×245 Rotating Shaft φ25×183 Rotating Shaft φ16×390 Dip Bar L Dip Bar R V-type handle Handle φ25×1.5×400 U-type Hook...
- Page 23 KEY NO. PART DESCRIPTION SPEC Rubber Stopper φ20×φ16×29 FOAM Decorative cover φ70×φ9×8.5 FOAM Decorative cover φ70×φ26×9.5 Rubber Stopper φ62×φ24.5×25 Rubber Stopper φ38×φ7×15 Rubber sleeve φ13×φ9.5×58 Decorative cover φ33.5×φ6.6×25 Retaining ring φ34.5×φ26.5×14×M6 Weight Selector Pin 51×13 5kg-90KG Weight Plate Sticker 90kg （...
