Summary of Contents for FRENCH FITNESS FF-DSCC

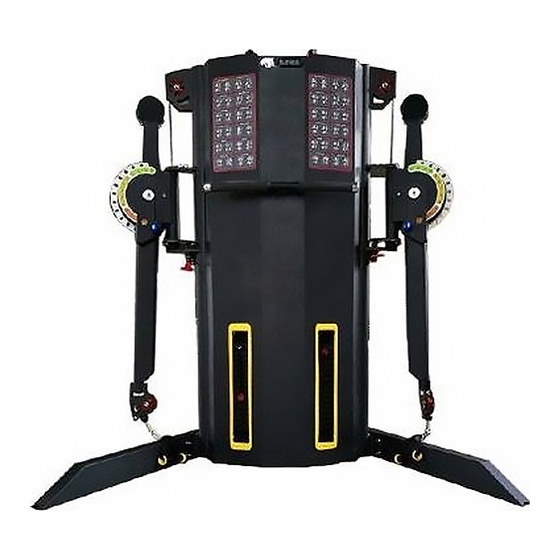

- Page 1 FF-DSCC FRENCH FITNESS DSCC DUAL STACK CABLE CROSS ASSEMBLY MANUAL...
- Page 2 FEATURES Extension arm offers 150º vertical adjustments and 165º horizontal adjustments. Designed for functional, speed and ballistic training, and is accessible for wheelchairs, rehab equipment, workout benches and stability balls. Ball bearing swivel pulleys, increase fluidity and cable response for more effective sport specific training.
- Page 3 TABLE OF CONTENTS WARNING ....................4 PARTS LIST ....................5 EQUIPMENT SCHEMATIC ................7 INSTALLATION STEPS ................. 8 EXPLODED DIAGRAM ................11...
- Page 4 Please read the following important notes carefully before using this series of equipment to avoid personal injury and property damage. 1. Read the manual carefully before use, install and use the equipment according to the relevant instructions on the manual. 2.
- Page 5 P A R T S L I S T Name Specification Main Frame Right bracket Left bracket Auxiliary training rack Guide rod fixing plate Front guard assembly Rear guard assembly Guide rod Left counterweight iron frame Right counterweight iron frame Baffle Bolt set Wire rope group...
- Page 6 P A R T S L I S T Handle group R-C-6301 Buffer cushion R-c-4008 Sliding sleeve R-B-4408-02 10 lb select iron components R-B-4408 Through hole gloves R-C-6206 Ring assembly R-B-5112 Roller link head Deep groove ball bearing 6004-2Z Deep groove ball bearing 6006-2Z Deep groove ball bearing 6001-2Z...
- Page 7 E Q U I P M E N T S C H E M A T I C...
- Page 8 I N S T A L L A T IO N S T E P 1...
- Page 9 I N S T A L L A T IO N S T E P 2 Step Name Specification Guide rod fixing plate 80*30*8 Guide rod Left weight stack iron assembly Right weight stack iron assembly φ42*100 Bolt set φ23*12 Guide rod end cap φ62*φ20*26 Buffer cushion...
- Page 10 I N S T A L L A T IO N S T E P 3 Step Name Specification Umbrella head hexagon screw M6*16 Φ12*Φ6.4*1.6 Flat Washers Rear shield weldment...
- Page 11 C A B L E R O U T E M A P...
- Page 12 E X P L O D E D D I A G R A M...
