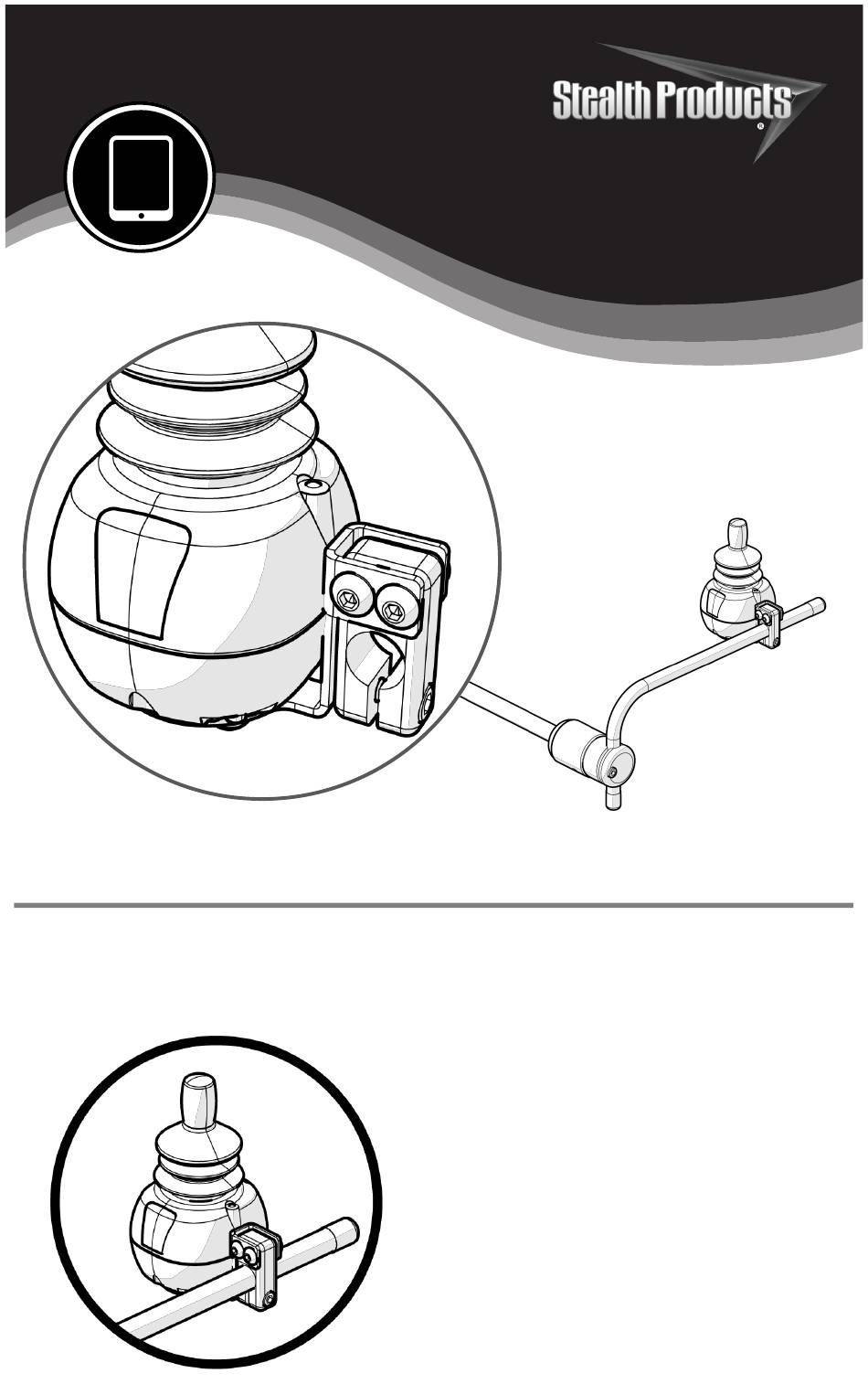

- Page 1 Mounting Hardware Install Manual GAT472P-M IDM-ALLROUND-9/IDM-ARLITE-9 Gatlin Mount For GAT400 Series Mounts INSTALLATION INSTRUCTIONS FOR Stealth Products: IDM-ALLROUND-9 IDM-ARLITE-9 Mo-Vis: P002-71 All Round Joystick P002-72 All Round Lite Joystick...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Commitment Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our swing away hardware. You may reach us at:... -
Page 3: Warning Labels
SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Stealth Products does not hold responsibility of final integration of final assembly of product to end user. -
Page 4: Table Of Contents
Table of Contents 1.0 Customer Satisfaction ................i 1.1 Stealth Commitment ..................... i 2.0 Warnings ....................ii 2.1 Warning Labels ....................... ii 2.2 Limited Liability ....................... ii 2.3 Testing ........................ii 3.0 Table of Contents……………………………………………………………………………….iii 4.0 Parts and Accessories ................1 4.1 Mounting Hardware Parts ................ -
Page 5: Parts And Accessories
Parts and Accessories Mounting Hardware Parts Tools GAT472P-M Mount Clamp Block IDM-ALLROUND-9/ Joystick Bracket IDM-ARLITE-9 Gatlin Clamp Screw Bar Plug Joystick Bracket Screws Clamp Block Screws 1. Not included with mount 2. See Tools table Description M4 x 0.8 x 12mm SHS (B2) Clamp Mount Screw M4 x 0.7 x 6mm BHS (A2) Joystick Bracket Screws... -
Page 6: Installation Instructions
Installation Instructions CAUTION DO NOT OVER TIGHTEN SCREWS. This could cause wearing of screws or joystick threads, causing the client to lose efficient control. Installing Joystick & Mount Step 1: Remove Bar Plug (C2). Position joystick (B) into joystick bracket (A2) and tighten joystick bracket screw (2). -
Page 7: Mounting Height Adjustment
Installation Instructions Mounting Height Adjustment... -
Page 8: Horizontal Alignment
Installation Instructions Mounting Height Adjustment Step 1: Remove bar plug (C2). Loosen clamp screw (1) and slide out mount (A). Loosen joystick bracket screws (3). Step 2: Rotate mount clamp (A1) on its own axis, make sure clamp screw (1) faces away from the user. -
Page 9: Angle Adjustment
Installation Instructions Angle Alignment Step 1: Loosen clamp screw (1). Step 2: Adjust angle mount (A) to desired angle in a range of 360°. When in position tighten clamp screw. Do not over tighten. -
Page 10: Maintenance
Maintenance SAFETY For joystick maintenance guidelines refer to the device’s user manual. Maintenance Check every 6 months that screws are tight. Gently tighten any screws that may have become loose. Maintain that the hardware is clean and free of dust. Cleaning ... -
Page 11: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. - Page 12 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P120D202 Revision Date 2019-12-17...
