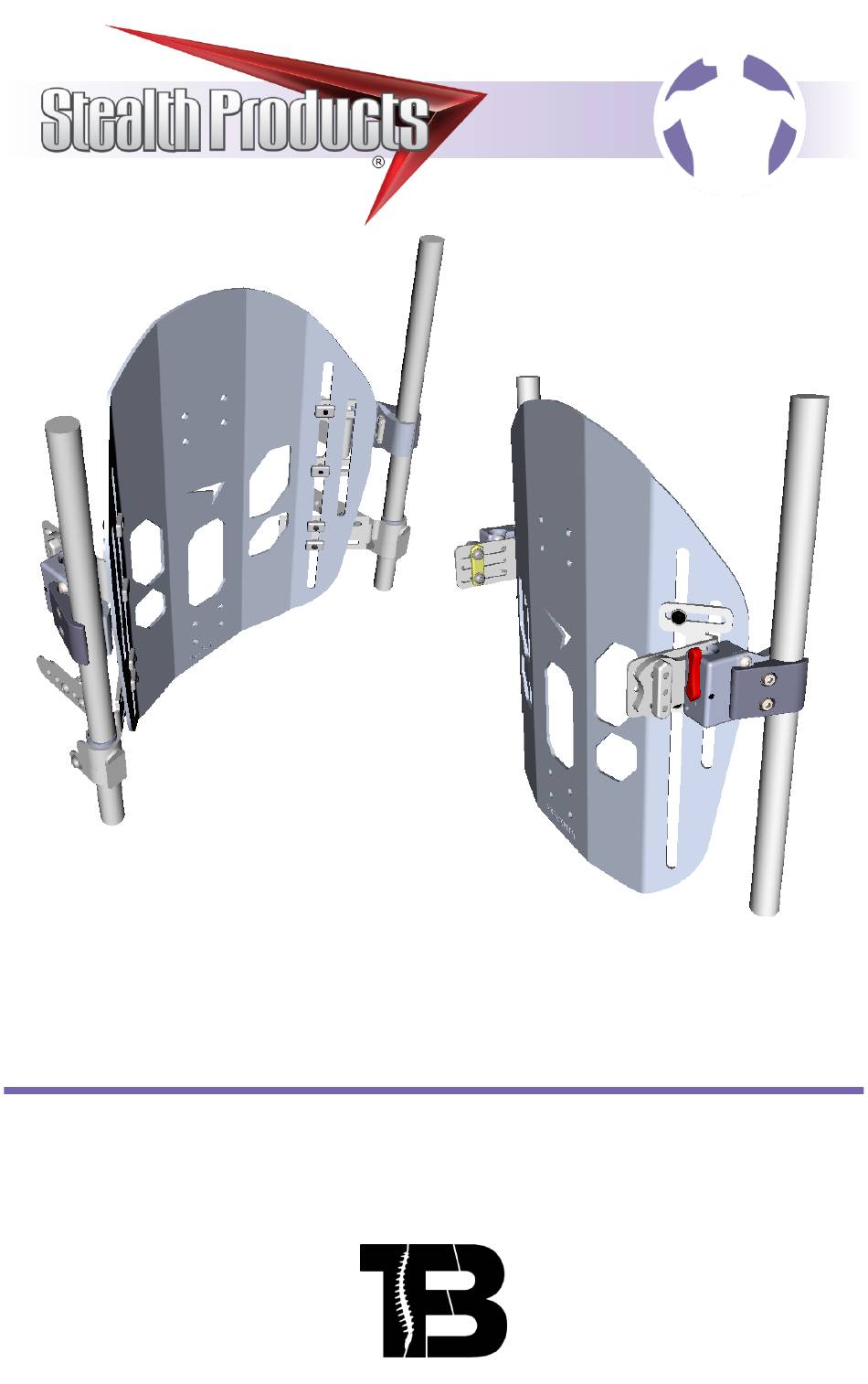

- Page 1 Backs & Support Simple Solutions Removable Hardware Owner’s Manual - Maintenance Guide True Forming Back - Simple Solutions FlipLock Hardware...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ................i General........................i Important Information................ii-iii Warranty ........................ii Supplier Reference ....................ii Warning Labels ....................iii Limited Liability....................iii Testing ........................iii Design and Function .................. 1 Intended Use ......................1 Parts Breakdown....................1 Installation Instructions .................2-7 Preparations...................... -
Page 3: Customer Satisfaction
For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material and workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 6: Design And Function
The Simple Solutions Removable hardware is intended to provide a versatile mounting solution for end users who require a removable mounting hardware for the True Forming Back (TFB) family. The hardware features isolated depth and angle adjustments that provide trouble-free adjustability. -
Page 7: Installation Instructions
Design and Function Item Part Number Description Qty. A. J & L Hardware SSS200-36 1" Hold Down Drop Stop Weldment SSS200-152 1 IN 7 Hole J-Hook SSS200-153 Double Slot Adjustable L-Bracket 67582247 5/16 4 10 Internal Tooth H-Lock Washer TFB200-88 Single Hole T-Nut Metric M6x1mm Thread, 14.3mm Barrel Height M6x1x14.3MM RBW... -
Page 8: Mounting The Hardware To The Back Shell
Installation Instructions Mounting the Hardware to the Back Shell ooltip Step One: Place M6x1x12mm Button Head Screws (A2) and M6 Washers (A3) in the top and bottom slot of the Mounting Bracket* (A1). * 45° bracket shown. 90° bracket may be used, if needed, and will follow the same instructions. -
Page 9: Mounting The Hardware To The Back Posts
Installation Instructions tooltip tooltip tooltip Mounting the Hardware to the Back Posts Note: The clamp is adjustable to match 1" 7/8" 3/4" different back post diameters: tooltip Step One: Loosen the two M6 x 1.0 x 25mm Socket Head Screws (C5) securing the Outside Clamp (C4) to the Inside Clamp (C2) tooltip... -
Page 10: Mounting The J & L Hardware
tooltip Installation Instructions Mounting the J & L Hardware 4-point installations require the J & L hardware in the lower position. Depending on the back shell installed, you will use a 45° or 90° bracket* to mount this hardware to the back shell. 7/8" canes will require the BR2020 spacer (A) to fit the J&L hardware. -
Page 11: Adjustments, Depth
Thoracic Support Adjustments Depth Adjustment The Simple Solutions Removable hardware can be adjusted to increase or decrease seat depth. tooltip Step One: Loosen the M6x1x22mm Button Head Screws (B6) attaching the Mounting Pin (B) to the Mounting Bracket (A). Step Two: Slide the Mounting Bracket (A) tooltip forward or backward into... -
Page 12: Operating Instructions
Operating Instructions Width Adjustment tooltip Step One: Loosen the M6x1x12mm Button Head Screws (A2) on both left and right mounting brackets (A1). Step Two: Slide the back shell to left or right until the desired height is reached. Step Three: Secure the mounting brackets by... -
Page 13: Adjustments, Angle
Operating Instructions Angle Adjustment Simple Solutions Removable hardware allows the back shell to pivot up or down. Step One: Loosen the two M6x1x22mm Button Head Screws (B6) on both left and right mounting brackets. Step Two: Tilt the back shell up or down to reach the desired... -
Page 14: Removable Hardware Operation (2- And 4-Point)
Operating Instructions Removable hardware operation (2 pt. and 4 pt. Removable) Step One: Rotate the Cam Pins (C6) a quarter turn on each removable hardware to unlock the mounting hardware from the Receiver (C1). tooltip Step Two: Firmly grasp the back shell and slide the hardware out of the Receiver (C1). -
Page 15: First Time Use
First Time Use Dealer Assistance During first-time use by the client, it is advised that the dealer or service technician assists and explains the set-up to the customer (the user and/or the attendant). If needed, the dealer may make final adjustments. User Testing It is important that the customer is fully aware of the installation, how to use it, and what can be adjusted in order to gain as much mobility as possible. -
Page 16: Maintenance
Maintenance Cleaning Exercise caution when removing the back to avoid punctures, tears, or other damage to the fabric or foam. CAUTION Be careful not to catch hair, wires, or other items when zipping and unzipping the covers. • Use a so� cloth to clean the hardware. •... - Page 17 Notes...
- Page 18 Notes...
- Page 19 Notes...
- Page 20 © 2021, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P136D689 TFB Removable Hardware.afpub Nov 2, 2021...
