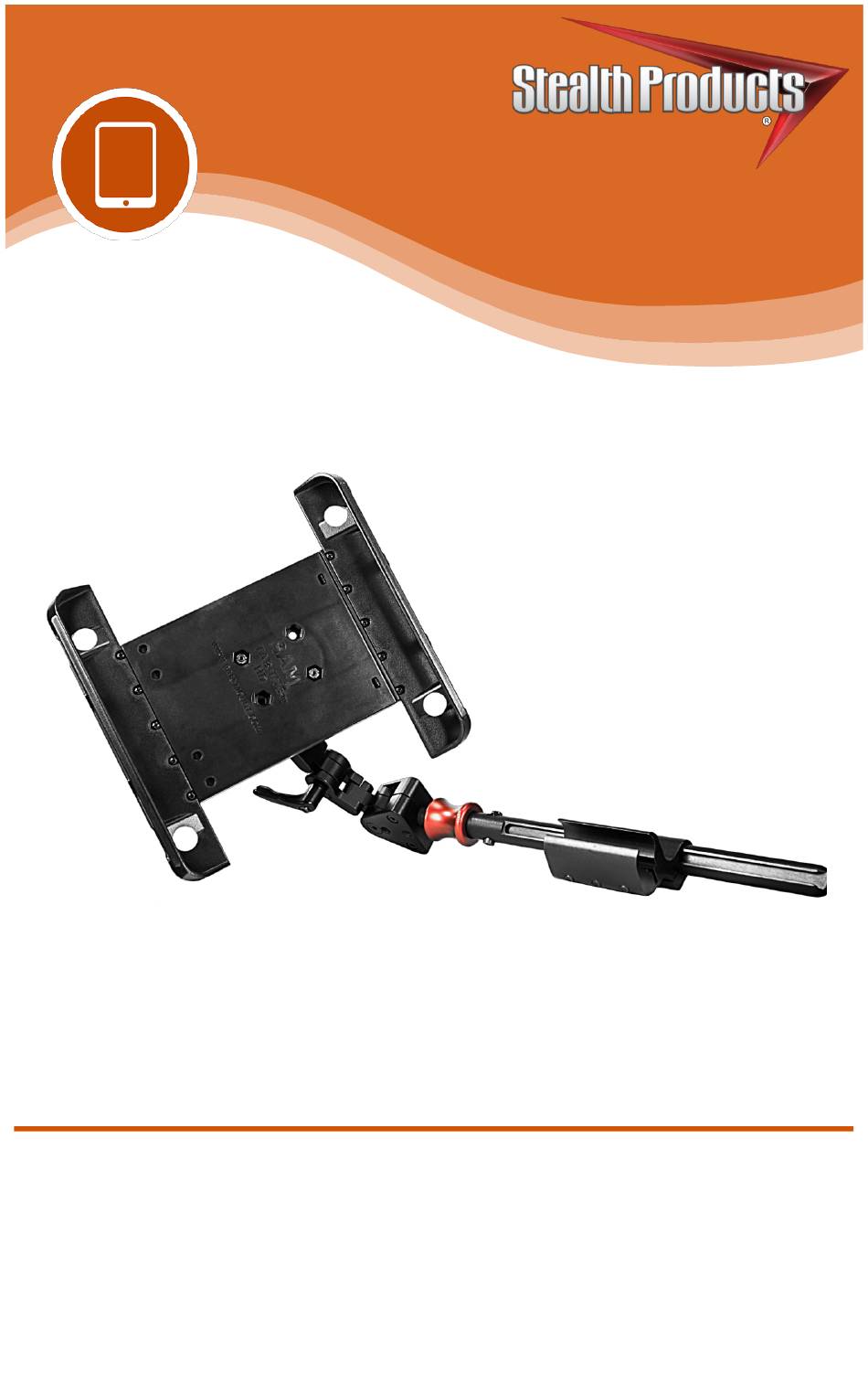

- Page 1 Mounting Hardware OWNERS MANUAL Flip-Down Tablet Mount TWBM480-TAB & TWBM480-U Stealth’s User and Installation Manual for the Swing-Away Link Style Tablet Mount...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC... - Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...
-
Page 4: Introduction
They also contain important safety and maintenance information. For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at 1-800-965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 5: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 6: Table Of Contents
Table of Contents 1.0 Customer Satisfaction ..................i 2.0 Important Information..................ii 3.0 Introduction......................iii 4.0 Warranty ......................iv 5.0 Table of Contents....................v 6.0 Warning Labels ....................vi 6.1 Warning Labels ........................vi 6.2 Limited Liability ........................vi 6.3 Testing ............................vi 7.0 Design and Function .................... -
Page 7: Warning Labels
SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Stealth Products does not hold responsibility for final integration of final assembly of product to end user. -
Page 8: Design And Function
Design and Function Intended Use The TWBM480-TAB/TWBM480-U hardware utilizes Stealth’s link style hardware to provide limitless adjustment. Multiple planes of adjustment allow critical adjustment of the tablet mount. Separate links isolate adjustment planes and angles, while individual link adjustment achieves the most complex support solutions, making the positioning of your tablet easy and rigid. -
Page 9: Parts And Accessories
Flip-Down Sleeve TWB-RH Ratchet Handles (2) Inline Link 3” Inline Link RAM Tab-Tite™ Tablet Mount for iPad 1-4 RAM Tab-Tite™ Small Universal Tablet Mounting Bracket TWBM480-TAB mount shown above. TWBM480-U includes the same components as the TWBM480-TAB. -
Page 10: Replacements Parts
Parts and Accessories Replacement Parts Part Number Description TWB-LINK TWB-LIL-6 FDM380 The TWBM480-TAB is featured in drawings throughout the manual. -
Page 11: Tools
Parts and Accessories Tools Hardware Description 2.5mm T-Handle Set screws on links 5/32 T-Handle All screws on triangle & links 3/16 T-Handle Cane clamp screws Tools, anti-seize, and Blue Medium Strength Liquid Loctite Series 242 are not provided. Torque Specs Screws Torque Specification 1/4 x 20 x 1”... -
Page 12: Installation Instructions
Installation Instructions Replacing the FDM380 Step 1: Loosen the set screws on the triangle mount with a 5/32 T-Handle, but do not remove. Loosen the socket screws from the triangle, allowing the thru triangle to be released from the mount. Step 2: Place the new FDM380 in line with the thru and threaded triangles. -
Page 13: Link Replacement/Adjustment
Installation Instructions Link Replacement/Adjustment Step 1: Loosen the set screw on offset link with a 4mm T-Handle, but do not remove. Remove the ratchet handle from the offset link, separating the offset link from the inline link and creating a gap for the link to be removed or another link to be installed. -
Page 14: Armrest Mounting
Installation Instructions Armrest Mounting Step 1: Position the cane of the chair in between the ARM240 clamp. Step 2: Align the socket head screws with the holes on the clamp and tighten screws with a 3/16 T-Handle to the recommended torque specification. Depth Adjustment Step 1: Loosen the socket head screws on the base of the ARM240 clamp. -
Page 15: Flip-Down Mount
Installation Instructions Flip Down Mount Step 1: To flip the hardware down and away, slide the red flip-down sleeve up. Step 2: Swing away the hardware in conjunction with the flip-down sleeve being pushed up. Step 3: To bring hardware back to the upright position, move the links and tablet back to a parallel position with the ground. -
Page 16: First Time Use
Explain to the customer any possible issues and how to address them. Conditions of Use 10.3 The TWBM480-TAB/TWBM480-U is intended for use as installed by the dealer, in accordance to the installation instructions in this manual: The foreseen conditions of use are communicated by the dealer or service technician to the user and/or attendant during the first time use. -
Page 17: Maintenance
Maintenance 11.0 Maintenance 11.1 All parts should be checked on a regular basis and repaired, if necessary, by a service technician. Discontinue use after identifying loose or broken components. Periodically check the flip-down sleeve. Test that it engages properly and makes an audible ‘click’... - Page 18 NOTES 12.0...
- Page 19 NOTES 12.0...
- Page 20 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P139D17 Revision Date 2019-12-17...
