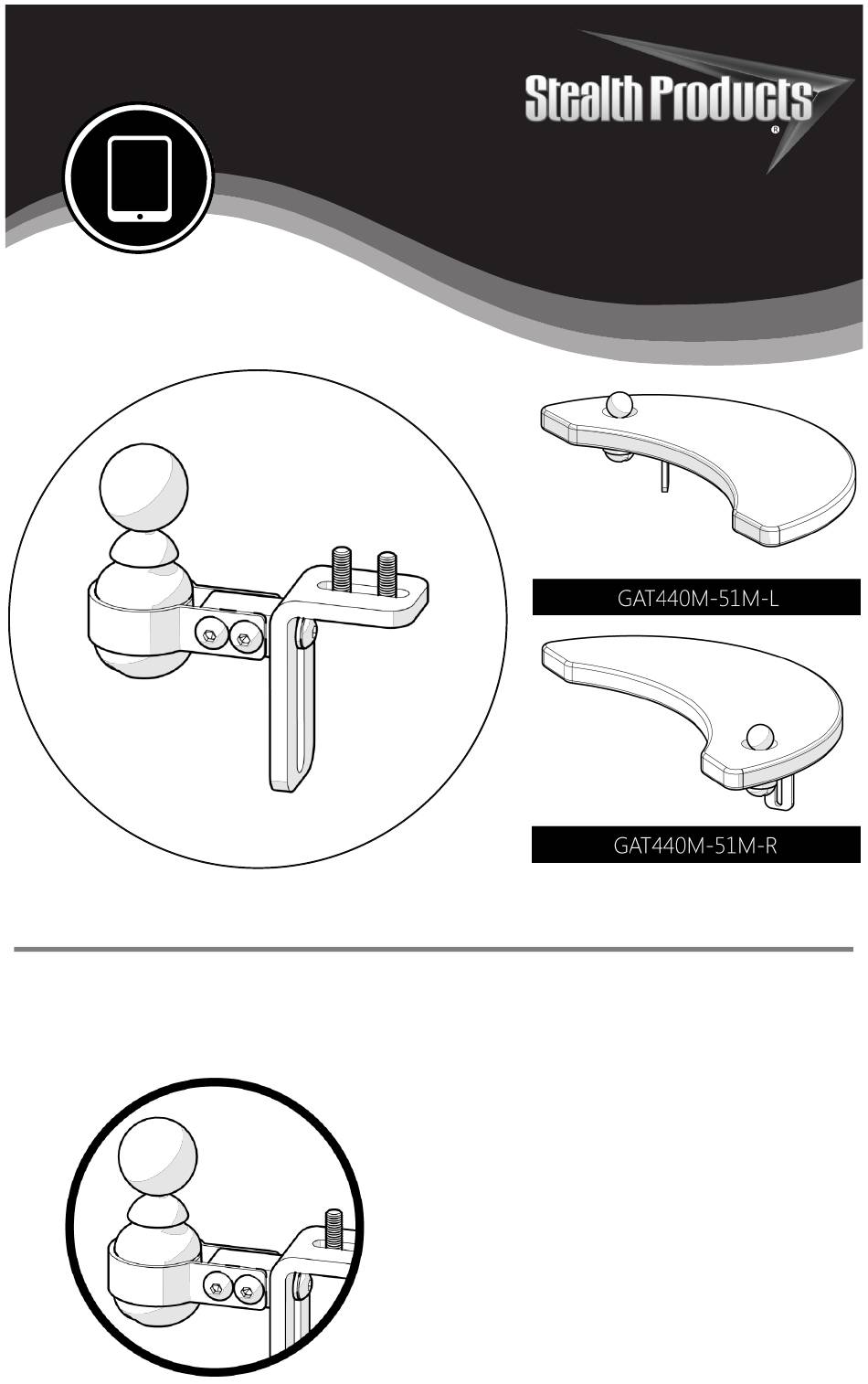

- Page 1 Installation Manual GAT440M-51M (Left/Right) Micro Joystick Assembly Compatible GAT400 Series Mounting INSTALLATION INSTRUCTIONS FOR Stealth Products: IDM-MICRO-9 mo-Vis: P002-51 Micro Joystick...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Commitment Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our hardware. You may reach us at:... -
Page 3: Warning Labels
SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Stealth Products does not hold responsibility of final integration of final assembly of product to end user. -
Page 4: Table Of Contents
Table of Contents 1.0 Customer Satisfaction ................i 1.1 Stealth Commitment ..................... i 2.0 Warnings ....................ii 2.1 Warning Labels ....................... ii 2.2 Limited Liability ....................... ii 2.3 Testing ........................ii 3.0 Table of Contents.................. iii 4.0 Parts and Accessories ................1 4.1 Mounting Hardware Parts ................ -
Page 5: Parts And Accessories
Parts and Accessories Mounting Hardware Parts GAT440M-51M includes: Screws & Tools Eclipse/Mini Tray Mount Mounting Strap Micro Joystick 10-32 x 1/4” BHS 1/4” Steel Washer 10-32 x 3/8” BHS 10-32 x 5/8” BHS 5/32” Allen (Hex Key) 1. Not included... -
Page 6: Installation Instructions
Installation Instructions CAUTION DO NOT OVER TIGHTEN SCREWS. This could cause wearing of screws or joystick threads, causing the client to lose efficient control. Installing Joystick Step 1. Release mounting clamp (B1) from GAT440M-51M mount (B), loosening clamping screw (1). Loosen screws (2) from one of the sides of mounting clamp (B1) and insert Micro Joystick (C). -
Page 7: Mounting Height Adjustment
Installation Instructions Mounting Height Adjustment Step 1: Loosen clamping screw (1). Step 2: Slide mounting clamp (B1) in mount (B) adjustment slot to the desired position. Tighten screw (1) when done. NOTE Mount has a 2in. (5.08 cm) range of adjustment. -
Page 8: Maintenance
Maintenance SAFETY For joystick maintenance guidelines refer to the device’s user manual. Maintenance Check every 6 months that screws are tight. Gently tighten any screws that may have become loose. Maintain that the hardware is clean and free of dust. Cleaning ... -
Page 9: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. - Page 10 NOTES...
