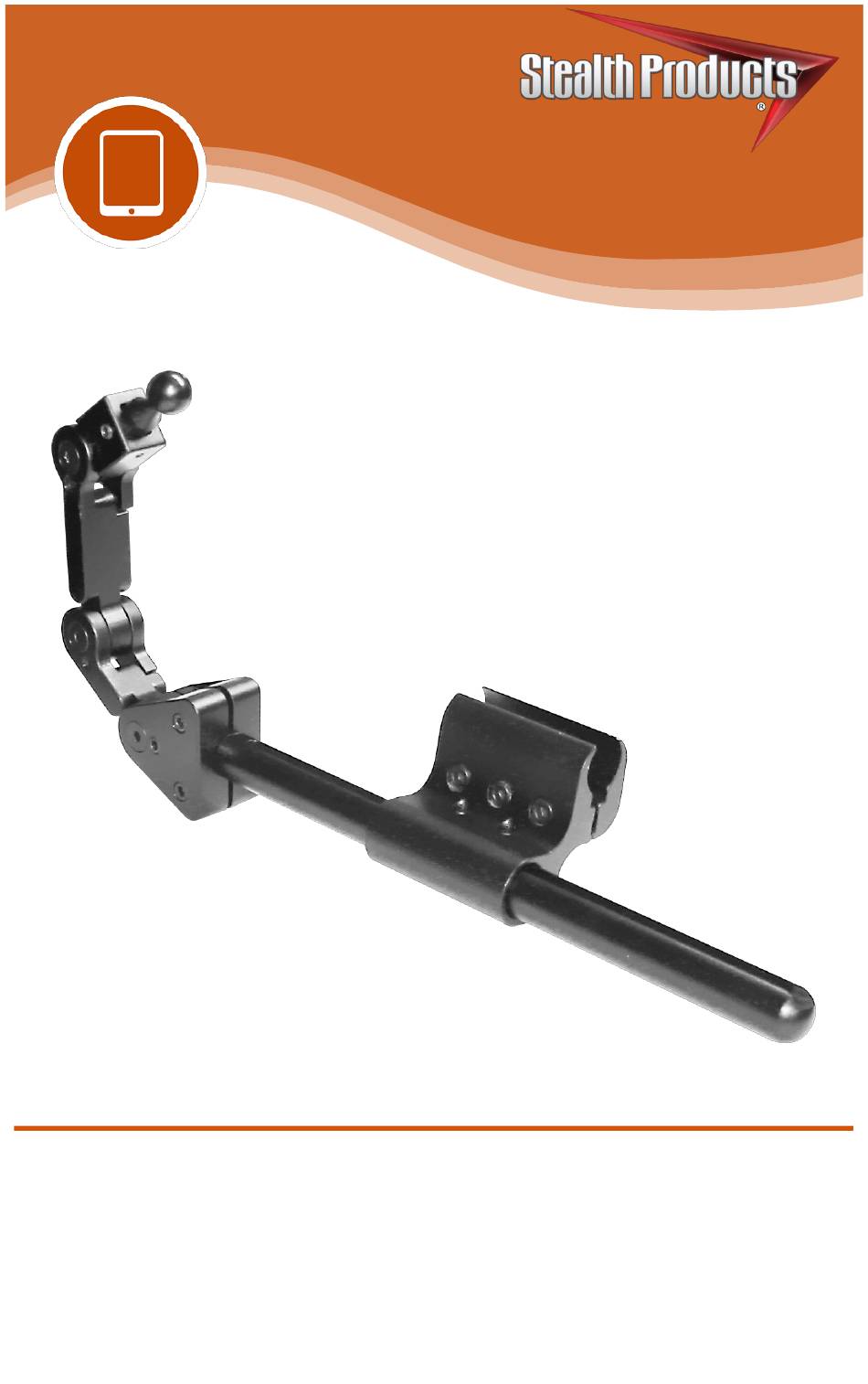

- Page 1 Mounting Hardware USER MANUAL TWBM480 Stealth’s User Manual and Maintenance Guide for the Link Style Armrest Mount...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC... - Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...
-
Page 4: Introduction
Ordering Documentation You can download additional copies of this User Manual on the Stealth website: https://stlpro.site/stealth-docs and search: TWBM480 User Manual in the search bar at the top of the page. -
Page 5: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 6: Table Of Contents
7.1 Package Overview ................... viii 8.0 Assembly And Mounting ..............1 8.1 Hardware Assembly................... 1 8.2 Hardware Mount ....................2 8.3 TWBM480 Armrest Mount ................3 8.4 Arm 240 Cane Mount Clamp ................. 3 8.5 Peripheral Mounting ..................4 9.0 Adjustments .................... 5 9.1 Link Adjustment .................... - Page 7 Table of Contents 10.0 Transit Checklist ..................7 10.1 Before Transit ..................... 7 10.2 Pre-Transit ......................7 11.0 First Time Use ..................8 11.1 Dealer Assistance....................8 11.2 User Testing ....................... 8 11.3 Conditions of Use ..................... 8 12.0 Maintenance ..................9 12.1 Cleaning and Maintenance ................
-
Page 8: Warning Labels
Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. The TWBM480 should always be adjusted without any person sitting in the wheelchair until every alteration of the physical installation or adjustment... -
Page 9: Parts And Accessories
Parts and Accessories Package Overview TWB480-VB TWB480-TR TWB-SOL TWB-LINK TWB-17mmBK ARM240 viii... -
Page 10: Assembly And Mounting
Assembly and Mounting Hardware Assembly 17mm Ball Kit 3/4” Rod 3” In-Line Link Base Plate In-Line Link Nut 10. ARM240 Clamp Plate 2” Offset Link 11. 1/4” - 20 x 1” Flat Head Screw Offset Link Nut 12. 5/16” x 1/4” Set Screw Threaded Triangle 13. -
Page 11: Hardware Mount
Assembly and Mounting Hardware Mounting The ARM240 cane mounting clamp mounts under the armrest and accommodates 3/4”, 7/8” and 1” tubing. To install the ARM240 plate: Place the screws (1) into the corresponding holes on the Base Plate (2) and ARM240 plate(3). -
Page 12: Twbm480 Armrest Mount
3/4”, 7/8” and 1” tubing. The hardware mounts under the armrest of a mobility base and in conjunction with the TWBM480, not only does it allow mounting, but it also provides depth adjustment for the hardware as well as the incredible adjustability of the TWB480 link hardware. -
Page 13: Peripheral Mounting
Peripheral Mounting There are many peripherals, electronics, joysticks, and media devices available to mount onto the TWBM480. Thru Rings (4) come in many styles to mount your device. Below is an example of mounting a Pride Q-Logic Joystick and interface plate(9). -
Page 14: Adjustments
Adjustments Link Adjustment A 5/32” hex key (1) is used to position and adjust links. To adjust links: Loosen the flat head screws (2) attaching the links together. For rotational and link adjustment of the triangle(3), loosen all screws (including set screws) until you are able to rotate the triangle and adjust the first link. -
Page 15: Depth Adjustment
Adjustments Depth Adjustment To adjust the before and after position of the hardware: Loosen the two screws (5) holding the 3/4” hardware stem (6). Position the hardware to the desired location. It may be necessary to adjust the hardware further forward or backward on the armrest to achieve the desired position. -
Page 16: Transit Checklist
In the event that the chair is ever in an vehicular collision, check all hardware thoroughly for damage. If there are any signs of damage, have a qualified tech inspect and replace the damaged components or send to Stealth Products for a complete overhaul to ensure future safety. -
Page 17: First Time Use
Explain to the customer possible problems and how to address them. Conditions of Use 11.3 The TWBM480 is intended for use as installed by the dealer, in accordance to the installation instructions in this manual. The foreseen conditions of use are communicated by the dealer or service technician to the user and/or attendant during first time use. -
Page 18: Maintenance
Maintenance 12.0 Cleaning and Maintenance 12.1 Ensure the hardware you are using stays in working order by keeping it cared for and maintained. Periodically check the hardware for loose screws or worn parts. NOTICE Replace or repair the parts as needed. ... - Page 19 NOTES 13.0...
- Page 20 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P91D20 Revision Date 2019-12-17...
