Stealth Products SBM-DT Owner's Manual

Advertisement

Table of Contents

I

H

G

B

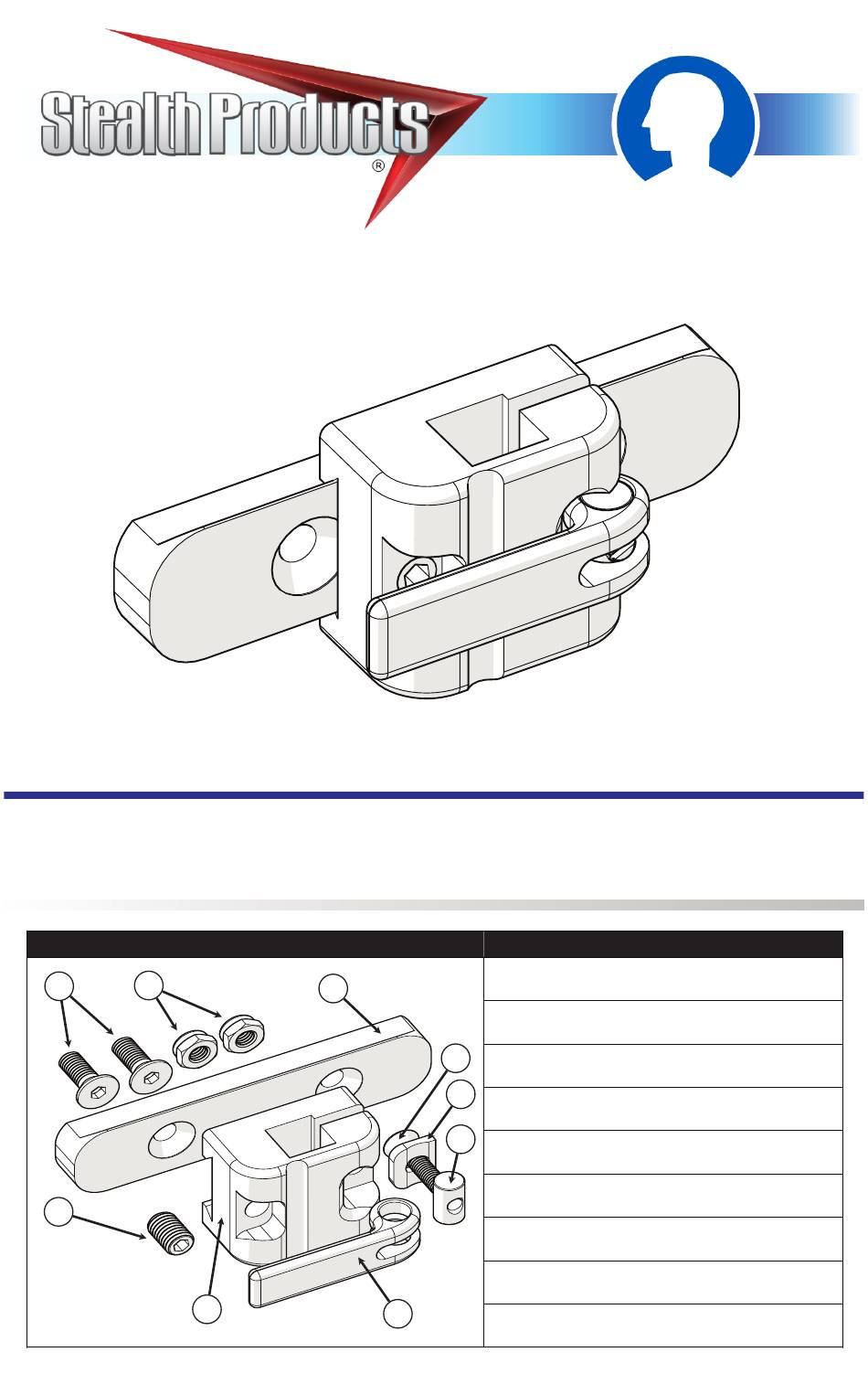

SBM-DT

Owner's Manual for the

Dovetail Seat Back Mount

Part

A

C

Head Support

Description

A. Dovetail Track

B. Latch Body

F

C. Lever

E

D. Pivot Nut

D

E. Bushing

F. M5 x 0.8 x 22mm MOD FHS

G. M6 Socket Set Screw

H. M6 x 1.0 x 16mm FHS (2)

I. M6 x 1.0 Low Nylock Nut (2)

Hardware

Parts Included

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the SBM-DT and is the answer not in the manual?

Questions and answers

Summary of Contents for Stealth Products SBM-DT

Page 1 Head Support Hardware SBM-DT Owner's Manual for the Dovetail Seat Back Mount Parts Included Part Description A. Dovetail Track B. Latch Body C. Lever D. Pivot Nut E. Bushing F. M5 x 0.8 x 22mm MOD FHS G. M6 Socket Set Screw H.
Page 2 Installation Instructions Installing Dovetail Track to Seat Back 1. Locate the mounting holes on the seat back and align the Dovetail Track (A) with them on the back side of the seat. 2. Insert the M6 x 1.0 x 16mm Flat Head Screws (H) through the holes and thread the M6 Nylock Nuts (I) onto them.
Page 3 Latch Body (B), refer to the tension adjustment directions below. * The SBM-DT is designed to fit 1/2" down posts only. Not compatible with 15mm or other sizes. Tension Adjustment Open Lever (C) and locate the slotted end of Adjustment Screw (F) as shown in the image to the left.
Page 4 Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty.
