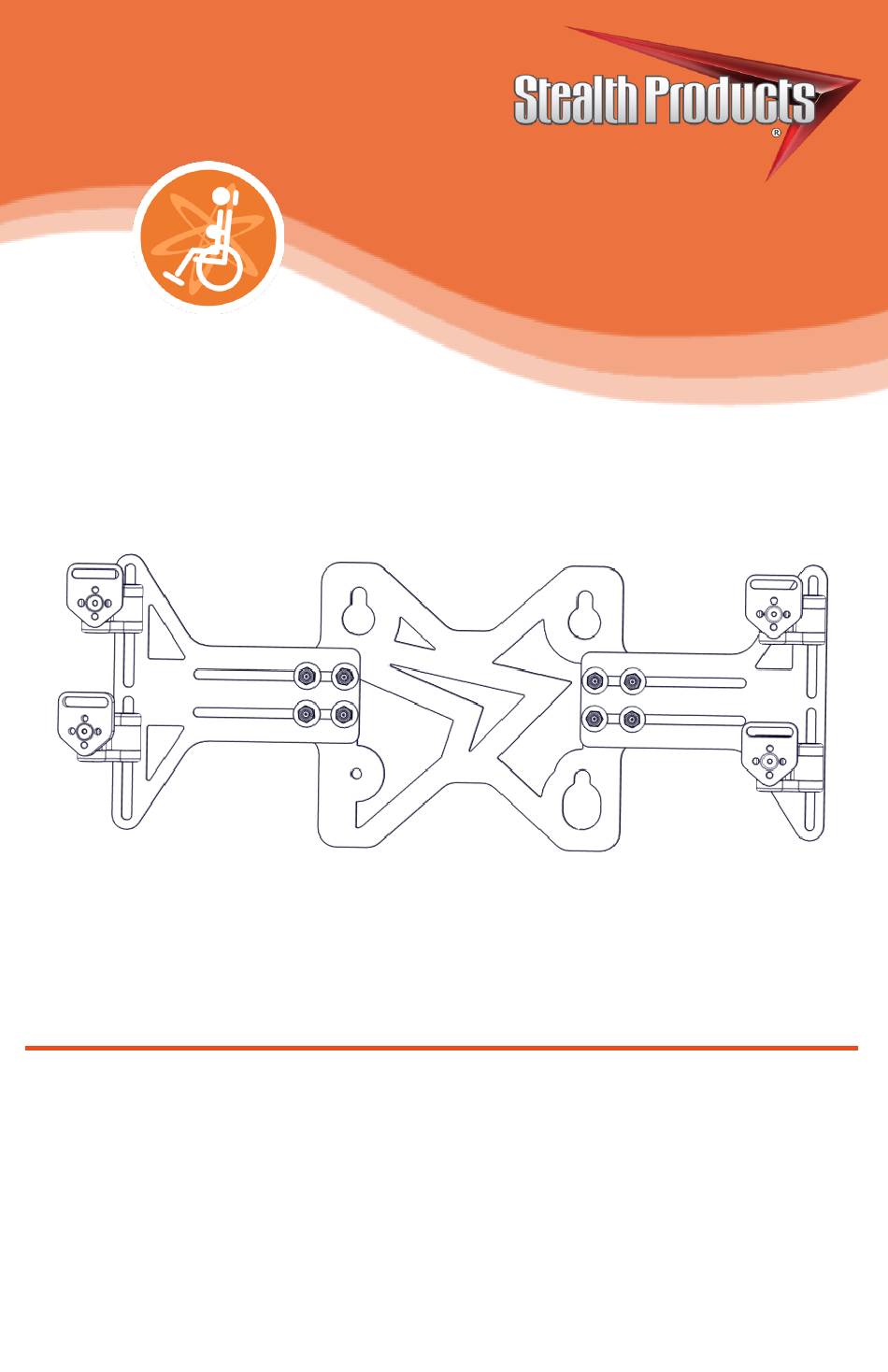

- Page 1 Seating and Positioning OWNER’S MANUAL Simple Solutions Adapter Interface Owner’s Manual for the Simple Solutions Adapter Interface Hardware for TB3 and TB4 Backs...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or to suggest changes which may help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC... - Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used succesfully, you must: •...
-
Page 4: Introduction
They also contain important safety and maintenance information and describe possible problems that may arise during use. For further assistance or more advanced applications, please contact your supplier or Stealth Products, LLC at (512) 715-9995 or toll free at (800) 965-9229. -
Page 5: Warranty
Any lack or alteration of serial number, where applicable, will automatically void this warranty. Stealth Products, LLC is liable for replacement parts only, and is not liable for any incurred labor costs. No person is authorized to alter, extend, or waive the warranties of Stealth Products, LLC. -
Page 6: Table Of Contents
Table of Contents 1.0 Customer Satisfaction ................. i 2.0 Important Information ................ii 3.0 Introduction ....................iii 4.0 Warranty ..................... iv 5.0 Table of Contents ..................v 6.0 Warning Labels ..................vii 6.1 Warning Labels ......................vii 6.2 Limited Liability ......................vii 6.3 Testing ..........................vii 7.0 Design and Function ................... - Page 7 Table of Contents 11.0 First-Time Use ..................9 11.1 Dealer Assistance ....................9 11.2 User Testing ......................9 11.3 Conditions of Use .......................9 12.0 Maintenance ................... 10 13.0 Notes ....................... 12...
-
Page 8: Warning Labels
Stealth Products, LLC does not hold responsibility for final integration or final assembly of product to end user. Stealth Products, LLC is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 9: Design And Function
Design and Function Intended Use The Simple Solutions Adapter Interface is designed to allow users of TB-series power chairs to interchange seating platforms as necessary while maintaining support, stability, and remaining lightweight. Features The Simple Solutions Adapter Interface offers: - width and height adjustment; - independent link arm adjustment capabilities;... -
Page 10: Features
Features Parts and Accessories Breakdown Item Part Number Description WNG08 Adapter Interface Bracket PLT08 Adapter Mounting Plate- TB4 Back M6 X 18MM PS M6 X 18MM Pressed Stud M6 X 1.0 NLN M6X 1.0 Nylon Lock Nut M5 X 0.8 X 12 FHS M5 X 0.8 X 12MM Flat Head Screw M5 FW M5 flat washer, A2 SIS, black oxide *5.3mm ID x 10mm) -
Page 11: Installation Instructions
Installation Instructions... -
Page 12: Preparation
Installation Instructions Preparations Only a qualified service technician may install the Simple Solutions Adapter Interface and its accessories. WARNING Incorrect installation of the adapter interface or its accessories may cause damage to the hardware and/or injury to the user. Tools Use the proper tools to install and adjust the adapter interface to the user’s desired position and specifications. -
Page 13: Required Tools/ Torque Chart
Installation Instructions Requir ed ools Below are the tools needed to complete the installation of the adapter plate: Hardware: Used on: 10 mm Wrench Nylon Locknuts (8) 4mm Hex Key Socket head screws throughout assembly (Tools are not provided.) CAUTION The tools required to install additional accessories are detailed in the manuals provided with those accessories. -
Page 14: Widening Wings
Installation Instructions Widening Wings Loosen all four Nylon Lock Nuts to extend the wing to appropriate width. Repeat with other wing. Tighten Nylon Lock Nuts. -
Page 15: Rotating Adapter Mounting Plates
Installation Instructions Rotating Adapter Mounting Plates Rotate the Adapter Mounting Plates to align with the desired position of the wheelchair seat back. -
Page 16: Installing Button Head Screws And Lock Nuts
Installation Instructions Installing Button Head Screws and Lock Nuts Place button head screw through hole and tighten with lock nut. Repeat on all four adapter plates. -
Page 17: First-Time Use
First-Time Use 11.0 Dealer Assistance 11.1 During first-time use by the client, it is advised that the dealer or service technician not only explains the product, but also assists in the configuration of user positioning to the customer (i.e., the user and/or the attendant). If needed, the dealer can make final adjustments. -
Page 18: Maintenance
Maintenance 12.0 Disinfecting 12.2 • Wipe gently with a cloth dampened with a household disinfectant. Do not immerse foam in water. WARNING Maintenance 12.3 The following care and guideline instructions will keep hardware and covers in good condition for a longer period of time and prevent damage. •... - Page 19 Notes 13.0...
-
Page 20: Notes
Notes 13.0... - Page 21 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 Revision Date 2019-12-06 P150D626...
