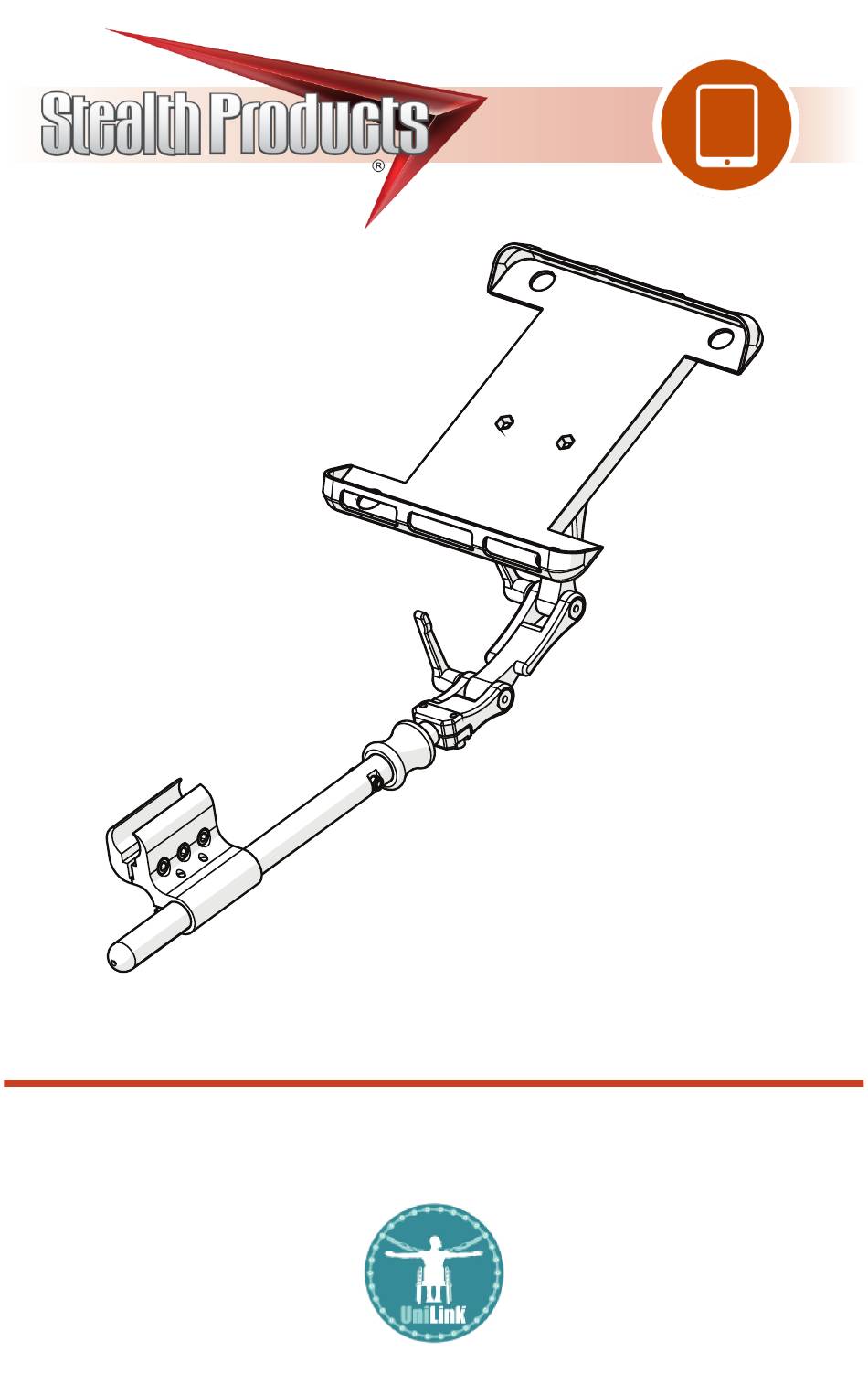

- Page 1 Mounting Hardware Swing-Away Link-Style Tablet Mount Owner’s Manual - Maintenance Guide URPKTAB0000/URPKSMU0000...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ..............i General ......................i Important Information............... ii-iii Warranty .......................ii Supplier Reference..................ii Warning Labels..................iii Limited Liability..................iii Testing ......................iii Design and Function ................ 1 Intended Use....................1 Tablet Mount Specifications..............1 Parts and Accessories ..............2-3 URPKTAB000/URPKSMU0000 Packages.......... 2 Replacement Parts ................... -
Page 3: Customer Satisfaction
For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965- 9229. -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the... -
Page 6: Design And Function
Tablet Mount Specifications • Mounting dimensions for the URPKTAB0000 include: ◦ Height: 8.5 inches to 11.125 inches. ◦ Width: 6.38 inches to 7.75 inches. -
Page 7: Parts And Accessories
Adjustment Handle Stud Adjustable Clamping Handle 17mm Headrest Mount 17mm Mount with Insert TWB480-71 Flip Down Sleeve TWB480-80 .75" FDM Rod, No Slot ARM240 Mount Mounting Bracket * URPKTAB0000 mount shown above. URPKSMU0000 is the same except for Part A. -
Page 8: Replacement Parts
Parts and Accessories Tools Hardware 2.5 mm Hex Wrench 4mm Hex Wrench 5mm Hex Wrench Torque Wrench Hex Bits Tools are not provided. CAUTION Any connection must always be secured with all delivered screws. Use only the screws provided in the package. Torque Specifications Screws Torque Specifications... -
Page 9: Installation Instructions
Installation Instructions Installation to the Armrest Step One: Loosen the three M6 x 1.0 x 25mm Socket Head Screws until the gap between the claw and the jaw is wider than the tube onto which you are installing the clamp. Step Two: Place the tube inside the claw of the clamp and squeeze the claw and jaw together to hold the tube inside the clamp. -
Page 10: Link Replacement/Adjustment
Installation Instructions Link Adjustment/Replacement Step One: The fastener handle can be loosened or removed by turning it counterclockwise to loosen the link segment. When it is loose, the segment can be re-positioned or the fastener can be taken out to add in or remove a segment. -
Page 11: Armrest Mounting
Installation Instructions Depth Adjustment Step One: Loosen the three bolts securing the clamp to the armrest tube, or the two bolts securing the clamp to the stem. Step Two: Move the clamp or the stem forward or backward the required amount to achieve the depth desired. -
Page 12: Flip-Down Mount
Installation Instructions Flip-Down Operation Step One: To flip down the tablet mount, locate the red flip-down sleeve where the stem meets the links. Press it forward and away from the stem. Step Two: As the tablet and links flip down, remove your hand from the flip- down sleeve area, as the spring in the sleeve could cause it to pinch skin. -
Page 13: First Time Use
User Testing It is important that the customer is fully aware of the installation of the URPKTAB0000/URPKSMU0000, how to use it, and how it can be adjusted to fit the client comfortably. As a dealer, proceed as follows: • Explain and show the client how you have executed the installation, and explain the function. -
Page 14: Maintenance
Maintenance Maintenance • All parts should be checked on a regular basis and repaired, if necessary, by a service technician. • Discontinue use after identifying loose or broken components. • Periodically check the flip-down sleeve. Test that it engages properly and makes an audible 'click' when moved back to the vertical position. -
Page 15: Notes
Notes... - Page 16 © 2023, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P139D17R5 TWBM480-TAB & TWBM480-U.afpub Jun 18, 2024...
