USER MANUAL
GAT444-IP
Stealth's User Manual And Maintenance Guide
for the Gatlin Swivel Tablet Mount

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAT444-IP and is the answer not in the manual?

Questions and answers

Summary of Contents for Stealth Products GAT444-IP

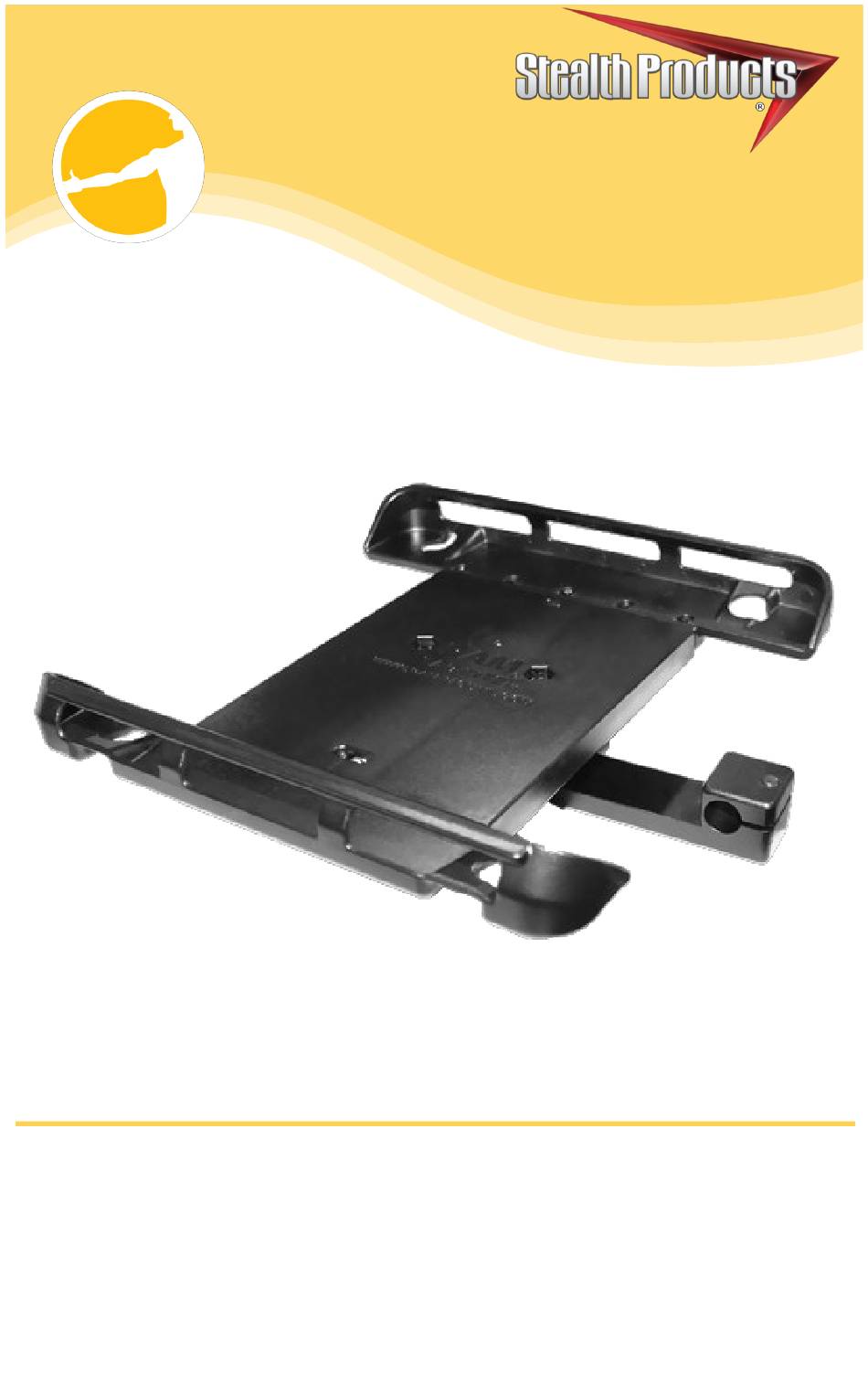

  • Page 1 Upper Extremities USER MANUAL GAT444-IP Stealth’s User Manual And Maintenance Guide for the Gatlin Swivel Tablet Mount...
  • Page 2 Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC...
  • Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...
  • Page 4: Introduction

    Ordering Documentation You can download additional copies of this User Manual on the Stealth website: https://stlpro.site/stealth-docs and search: GAT444-IP User Manual in the search bar at the top of the page.
  • Page 5: Warranty

    Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty.
  • Page 6: Table Of Contents

    8.4 Armrest Mounting ....................3 9.0 Positioning ....................4 9.1 Gatlin Positioning ....................4 10.0 Adjustments ..................5 10.1 GAT444-IP Adjustment ................... 5 10.2 Gatlin Adjustment ..................... 6 11.0 First Time Use ..................7 11.1 Dealer Assistance ....................7 11.2 User Testing......................7 11.3 Conditions Of Use .....................
  • Page 7: Warning Labels

    Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. The GAT444-IP should always be tested without any person sitting in the wheelchair until every alteration of the physical installation or adjustment...
  • Page 8: Parts And Accessories

    Parts and Accessories Parts Included The Gatlin Swivel Table Mount is pre-assembled before delivery. Included with the swivel mount is:  GAT444-IP Swivel Mount (1)  SU275 17mm Ring (2)  1/4”/20 x 3/4” Socket Head Screws (3)  10-24 x 1/2” Socket Head Screws (4) ...
  • Page 9: Mounting

    Gatlin armrest positioning mount. With 360° rotating capability and great compatibility, the GAT444-IP is a great way to attach a tablet to a seating system. GAT444-IP Swivel Mount The technical specs of this swivel mount include: ...
  • Page 10: Hardware Mounting

    Mounting Hardware Mounting Installation varies depending on which mounting hardware is used. Refer to list below and follow corresponding instructions. ARM240 Standard mount (1 & 3) ARM250 Adjustable mount (1 & 6) ARM250-I Fixed mount for Invacare armrests (1 & 6) ARM240-I Adjustable mount for Invacare armrests (1 &...
  • Page 11: Armrest Mounting

    Mounting Armrest Mounting To mount an armrest with clamps: Loosely thread screws through clamp plate (7) into base plate (8). Position armrests tube between clamp. Tighten screws (6) with a 3/16” hex key until the hardware firmly clamps onto the armrest tube.
  • Page 12: Positioning

    Positioning Gatlin Positioning Hardware operation varies depending on which Gatlin is used. GAT400– 8 positions available GAT405– 3 positions available To change the hardware position: Pull and hold the top of the Gatlin barrel from the bottom. Move to desired position. Allow Gatlin barrel top to retract and lock into the new position.
  • Page 13: Adjustments

    10.0 GAT444-IP Adjustment 10.1 The GAT444-IP swivel mount allows for highly versatile rotational adjustment. For horizontal position and 360° rotational adjustment along the Gatlin arm: Loosen the screw with a 3/16” hex key. Position hardware to the desired location and retighten the screw.
  • Page 14: Gatlin Adjustment

    Adjustments 10.0 Gatlin Adjustment 10.2 Vertical Adjustment: Loosen screw (9) on Gatlin barrel with a 3/16” hex key. Place height and rotation to desired position and retighten screws. Fore and Aft Adjustment: Loosen the two screws (5) holding the hardware rod (6). Position the hardware to the desired location and retighten.
  • Page 15: First Time Use

    Can the user safely operate the chair?  Is the placement of the GAT444-IP in an optimal position for the user? If needed, adjust the hardware to the proper position. Explain to the customer any possible issues and how to address them.
  • Page 16: Maintenance

    Maintenance 12.0 Care and Maintenance 12.1  Periodically check the hardware for loose screws or worn parts.  To clean, use a general household cleaner.  It may be required to tighten the set screw if the swing away mechanism is loose. ...
  • Page 17 NOTES 13.0...
  • Page 18 NOTES 13.0...
  • Page 19 NOTES 13.0...
  • Page 20 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P91D15 Revision Date 2019-12-17...
