Section
13th May 05
CONTENTS
Page No.
1
2
2
3 & 4
5
5
5
6
7
8
8
8
8
9
9
9
9
10
10
10
10
11
11
12
12
13
13
13
13
13
13
14
14
15
16
17
18 - 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TW 18/100G and is the answer not in the manual?

Questions and answers

Related Manuals for Timberwolf TW 18/100G

Summary of Contents for Timberwolf TW 18/100G

  • Page 1: Table Of Contents

    CONTENTS Section Page No. INTRODUCTION PURPOSE OF MACHINE MACHINE DIMENSIONS & SPECIFICATIONS PARTS LOCATION DIAGRAMS 3 & 4 SAFE WORKING Operator’s Personal Protective Equipment Required Basic Woodchipping Safety General Safety Matters - Do’s and Dont’s Noise Test OPERATING INSTRUCTIONS Safe Transportation Hitching onto the Tow Ball Unhitching the Chipper Delivery...

  • Page 2: Introduction

    Timberwolf's policy of constantly improving their products may involve major or minor changes to the chippers or their accessories. Timberwolf reserves the right to make changes at any time without notice and without incurring any obligation.

  • Page 3: Purpose Of Machine

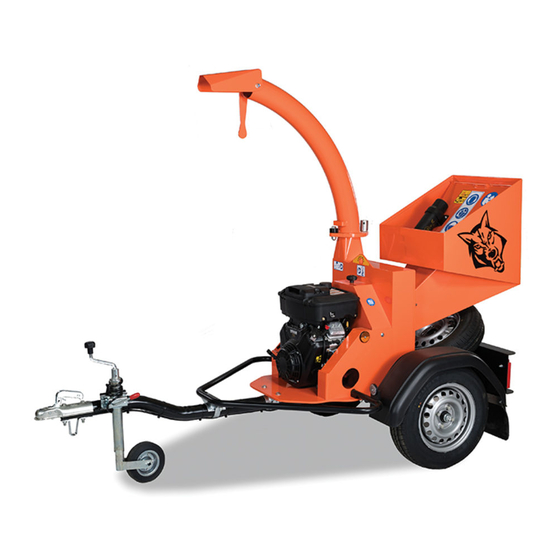

    TIMBERWOLF TW 18/100G PURPOSE OF MACHINE The Timberwolf 18/100G brushwood chipper is designed to chip solid wood material up to 100 mm in diameter. It is capable of chipping over 1 tonne of brushwood per hour. DIMENSIONS Serial No. Location...

  • Page 4: Parts Location Diagrams 3

    PARTS LOCATOR DISCHARGE BUCKET DISCHARGE HANDLE ROTOR HOUSING FEED FUEL FUNNEL TANK DISCHARGE TUBE EXHAUST DISCHARGE CLAMPS JOCKEY WHEEL ASSEMBLY HEAD RESTRAINING BELT DRAW BAR SKID PLATE CABLE GUARD CONTROL PANEL...
  • Page 5 PARTS LOCATOR ROTOR FAN SECTION (x 2) CUTTER BLADES DRIVE BELT TENSIONER PULLEY ROTOR DRIVE PULLEY DRIVE BELTS ENGINE DRIVE PULLEY...

  • Page 6: Safe Working

    SAFE WORKING WARNING The chipper will feed material through on its own. To do this, it relies on sharp blades on the chipper rotor. To keep the blades sharp, only feed the machine with clean brushwood. DO NOT put muddy/dirty wood, roots, potted plants, bricks, stones or metal into the chipper.

  • Page 7: General Safety Matters - Do's And Dont's

    SAFE WORKING GENERAL SAFETY MATTERS D O ’ S A N D D O N ’ T S ALWAYS stop the chipper engine before making DO NOT use chipper unless available light is any adjustments, refuelling or cleaning. sufficient to see clearly. ALWAYS check machine has stopped rotating DO NOT...

  • Page 8: Noise Test

    SAFE WORKING NOISE TEST MACHINE: TW 18/100G NOTES: TESTED CHIPPING 50 mm x 50 mm CORSICAN PINE 1.5m IN LENGTH Noise levels above 90dB (A) will be experienced at the working position. Wear ear protection at all times to prevent possible damage to hearing. All persons within a 4 metre radius must also wear good quality ear protection.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS SAFE TRANSPORTATION WHEN towing a chipper the maximum speed limit is 60 mph. rough or bumpy road surfaces reduce speed accordingly to protect your machine from unnecessary vibration. WHEN towing off road be aware of objects that may catch the chipper undergear. WHEN towing off road ensure inclination is not excessive.

  • Page 10: Delivery

    OPERATING INSTRUCTIONS DELIVERY All Timberwolf 18/100G machines have a full pre - delivery inspection before leaving the factory and are ready to use. Read and understand this instruction manual before attempting to operate the Chipper. In particular, read pages 5-7 which contain important health and safety information and advice.

  • Page 11: Stopping The Engine

    OPERATING INSTRUCTIONS STOPPING THE ENGINE Move throttle lever to “slow” Push “on/off” rocker switch position to “off” position. Close fuel shutoff valve. For more detailed information refer to the Engine Owner’s Manual DAILY CHECKS BEFORE STARTING LOCATE the machine on firm level ground. CHECK the feed funnel to ensure no objects are inside.

  • Page 12: Blade Wear

    OPERATING INSTRUCTIONS BLADE WEAR The most important part of using a wood chipper is keeping the cutter blades sharp. The 18/100G is fitted with two 17 mm (7") blades. They are 42 mm wide when new. A new blade should chip between 5 and 10 tonnes of material before sharpening. This figure will be drastically reduced by feeding the machine with stony, sandy or muddy material.

  • Page 13: Service Instructions

    SERVICE INSTRUCTIONS SERVICE SCHEDULE WARNING Always immobilise the machine by stopping the engine, and removing the ignition key before undertaking any maintenance work. Table 1. Service Schedule Daily Check Hours Hours Hours Hours Do jobs below: Check engine oil - top up if necessary.

  • Page 14: Engine Servicing

    Inspect the lifting eye prior to each use - DO NOT USE IF DAMAGED. SPARES Only fit genuine Timberwolf replacement blades, screws and chipper spares. Failure to do so will result in the invalidation of the warranty and may result in damage to the chipper, personal injury or even loss of life.

  • Page 15: Change Blades

    MARK CHECK FITTINGS The Timberwolf TW 18/100G is subject to large vibrations during the normal course of operation. Consequently there is always a possibility that nuts and bolts will work themselves loose. It is important that periodic checks are made to ensure the security of all fasteners. Fasteners should be tightened using a torque wrench to the required torque (see below).

  • Page 16: Warranty Statement

    -Performance of the required maintenance listed in your Entec instruction manual. -In the event of a failure the Entec authorised Timberwolf dealer is to be notified within 10 days of failure and the equipment is to be made available for unmolested inspection by the dealer technician.

  • Page 17: Ec Declaration Of Conformity Certificate

    TIMBERWOLF TW 18/100G...

  • Page 18: Stickers

    HIGH VELOCITY DISCHARGE 3012 KEEP CLEAR! EXHAUST 1136 3013 TIMBERWOLF 1662 OPERATING INSTRUCTIONS READ THE INSTRUCTION MANUAL. THE INSTRUCTION MANUAL WITH THIS MACHINE CONTAINS IMPORTANT OPERATING, MAINTENANCE AND 1849 HEALTH AND SAFETY INFORMATION. FAILURE TO FOLLOW THE INFORMATION CONTAINED IN THE INSTRUCTION MANUAL MAY LEAD TO DEATH OR SERIOUS INJURY.

  • Page 19: Parts Lists

    TIMBERWOLF TIMBERWOLF TW 18/100G TW 18/100G PARTS LISTS The following illustrations are for parts identification only. The removal or fitting of these parts may cause a hazard and should only be carried out by trained personnel. Page No. BELT TENSIONER...
  • Page 20 BELT TENSIONER Item Part No Part Name Q’ty 0313 M12/100 Bolt 0415 Heavy Washer 0491 Bearing 0411 Pulley 0472 Pulley Boss N/A to purchase Slider 0469 Slider Block 1342 End Plate 0711 M8 C Washer 0476 Plain M8 Nut Date Last Modified: 30th July 01 0342 M8/110 Bolt...
  • Page 21 CHASSIS Date Last Modified: 16th March 05 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 0048 Mudguard 0356 M12/50 Bolt 0200 Wheel 0431 M12/40 Bolt 0346 M8/20 Bolt 0711 M8 A Washer 0712 M8 C Washer M8 Mudguard Washer 0011 Skid Plate...
  • Page 22 DISCHARGE Item Part No Part Name Q’ty 0904F Discharge Tube 0523F Discharge Bucket 0644 M12 P Nyloc Nut 0702 M12 A Washer 0320 M12/25 Cup Square 0430 M12/35 Cup Square 0134 Black Handle Grip 1649F Discharge Clamp Handle 4109M M16 Clamp Nut 4131 Roll Pin 0434...
  • Page 23 DRIVE TRAIN Date Last Modified: 26th March 04 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 0390 Belt Vee SPA 1000 0408 Taper Lock Bush 2012 1” 0410 Taper Lock Bush 2517 38 mm 0061 Key 1/4 x 1/4 x 1/2 0072 Key 10 x 10 x 80 1609...
  • Page 24 ENGINE x2 each side Item Part No Part Name Q’ty 4220 Engine 4221 Muffler Kit 4279 Muffler Deflector 0353 M8/50 Bolt 0712 M8 C Washer Date Last Modified: 16th March 05 0481 M8 T Nyloc Nut...
  • Page 25 FUNNEL & GUARDS Date Last Modified: 11th Feb 05 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 0693 Feed Tray 0318 M12/20 Bolt 0691 Funnel 0046 M12 Plain Nut 0346 M8/20 Bolt 0391 M6 T Nyloc Nut 0712 M8 C Washer 0709...
  • Page 26 ROTOR Date Last Modified: 15th April 05 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 0959 Plastic Cap 1083 Rotor 0884 Rear Bearing Housing 1571 Fan Section 0318 M12/20 Hex Set 0386 M10/30 Caphead 0415 Heavy Washer 0071H Blade 0491...
  • Page 27 ROTOR HOUSING Item Part No Part Name Q’ty 4218F Rotor Housing 1096F Front Plate 0702 M12 A Washer 0045 M12 T Nyloc Nut 0524 Access Cover 0345 M8/18 Socket Caps Date Last Modified: 11th Feb 05 0105 Anvil...
  • Page 28 HIGH VELOCITY DISCHARGE 3012 KEEP CLEAR! EXHAUST 1136 3013 TIMBERWOLF 1662 OPERATING INSTRUCTIONS READ THE INSTRUCTION MANUAL. THE INSTRUCTION MANUAL WITH THIS MACHINE CONTAINS IMPORTANT OPERATING, MAINTENANCE AND 1849 HEALTH AND SAFETY INFORMATION. FAILURE TO FOLLOW THE INFORMATION CONTAINED IN THE INSTRUCTION MANUAL MAY LEAD TO DEATH OR SERIOUS INJURY.
