Timberwolf TW 18/100G Operating Instructions Manual
Hide thumbs
Also See for TW 18/100G:
- Instruction manual (39 pages) ,
- Instruction manual (41 pages) ,
- Manual (28 pages)
Related Manuals for Timberwolf TW 18/100G
Summary of Contents for Timberwolf TW 18/100G
-
Page 1: Table Of Contents
CONTENTS Section Page No. INTRODUCTION PURPOSE OF MACHINE MACHINE DIMENSIONS & SPECIFICATIONS PARTS LOCATION DIAGRAMS 3 & 4 SAFE WORKING Operator’s Personal Protective Equipment Required Basic Woodchipping Safety General Safety Matters - Do’s and Dont’s Noise Test OPERATING INSTRUCTIONS Safe Transportation Hitching onto the Tow Ball Unhitching the Chipper Delivery... -
Page 2: Introduction
Timberwolf's policy of constantly improving their products may involve major or minor changes to the chippers or their accessories. Timberwolf reserves the right to make changes at any time without notice and without incurring any obligation. -
Page 3: Purpose Of Machine

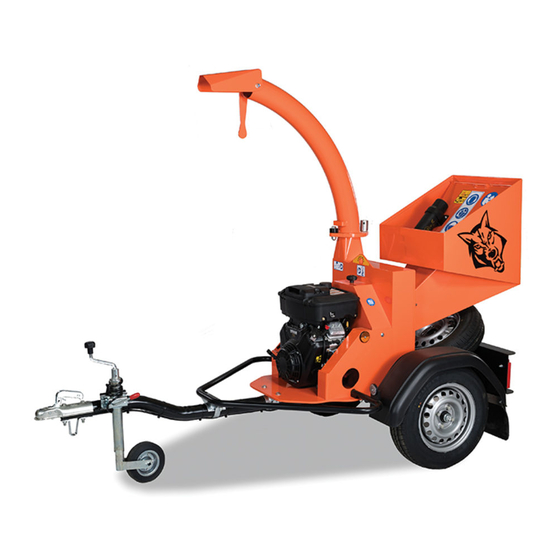

TIMBERWOLF TW 18/100G PURPOSE OF MACHINE The Timberwolf 18/100G brushwood chipper is designed to chip solid wood material up to 100 mm in diameter. It is capable of chipping over 1.5 tonne of brushwood per hour. DIMENSIONS Serial No. Location... -
Page 4: Parts Location Diagrams 3
PARTS LOCATOR DISCHARGE BUCKET DISCHARGE HANDLE ROTOR HOUSING FEED FUEL FUNNEL TANK DISCHARGE TUBE EXHAUST DISCHARGE CLAMPS JOCKEY WHEEL ASSEMBLY HEAD RESTRAINING BELT DRAW BAR CONTROL PANEL SKID PLATE CABLE GUARD... - Page 5 PARTS LOCATOR ROTOR FAN SECTION (x 2) CUTTER BLADES DRIVE BELT TENSIONER PULLEY ROTOR DRIVE PULLEY DRIVE BELTS ENGINE DRIVE PULLEY...
-
Page 6: Safe Working
SAFE WORKING WARNING The chipper will feed material through on its own. To do this, it relies on sharp blades on the chipper rotor. To keep the blades sharp, only feed the machine with clean brushwood. DO NOT put muddy/dirty wood, roots, potted plants, bricks, stones or metal into the chipper. -
Page 7: General Safety Matters - Do's And Dont's
SAFE WORKING GENERAL SAFETY MATTERS D O ’ S A N D D O N ’ T S ALWAYS stop the chipper engine before making DO NOT operate chipper unless available light is any adjustments, refuelling or cleaning. sufficient to see clearly. ALWAYS check rotor has stopped rotating and DO NOT... -
Page 8: Noise Test
SAFE WORKING NOISE TEST MACHINE: TW 18/100G NOTES: TESTED CHIPPING 50 mm x 50 mm CORSICAN PINE 1.5m IN LENGTH Noise levels above 80dB (A) will be experienced at the working position. Wear ear protection at all times to prevent possible damage to hearing. All persons within a 4 metre radius must also wear good quality ear protection. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS SAFE TRANSPORTATION WHEN towing a chipper the maximum speed limit is 60 mph. rough or bumpy road surfaces reduce speed accordingly to protect your machine from unnecessary vibration. WHEN towing off road be aware of objects that may catch the chipper undergear. WHEN towing off road ensure inclination is not excessive. -
Page 10: Delivery
OPERATING INSTRUCTIONS DELIVERY All Timberwolf 18/100G machines have a full pre - delivery inspection before leaving the factory and are ready to use. Read and understand this instruction manual before attempting to operate the Chipper. In particular, read pages 5-7 which contain important health and safety information and advice. -
Page 11: Stopping The Engine
OPERATING INSTRUCTIONS STOPPING THE ENGINE Move throttle lever to “slow” Push “on/off” rocker switch position to “off” position. Close fuel shutoff valve. For more detailed information refer to the Engine Owner’s Manual DAILY CHECKS BEFORE STARTING LOCATE the machine on firm level ground. CHECK the feed funnel to ensure no objects are inside. -
Page 12: Blade Wear
OPERATING INSTRUCTIONS BLADE WEAR The most important part of using a wood chipper is keeping the cutter blades sharp. The 18/100G is fitted with two 17 mm (7") blades. They are 42 mm wide when new. A new blade should chip between 5 and 10 tonnes of material before sharpening. This figure will be drastically reduced by feeding the machine with stony, sandy or muddy material. -
Page 13: Service Instructions
MAINTENANCE THAT SHOULD BE APPLIED TO ANY PIECE OF MECHANICAL EQUIPMENT AND THE CHASSIS TO WHICH IT IS MOUNTED. AUTHORISED TIMBERWOLF SERVICE AGENTS ARE FULLY TRAINED IN ALL ASPECTS OF TOTAL SERVICE AND MAINTENANCE OF TIMBERWOLF WOODCHIPPERS. YOU ARE STRONGLY ADVISED TO TAKE YOUR CHIPPER TO AN AUTHORISED AGENT FOR ALL BUT THE MOST ROUTINE MAINTENANCE AND CHECKS. -
Page 14: Service Schedule
Repeat 25 & 50 hour service. Change spark plugs. NOTE: Your Timberwolf woodchipper is covered by a full 12 months parts and labour warranty. Subject to correct maintenance and proper machine usage, the bearings are guaranteed for 12 months regardless of hours worked by the machine. In conditions of 'heavy usage' - i.e. in excess of 500 hours per year - it is recommended that the bearings are changed annually to ensure that the machine retains optimum working performance. -
Page 15: Safe Maintenance
Inspect the lifting eye prior to each use - DO NOT USE IF DAMAGED. CHECK FITTINGS The Timberwolf TW 18/100G is subject to large vibrations during the normal course of operation. Consequently there is always a possibility that nuts and bolts will work themselves loose. It is important that periodic checks are made to ensure the security of all fasteners. -
Page 16: Change Blades
NOTE: There will normally be a rapid drop in tension during run-in period for new belts. When new belts are fitted, check the tension every 2 - 3 hours and adjust until the tension remains constant. Belt failures due to lack of correct tensioning will not be covered under your Timberwolf warranty. Remove belt guard. -
Page 17: Warranty Statement
– in these situations they are duly authorised to transfer any remaining warranty period to their first end user. Any warranty offered by the Timberwolf Dealer beyond the original 12 month period will be wholly covered by said Dealer. -
Page 18: Ec Declaration Of Conformity Certificate
CERTIFICATE OF CONFORMITY... - Page 19 DANGER DANGER DISCHARGE KEEP CLEAR! EXHAUST DANGER DANGER DANGER TIMBERWOLF 1136 1363 OPERATING INSTRUCTIONS ! SAFETY NOTE ! LIFTING EYE IS DESIGNED TO LIFT THE READ THE INSTRUCTION MANUAL. MACHINE’S WEIGHT ONLY. DO NOT USE HOIST HOOK DIRECTLY ON LIFTING EYE.
-
Page 20: Decals 18
DECALS 671 - these individual decals are supplied as a set, they may not all apply to your machine. -
Page 21: Parts Lists
TIMBERWOLF 18/100G PARTS LISTS The following illustrations are for parts identification only. The removal or fitting of these parts may cause a hazard and should only be carried out by trained personnel. Page No. BELT TENSIONER CHASSIS DECALS DISCHARGE DRIVE TRAIN ENGINE FUNNEL &... -
Page 22: Belt Tensioner
BELT TENSIONER Item Part No Part Name Q’ty 2988 M8/90 Bolt 0415 Heavy Washer 0491 Bearing 6205 0411M Pulley 0472M Pulley Boss N/A to purchase Slider 0469MS Slider Block 1342PS End Plate made in production Washer 0476 Plain M8 Nut Date Last Modified: 30th Nov 06 2988 M8/90 Bolt... -
Page 23: Chassis
CHASSIS Date Last Modified: 15th Feb 07 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 0048 Mudguard 0711 M8 A Washer 0200 Wheel 0714 M8 Mudguard Washer 0346 M8/20 Bolt 0018 Tow Hitch Safety Cable 0712 M8 C Washer 0702 M12 A Washer... -
Page 24: Discharge
DISCHARGE Item Part No Part Name Q’ty 0904FO Discharge Tube 0523FO Discharge Bucket 0644 M12 P Nyloc Nut 0702 M12 A Washer 0320 M12/25 Cup Square 0430 M12/35 Cup Square 0134 Black Handle Grip 1649MS Discharge Clamp Handle 4109M M16 Clamp Nut 4131 Roll Pin 0434... -
Page 25: Drive Train
DRIVE TRAIN Date Last Modified: 10th Sept 09 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 17279 Belt Vee SPA 1060 0408 Taper Lock Bush 2012 1” 0410 Taper Lock Bush 2517 38 mm 0061 Key 1/4 x 1/4 x 1/2 18961 Key 10 x 10 x 80 1609... -
Page 26: Engine
ENGINE x2 each side Item Part No Part Name Q’ty 4220 Engine 4221 Muffler Kit 4279 Muffler Deflector 0353 M8/50 Bolt 0712 M8 C Washer 0481 M8 T Nyloc Nut Date Last Modified: 3rd Aug 05 0479 M8 P Nyloc Nut... - Page 27 FUNNEL & GUARDS Date Last Modified: 3rd Aug 05 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 0693O Feed Tray 0318 M12/20 Bolt 0691O Funnel 0046 M12 Plain Nut 0346 M8/20 Bolt 0391 M6 T Nyloc Nut 0712 M8 C Washer 0709...
- Page 28 ROTOR Date Last Modified: 10th Sept 09 Item Part No Part Name Q’ty Item Part No Part Name Q’ty 0959 Plastic Cap 1571 Fan Section 0884MS Front Bearing Housing 0386 M10/30 Caphead 0318 M12/20 Hex Set 0071MH Blade 0415 Heavy Washer 0065 Blade Bolts 0491...
- Page 29 ROTOR HOUSING Item Part No Part Name Q’ty 18455FO Rotor Housing 1096FO Front Plate 0702 M12 A Washer 0045 M12 T Nyloc Nut 0524O Access Cover 0345 M8/18 Socket Caps Date Last Modified: 24th Jan 08 0105MH Anvil...
- Page 30 V-BELT TENSIONING TABLE...
