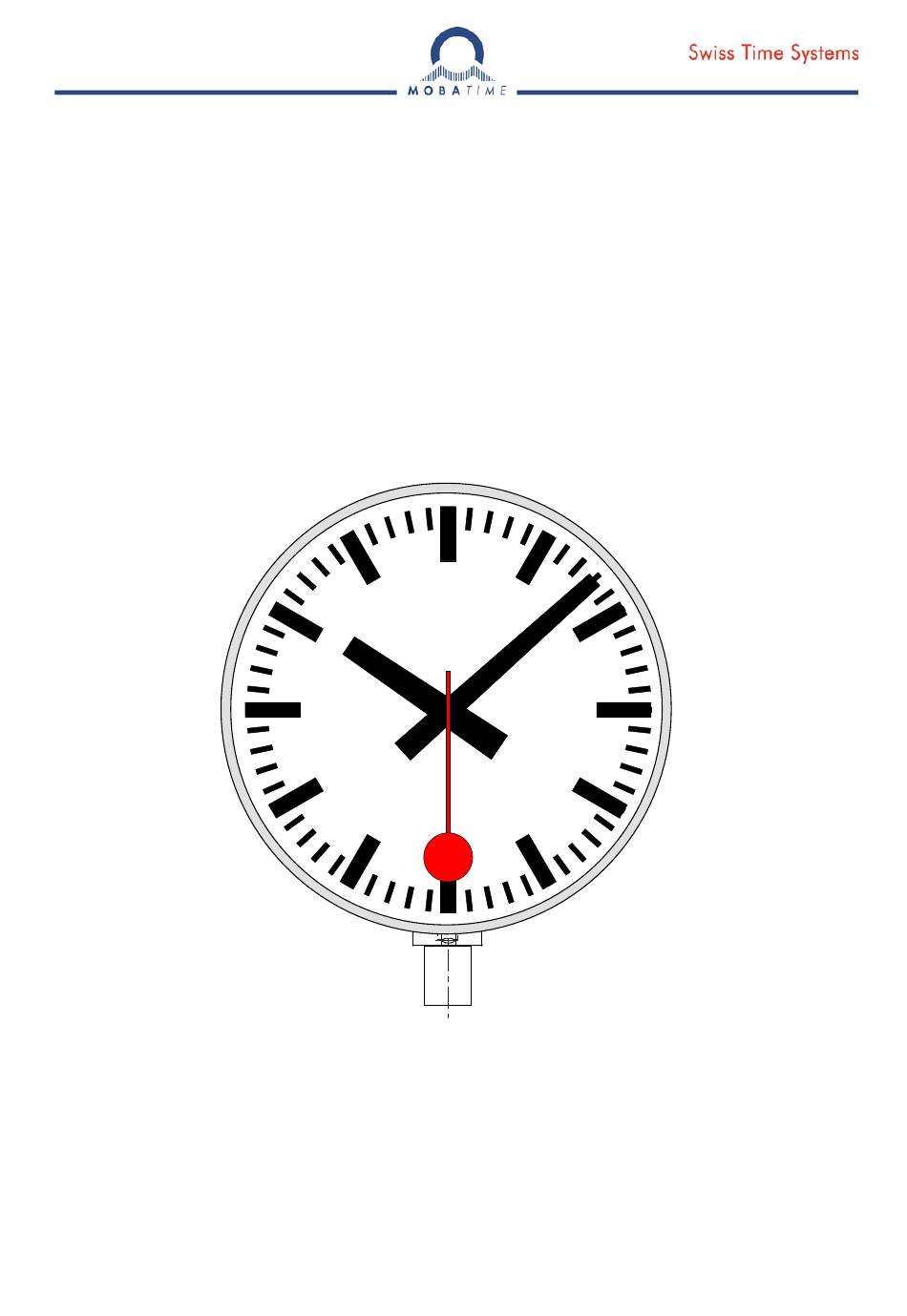

- Page 1 Installation instruction METRO – Outdoor clock, round, single- and double-sided, with or without LED – Illumination Before installation of the clock please read the manual carefully. © MOBATIME TE-801135.03...
- Page 2 6. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER SA – CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
Connection diagrams (double-sided clocks)............... 10 Slave clock for MOBALine (MOBALine only or 230V – power supply) ...... 10 Slave clock for DCF – reception ................10 Slave clock for GPS – reception ................11 © MOBATIME 3 / 12 801135.03... -
Page 4: Electrical Connections
Movement codes R63 Connection diagram with movement BU 190t S 230 The clocks are completely cabled. Do not modify any internal cable connections in the clock. Do not exchange any wires connected to the terminals. © MOBATIME 4 / 12 801135.03... -
Page 5: Set Clock To Correct Time
Correct time and guaranteed time and power reserve, as well as precision of the clock can only be guaranteed after 2-3 days of working. For further information read the documentation of respective movements (see chapter 1.2). © MOBATIME 5 / 12 801135.03... -
Page 6: Relacement Of The Led Illumination
1. Unscrew the 3 screws of the glass ring, pull of the glass ring with the glass and deposit it carefully. 2. Untighten and turn the dial fixation flaps. Carefully pull the dial together with the movement out from clock housing und disconnect the electrical terminals from the clock movement. 3. Remove dial. © MOBATIME 6 / 12 801135.03... -
Page 7: Exchange Of Led Illumination Band
4. Pull the glass ring with the glass carefully over the housing frame and fix the ring with the 3 screws. Check, that the cables do not affect the clock illumination with shadows on the dials. © MOBATIME 7 / 12... -
Page 8: Cleaning
4 Significant Documents Movement MLU 190t: BE – 800565 Movement MLU 190t S 230: BE – 800642 Movement BU 190t S 230: BE – 800602 DCF 4500: TE – 800537 GPS 4500: TE – 800348 © MOBATIME 8 / 12 801135.03... -
Page 9: Connection Diagrams (Single-Sided Clocks)
Power supply for LED-illumination Movement 2 Power supply 230 V AC Illumination 230 V AC Power supply 230 V AC Movement 1 Movement yellow green Movement 2 Receiver Time signal brown Movement 1 white All jumpers removed © MOBATIME 9 / 12 801135.03... -
Page 10: Connection Diagrams (Double-Sided Clocks)
Power supply LED-illumination Power supply 230 V AC Movement 2 Illumination 230 V AC Power supply 230 V AC Movement 1 Movement Movement 2 brown DCF-Receiver Time signal white Movement 1 All jumpers removed © MOBATIME 10 / 12 801135.03... -
Page 11: Slave Clock For Gps - Reception
Power supply 230 V AC Movement 2 Illumination 230 V AC Power supply 230 V AC Movement 1 Movement yellow green Movement 2 GPS- Receiver Time signal brown Movement 1 white All jumpers removed © MOBATIME 11 / 12 801135.03... - Page 12 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
