EK-Pro

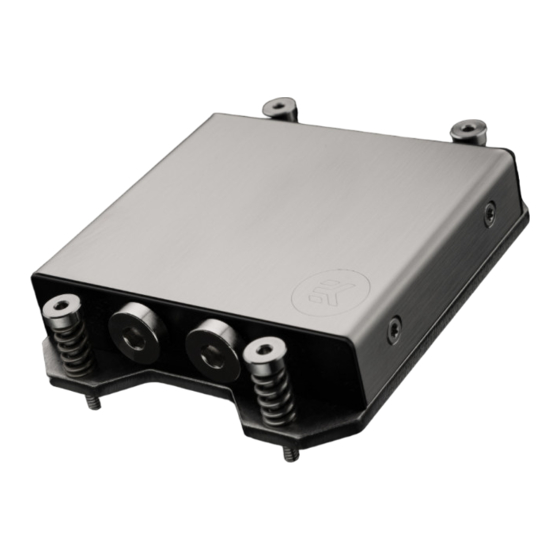

CPU Water Block AM5
AM5 NI + POM-C | AM5 AL + POM-C | AM5 RACK NI + POM-C | AM5 RACK AL + POM-C
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-Pro AM5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ekwb EK-Pro AM5 Series

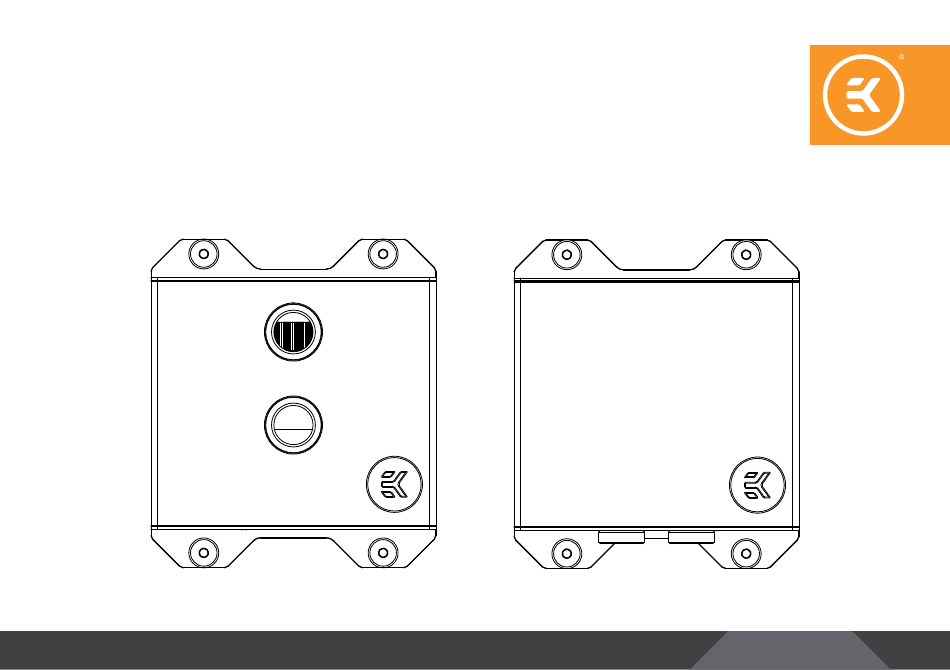

  • Page 1 EK-Pro CPU Water Block AM5 AM5 NI + POM-C | AM5 AL + POM-C | AM5 RACK NI + POM-C | AM5 RACK AL + POM-C USER GUIDE...
  • Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY BOX CONTENTS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS INSTALLING THE WATER BLOCK CLEANING THE CPU THERMAL COMPOUND APLICATION INSTALLING THE WATER BLOCK ASSEMBLY INSTALLING THE FITTINGS TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
  • Page 4: General Information On Water Block Compatibility

    GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY This CPU liquid cooling unit is pre-assembled for use with modern AMD server socket-type motherboards. By default (out of the box), this water block supports the following CPU sockets: - AMD® Socket AM5 - 4 -...
  • Page 5: Box Contents

    BOX CONTENTS Mounting Mechanism EAN: 3831109905043 Thermal Grizzly Hydronaut (1g) Allen Key 2.5. mm (1 pc) EK-Pro CPU Water Block AM5 Allen Key 5 mm (1 pc) - 5 -...
  • Page 6: Technical Specifications And Product Parts

    TECHNICAL SPECIFICATIONS AND PRODUCT PARTS The following items are enclosed with each EK-Pro AM5 water block, depending on the version: EK-Pro AM5 CPU water block 3831109903223 Ni + POM-C: Position Description Quantity 106244 CPU COLDPLATE Nickel 106249 TOP ACETAL 103287 M3 x 20 ISO 14583 Screw 100442 SEALING GASKET 66 x 2 EPDM70...
  • Page 7 3831109903247 Al + POM-C: Position EAN Description Quantity 106245 CPU COLDPLATE ALU 106249 TOP ACETAL 103287 M3 x 20 ISO 14583 Screw 100442 SEALING GASKET 66 x 2 EPDM70 106242 EK – MOUNTING PLATE 106247 JET PLATE ALU 106251 TOP COVER 103089 M3 x 5 ISO 14581 Screw 106248...
  • Page 8: Installing The Water Block

    INSTALLING THE WATER BLOCK STEP 1 CLEANING THE CPU NON-ABRASIVE CLOTH Wipe the CPU’s contact surface (by using non–abrasive cloth or Q-tip). STEP 1 STEP 2 THERMAL COMPOUND APLICATION Applying thermal compound: on a clean IHS, apply a line of thermal compound and spread it over the whole CPU heat spreader (IHS) with a credit card or equivalent.
  • Page 9: Installing The Water Block Assembly

    When installing the water block onto the CPU, position it so that the EKWB logo is pointing toward the lower right corner, to ensure optimal performance of the product. Align the water block over the mounting screws on the AM5 motherboard.
  • Page 10: Installing The Fittings

    STEP 4 CLAMP INSTALLING THE FITTINGS Carefully identify the direction of the flow in your circuit. For the BARB non-rack version, EK recommends the use of EK-HFB 10 mm barb OUTLET fittings and EK-Tube ZMT 10/16 mm Matte Black tubing. For the rack version, EK-HFB Fitting 6 mm G1/8 and EK-Tube ZMT 6/9mm Matte INLET Black tubing is recommended.
  • Page 11: Testing The Loop

    TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components.
  • Page 12: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
