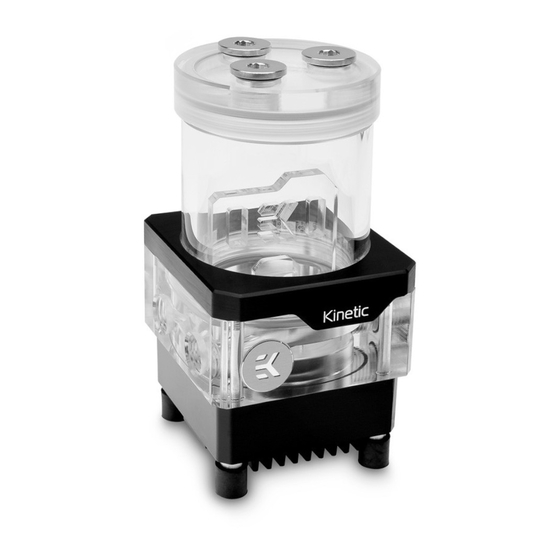

- Page 1 EK-Quantum Kinetic TBE DDC PWM PUMP & RESERVOIR COMBO INSTALLATION MANUAL...
- Page 2 EK-Quantum Kinetic TBE 120/160 DDC - Exploded View Sealing Gasket DDC Pump Motor DDC Heatsink Housing M4 DDC Screw Vibration Damper - 2 -...
-
Page 3: Installing The Assembly
INSTALLING THE ASSEMBLY EK-Quantum Kinetic TBE DDC can be used in any mounting configuration (position) apart from being mounted upside down! Mounting the pump upside down may result in pump running dry and eventually lead to premature failure of the pump! Pump Bracket EK-Quantum Kinetic TBE DDC... - Page 4 1. Installing EK-Quantum Kinetic TBE 120/160 DDC combo unit using the EK-UNI Pump Bracket (sold separately): EK-Quantum Kinetic TBE DDC Pump Bracket PVC Washer M4 X 4 Screw DIN 7984 - 4 -...
- Page 5 Using the Vertical EK-UNI Pump Bracket (sold separately): Pump bracket - Vertical PVC Washer M4 X 4 Screw DIN 7984 - 5 -...
- Page 6 2. Installing the EK-Quantum Kinetic TBE 120/160 DDC combo unit directly into the chassis: - 6 -...
- Page 7 The assembly can be mounted on any flat surface inside your computer chassis. You must drill four (4) 4.2 mm holes using the power drill in a 50 x 50 mm square pattern. Please follow these steps: - Screw on the Vibration Dampers on DDC Screws - Drill four (4) 4.2 mm holes into the chassis - Use enclosed M4 x 4 mm screws and PVC washers to secure the reservoir to the chassis...
- Page 8 USING TOP PORT AS INLET EK-Fitting Internal Tube EK-Quantum Kinetic TBE DDC - 8 -...
- Page 9 EK-Quantum Kinetic TBE 160 DDC combo unit: The internal tube, which is enclosed in a mounting Kit, can be used for fluid intake into the reservoir. Make sure that the sealing gasket on the inner tube is placed correctly. EK-Quantum Kinetic TBE 120 DDC combo unit: In the case of 120 Version, please follow these steps: - Unscrew the reservoir and take off the pre-installed Anticyclone...
- Page 10 ATTACHING FITTINGS EK-Plugs G1/4 OUTLET INLET - 10 -...
- Page 11 EK recommends you use the EK-Quantum fittings with EK-Quantum Kinetic TBE DDC series combo units. If you use barbs, ensure that tubes are securely attached by using the hose clamps or an appropriate substitute. All unused ports should be blocked with the enclosed G1/4 Plugs.
- Page 12 CONNECTING THE D-RGB LIGHTS D-RGB Header RGB Header - 12 -...
- Page 13 Plug the 3-pin connector from the EK-Quantum Kinetic TBE DDC to the D-RGB header on the motherboard. The LEDs will work if the pin layout on the header is +5V GRB. Please ensure that the arrow on the connector is plugged into the +5V line, as indicated on your motherboard.
- Page 14 TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect the power to any of the other components.
-
