Summary of Contents for ekwb EK-Vector Radeon RX 5700 + XT

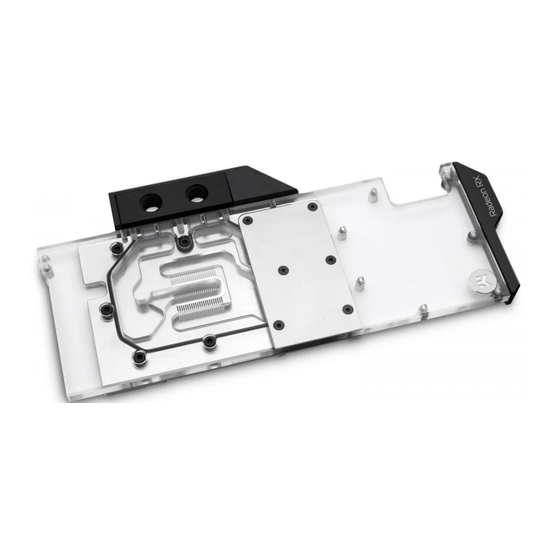

- Page 1 EK-Vector Radeon RX 5700 + XT GPU WATER BLOCK INSTALLATION MANUAL...
- Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR GRAPHIC CARD INSTALLING THE WATER BLOCK CHECKING FOR CONTACTS INSERTING THE CARD IN YOUR PC CASE INSTALLATION OF FITTINGS AND TUBING CONNECTING THE RGB LED STRIP (optional) SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Preparing Your Graphic Card
PREPARING YOUR GRAPHIC CARD STEP 1 REMOVING THE FACTORY PROVIDED BACKPLATE Remove all encircled screws using a Phillips head screwdriver, then take off the backplate. STEP 1 STEP 2 REMOVING THE STOCK COOLER Remove the remaining screws as shown below. The cooler can now be gently removed, take care to unplug the LED and Fan connections. - Page 5 STEP 3 STEP 4 APPLYING THERMAL COMPOUND Lightly cover AMD GPU chip with enclosed EK-TIM Ectotherm thermal grease. EKWB recommends to apply the thermal grease in a cross form to best performance( see sample picture). STEP 4 - 5 -...
- Page 6 STEP 5 CUTTING THERMAL PADS Your block is supplied with thermal pads that need to be cut into smaller 1: Thermal Pad E – 0.5 mm pieces in order to cover all VRM components. PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION.
-
Page 7: Installing The Water Block
ATTACHING THE BLOCK TO THE GRAPHIC CARD Use a Phillips head screwdriver with the enclosed M2,5 x 4 AX1 screws. EKWB recommends users to start tightening the screws evenly around the GPU core and then to continue outwards. Always use a plastic washer under every screw. -
Page 8: Checking For Contacts
In case you fail to obtain good contact, please check again that your thermal pad thickness or contact our support service at: http://www.ekwb.com/support. INSERTING THE CARD IN YOUR PC CASE Carefully lift your graphics card with block installed and insert it into the correct PCIe expansion slot on your PC’s motherboard (consult... -
Page 9: Installation Of Fittings And Tubing
INSTALLATION OF FITTINGS AND TUBING Screw in two male G1/4 threaded fittings. Attach the liquid cooling Tubing tubes and connect the water-block(s) into the cooling loop. EKWB EK-Fitting recommends using EK- fittings with the EK-Vector series water blocks. If you are using barb fittings please add hose clamps or an appropriate substitute to ensure that the tubes are firmly secured. -
Page 10: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
