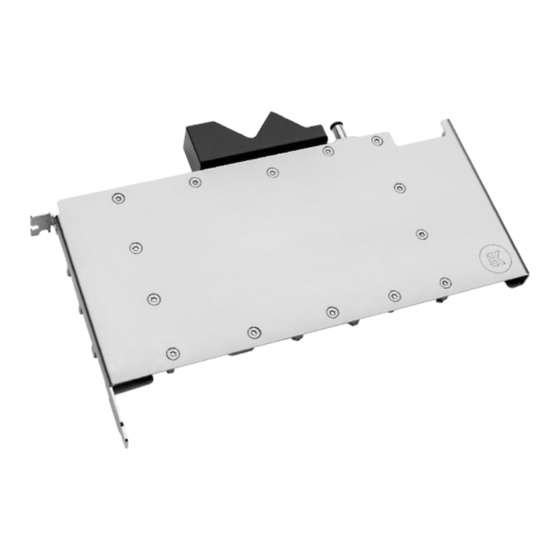

- Page 1 EK-PRO GPU WB RTX 30x0 GPU WATER BLOCK USER GUIDE...
- Page 2 Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process. Remove your graphics card from the computer for the safest mounting process to prevent any possible damage to your GPU or its circuit board (PCB).
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE BACKPLATE CHECKING THE CONTACT IN CASE OF HIGH TEMPERATURES INSERTING THE GRAPHICS CARD INTO THE CHASSIS... -
Page 4: Box Contents
BOX CONTENTS EK-Pro GPU WB RTX 3080/3090 Ni +Inox Thermal PAD F 1.0mm - (120x16mm) Washer POLYAMID M2.5 0.5mm Screw M2.5x8 ax1 (9x) (1x) 3831109848616 (7x) 3830046996732 (16x) 8623 8104A EK-TIM Ectotherm (1g) (1x) EK-PLUG G1/4 (2x) Screw M3x4 DIN7985 (2x) Nut M2.5 (6x) 3830046999153 830046998446... -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 219.3 mm 18.8 mm 230.3 mm 21.8 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Position EAN Description Quantity Copper – Pro GPU WB RTX 3080- 103757 3090 Coldplate (Ni) 100845 Standoff M4/M2.5x2.5 - HEX 8627 Washer POlYAMID M2.5 0.7mm 100006 Screw M4x27 DIN7984 103090 Screw M3x6 ISO 14581 TX – inox 102931 OR Vector RE 30x0 029 –... -
Page 7: Preparing The Graphics Card
PREPARING THE GRAPHICS CARD STEP 1 REMOVING THE STOCK COOLER Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the EK-Pro GPU WB RTX 30x0 water block onto the graphics card. -
Page 8: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS Your GPU water block comes with un-cuted thermal pads to cover all the VRM components, such as COILs, MOSFETs, and drivers. Please Thermal Pad F 1.0 mm use 1.0mm thick thermal pads which should be placed on the PCB, as illustrated below. -
Page 9: Installing The Water Block
STEP 2 Make sure that three (3) the self-adhesive M2,5 plastic washers are in place as shown in picture. Pay attention to the front area, where I/O ports are, those metal springs may get in the way when inserting, holes on PCB and block needs to be perfectly aligned! STEP 2 INSTALLING THE WATER BLOCK... - Page 10 STEP 2 To mount the graphics card onto the waterblock, stock cross backplate needs to be use. Attach it with five (5) M2.5 Washers and M2.5 X 4 AX1 screws. M2.5 x 4 AX1 SCREW M2.5 PVC WASHER STEP 2 STEP 3 Thermal Pad F 1.0 mm Install 1.0mm thick thermal pads on the PCB, as illustrated below...
-
Page 11: Attaching The Backplate
Then repeat Steps from the previous section to re-attach the block. In case you fail to obtain good contact, please check again or contact our support service at https://www.ekwb.com/customer-support/. - 11 -... -
Page 12: Inserting The Graphics Card Into The Chassis
INSERTING THE GRAPHICS CARD INTO THE CHASSIS Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCI express expansion slot. Please keep in mind that your graphics card is heavier than before it was equipped with the water block. -
Page 13: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
