Ethernet Interface Connection

interface of the WAN equipment. Also, connect LAN1 interface of the gateway with
LAN interface of the user PC.

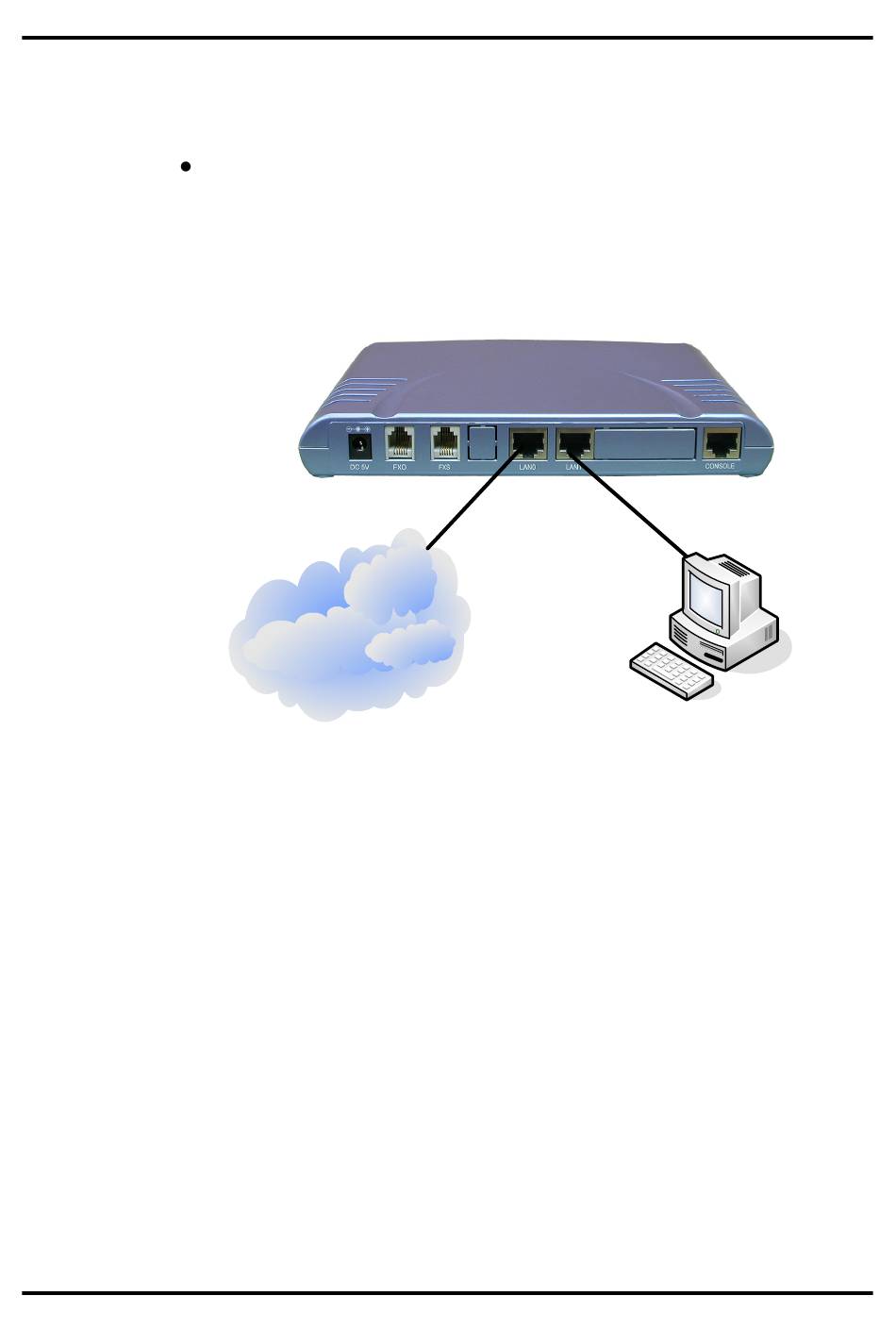

Figure 3-2: Connect VoiceFinder AP200 Gateway with WAN and normal PC

AddPac Technology Co., Ltd.
With RJ45 UTP cable, connect LAN0 port of VoiceFinder AP200 Gateway and LAN
WAN
(IP Network)
Ethernet Cable
(RJ45)
PC
