VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0

Rear View of AP200

The rear side of the VoiceFinder AP200 VoIP Gateway includes 10Mbps Ethernet
Interface for WAN/LAN interface, PSTN port, RS-232C serial port for management, and
FXS/ FXO interface port for voice signal processing.
environment for WAN-to-LAN routing service.
Standard Configuration Model
Following figure shows the standard configuration of the back panel of VoiceFinder
AP200 gateway.

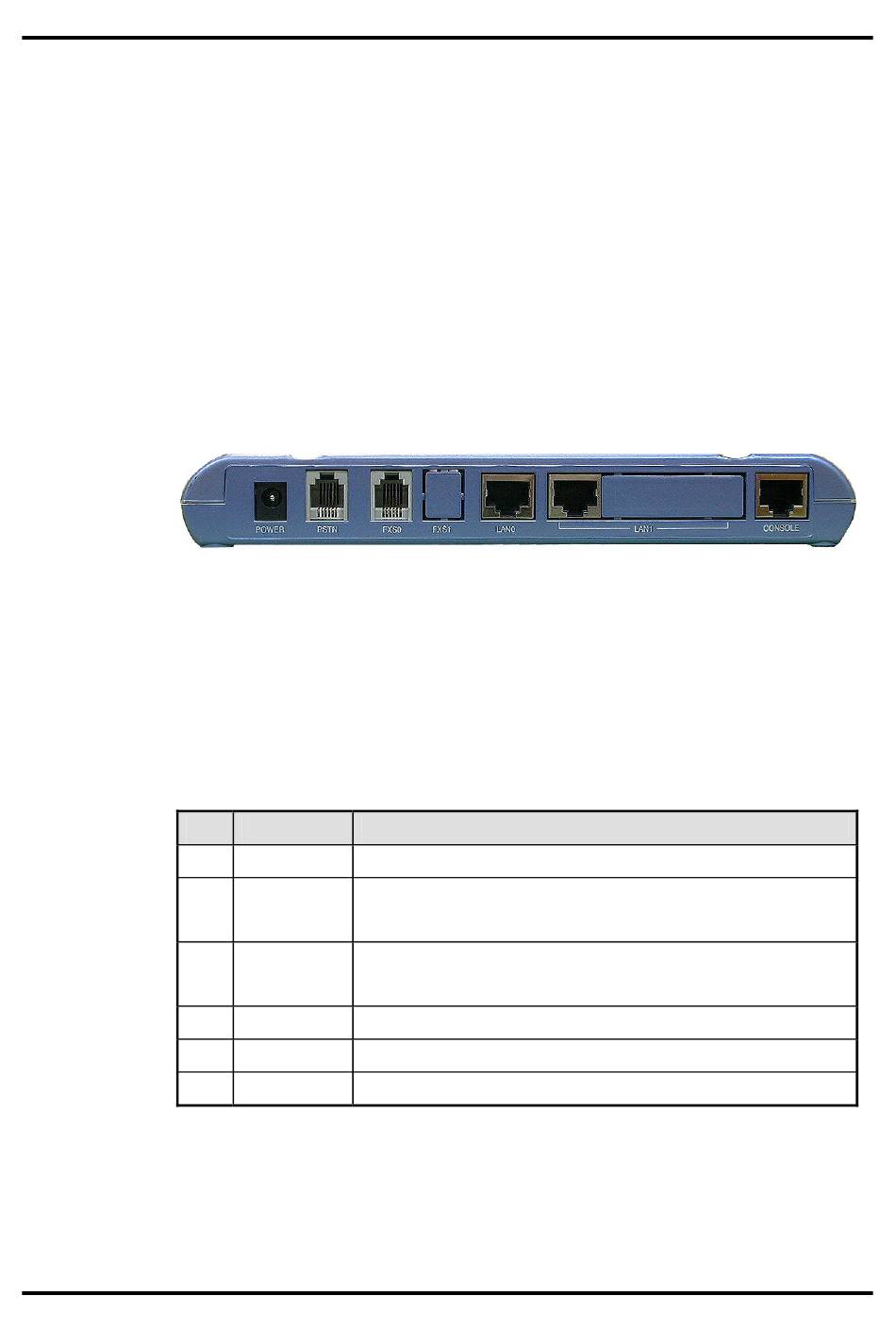

Figure 1-4: The rear panel image of VoiceFinder AP200 Gateway
The following Table 1-2 explains the rear side panel interface of AP200 VoIP gateway.
(Varies depend on each VoiceFinder AP200 Gateway models)

Table 1-2: The interfaces and explanation of the rear panel of AP200 Gateway

No.
(1)
(2)
(3)
(4)
(5)
(6)
AddPac Technology Co., Ltd.
Interface
DC power
External DC power supply input
This port is used to connect PSTN subscriber line for VoIP
PSTN
service via PSTN backup (RJ11)
1 FXS Port: analog phone or FAX machine can be connected
FXS (0)
(RJ11)
LAN0
10Mbps Ethernet interface for WAN connection. (RJ45)
LAN1
10Mbps Ethernet port to connect PC used on LAN.
Console
Console interface for network management. (RJ45)
It can also form network
Explanation
