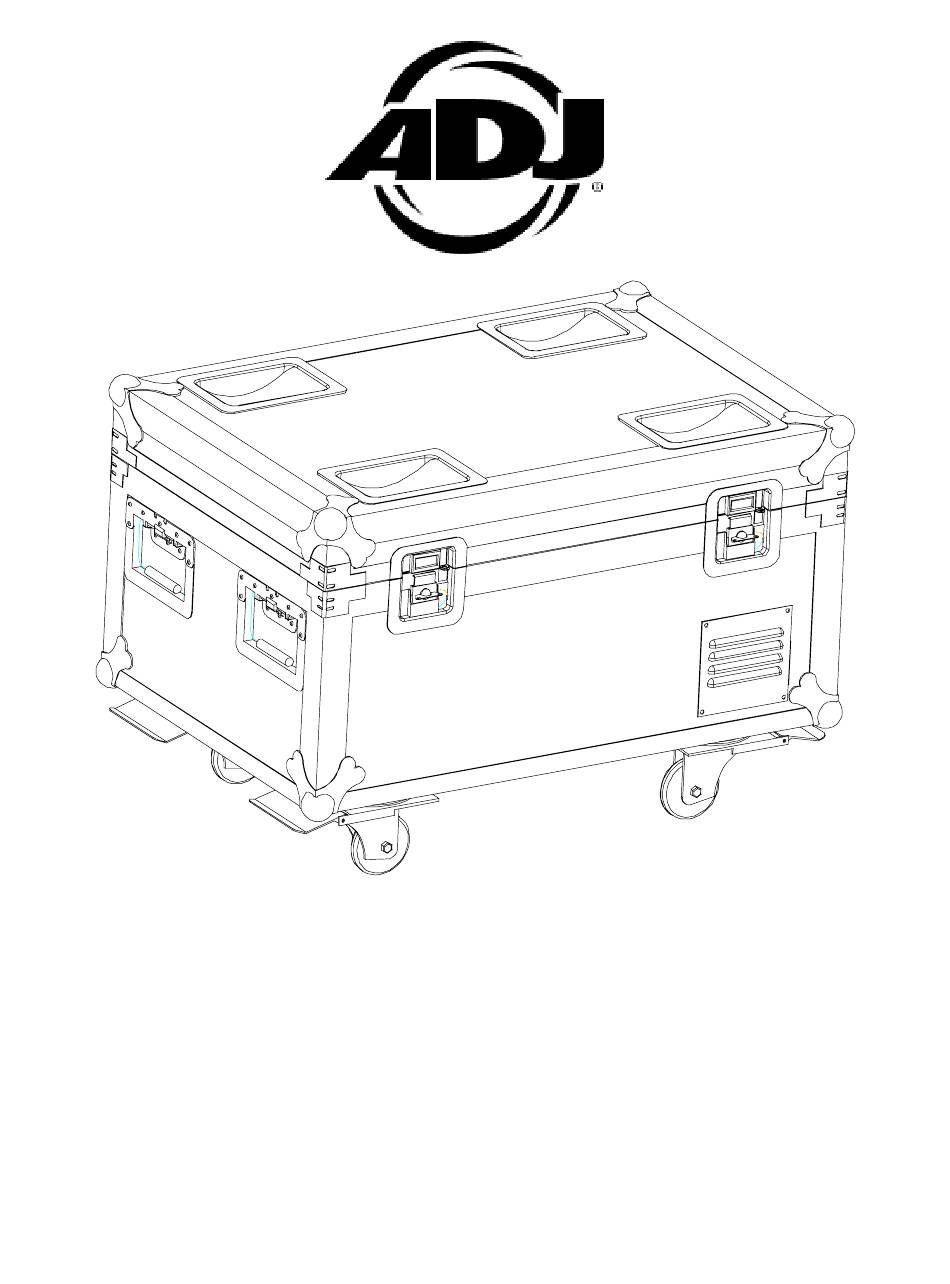

- Page 1 ELEMENT H6 PAK ELEMENT H6 PAK CHR User Manual...
- Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S General Information Key Features | Warranty Returns Limited Warranty (USA Only) Safety Guidelines Overview - Flight Case Overview - Light Fixture Wifly Setup UC IR Remote Installation In-Case Charging Control Panel... -
Page 4: General Information
Introduction: Package Includes: 6x Element H IP fixtures (Black) packaged in an Element H6 FC with IR remote, AC Cable and charging system Please keep this manual with the device for future reference. Customer Support: Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. -
Page 5: Key Features | Warranty Returns
K E Y F E A T U R E S INCLUDED ITEMS: • Element H IP or Element H IP CHR fixtures (x6) • Element H6 FC flight case (x1) • UC IR24 Remote (x1) • AC Cable and Charging System (x1) IP RATING: An IP rated lighting fixture is commonly installed in outdoor environments and has been designed with an enclosure that effectively protects the ingress (entry) of external foreign objects such as dust and... -
Page 6: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 7: Safety Guidelines
S A F E T Y G U I D E L I N E S For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Be sure to save the packing carton in the unlikely event the device has to be returned for service. •... - Page 8 This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not respon- sible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
- Page 9 S A F E T Y G U I D E L I N E S FLIGHT CASE LID When opening the flight case, the lid must be locked in place manually. The lid support prop is located on the right-hand side of the flight case, near the power cable storage compartment. The lower end of the prop is fixed to the flight case, and the free upper end contains a cut-out groove.
-
Page 10: Overview - Flight Case
O V E R V I E W - F L I G H T C A S E FLIGHT CASE Handles Power In Fuse *Charging Indicator Power out Lid Latches *Note: Charge indicator is red when charging, and green when complete. Charge indicator on the case displays charge status of the entire six-unit set. -
Page 11: Overview - Light Fixture
O V E R V I E W - L I G H T I N G F I X T U R E Display Screen Safety Cable Eyelet Mode/Enter/Up/Down Kensington Key Slot Buttons Charging Port Power Switch Kickstand Release Kickstand... -
Page 12: Wifly Setup
W I F L Y S E T U P These devices do not feature physical DMX connector ports. Therefore, in order to utilize DMX control, the user must first set up the devices to run wireless DMX control. Follow the direc- tions below to configure wireless DMX control: First, select the DMX Channel Mode for that you would like the device to operate in. - Page 13 W I F L Y S E T U P There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maximize the chances of having a clear path for the wireless signal to reach the device: •...
-
Page 14: Uc Ir Remote
I R R E M O T E C O N T R O L This unit can be operated using the ADJ UC IR24 remote control. Please note that this unit can only be controlled when it has been set to Primary mode. The unit will NOT respond to com- mands when it has been set to Secondary mode. -
Page 15: Installation
I N S T A L L A T I O N IP RATING The ELEMENT H IP is IP54 rated. Ingress of dust is not entirely prevented, but it will not enter in suf- ficient quantity to interfere with satisfactory operation of the device. The ELEMENT H IP is also pro- tected against splashing water from any direction. - Page 16 I N S T A L L A T I O N CLAMP INSTALLATION The Element H6 IP features a mounting clamp attachment point on the side of the device, as well as an eyelet for safety cable at the bottom of one foot (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure appropriately rated clamps (not included) to the clamp attachment point, as well as an appropriately rated safety clamp.
- Page 17 I N S T A L L A T I O N KICKSTAND FOR FLOOR PLACEMENT The Element H6 IP can also be placed on the floor to provide an uplighting display, and features a retractable kickstand that allows the device to be angled in the direction of the desired display. To deploy the kickstand, simply toggle the switch on the underside of the device, near the power charging port (1).
- Page 18 I N S T A L L A T I O N KENSINGTON KEY SLOT The device features a slot for a Kensington-type security device that can be used to prevent theft. The key slot is located near the bottom of one of the device’s feet, as shown in the illustration below. Be sure to attach the security device to a sturdy, fixed anchor point.
-
Page 19: In-Case Charging
Daisy Chain Power Linkage section of this manual for details. 5. Place an ADJ Element H6 fixture in any one of the charging compartments in the flight case. Up to (6) units can be charged at one time. The charging indicator located beside the power ports will illuminate to indicate that your device is charging. -
Page 20: Control Panel
C O N T R O L P A N E L This fixture includes an easy to navigate control panel display, from which all necessary settings and adjustments can be made. Press the MODE button to scroll through the main menu options, then press ENTER to select the currently displayed option. -
Page 21: System Menu
S Y S T E M M E N U Set the starting 001 - 512 DMX Address DMX address of the device DMX Channel Set the DMX 12ch Mode mode 14ch 15ch 17ch Device holds last received chan- nel values in the Hold Last event that DMX signal is lost or... - Page 22 S Y S T E M M E N U Time before display goes to Screen Saver Off, 1sec - 10sec sleep; “Off” keeps Delay screen on at all Display times Off - 30sec, 1 min Screen Lock Rotate Display Yes / No English / Spanish Language...
- Page 23 S Y S T E M M E N U 000 - 255 Green 000 - 255 Blue 000 - 255 White 000 - 255 Amber 000 - 255 000 - 255 Color Macros 000 - 255 MANUAL Color Temp Linear 000 - 255 CONTROL Color Temp 000 - 255...
-
Page 24: Dmx Addressing
D M X A D D R E S S I N G All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”... -
Page 25: Dmx Traits
D M X T R A I T S CHANNEL FUNCTION VALUES 12CH 14CH 15CH 17CH All Red, 0% - 100% 000 - 255 All Green, 0% - 100% 000 - 255 All Blue, 0% - 100% 000 - 255 All White, 0% - 100% 000 - 255 All Amber, 0% - 100%... - Page 26 D M X T R A I T S CHANNEL FUNCTION VALUES 12CH 14CH 15CH 17CH Auto Programs (continued) 194 - 210 Auto Program 12 211 - 226 Auto Program 13 227 - 255 No Function Auto Programs Speed, slow to fast 000 - 255 Auto Programs Fade, least to most 000 - 255...
-
Page 27: Ir Default Values | Editing Rgba Ir Button Values
I R D E F A U L T V A L U E S BUTTON GREEN BLUE WHITE AMBER E D I T I N G R G B A I R B U T T O N V A L U E S These fixtures allow the user to create custom RGBA values and assign them to the numbered keys (0-15) on the remote control. -
Page 28: Color Macros
C O L O R M A C R O S DMX VALUES COLOR MACRO DMX VALUES COLOR MACRO 144-147 G+W+UV 148-151 G+A+UV 8-11 Green 152-155 B+W+A 12-15 Blue 156-159 B+W+UV 16-19 White 160-163 B+A+UV 20-23 Amber 164-167 W+A+UV 24-27 168-171 R+G+B+W 28-31... -
Page 29: White Color Temperature Presets
W H I T E C O L O R T E M P E R A T U R E P R E S E T S Color Temp DMX Value Color Temp DMX Value Color Temp DMX Value No Function 000 - 022 5300... -
Page 30: Dimmer Curves And Dimmer Modes
D I M M E R C U R V E S A N D D I M M E R M O D E S... -
Page 31: Cleaning & Maintenance | Daisy Chain Power Linking
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from an authorized ADJ dealer. -
Page 32: Torque Settings For Screws
T O R Q U E S E T T I N G S F O R S C R E W S TORQUE DRIVERS (Recommended): UTICA TS-30 (Shown) TORQUE DRIVER (Alternate): • Proto J6107A • Wiha 28887 The recommended torque setting for the Element H IP / Element H IP CHR is 13kgf-cm. -
Page 33: Fuse Replacement
F U S E R E P L A C E M E N T The flight case features a replaceable fuse. To replace, disconnect the flight case from the power source, then use a screw driver to unscrew the fuse holder located beside the power ports. Remove the bad fuse and replace with a new one, then screw the fuse holder back in. -
Page 34: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S 26.41 in (671mm) 18.14 in (461mm) 17.48 in (444mm) 25.70 in (653mm) 5.67 in. (144.06mm) Dimensions not to scale... -
Page 35: Specifications
S P E C I F I C A T I O N S Optical: • 4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber White & UV) • Life expectancy: rated at 50,000 hrs. • LUX: 1117 @ 2M; 298 @ 4M •...
