- Page 1 ELEMENT H6 FC User Manual...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
TABLE OF CONTENTS General Information Key Features / Warranty Returns Limited Warranty Safety Guidelines Overview In-Case Charging Cleaning & Maintenance Fuse Replacement Dimensional Drawings Specifications... -
Page 4: General Information

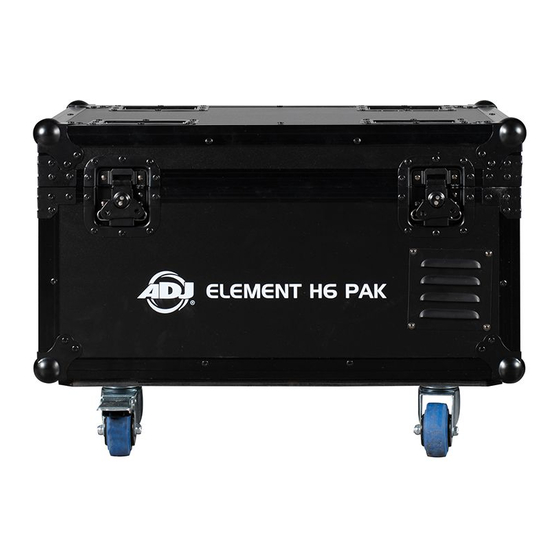

GENERAL INFORMATION Introduction: Congratulations on your purchase of the ADJ ELEMENT H6 FC! The ELEMENT H6 FC is a charging flight case for (6) Element H IP units, and comes with an IR remote and charging cable. This unit has been designed to perform reliably for years when the guidelines in this booklet are followed. -
Page 5: Key Features / Warranty Returns
KEY FEATURES CASE FEATURES • Houses / Transports and Charges (6) Element H6 fixtures (not included) • Power Input/Output: AC 100-240V, 50/60Hz • Charging Status Indicator • Storage Compartment WARRANTY RETURNS All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. -
Page 6: Limited Warranty
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 7: Safety Guidelines
SAFETY GUIDELINES For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Be sure to save the packing carton in the unlikely event the device may have to be returned for ser- vice. - Page 8 SAFETY GUIDELINES FLIGHT CASE LID When opening the flight case, the lid must be locked in place manually. The lid support prop is located on the right-hand side of the flight case, near the power cable storage compartment. The lower end of the prop is fixed to the flight case, and the disconnected upper end contains a cut-out groove.
-
Page 9: Overview
OVERVIEW FLIGHT CASE Handles Power In Fuse *Charging Indicator Power out Lid Latches *Note: Charge indicator is red when charging, and green when complete. Charge indicator on the case displays charge status of the entire six-unit set. For individual charge status, please refer to the charge indicator on each individual unit. -
Page 10: In-Case Charging
Daisy Chain Power Linkage section of this manual for details (page 11). 5. Place an ADJ Element H6 in any one of the charging compartments in the flight case. Up to (6) units can be charged at one time. The charging indicator located beside the power ports will illumi- nate to indicate that your device is charging. -
Page 11: Cleaning & Maintenance
MAINTENANCE Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Please refer to the following points during routine inspections: •... -
Page 12: Fuse Replacement
FUSE REPLACEMENT The flight case features a replaceable fuse. To replace, disconnect the flight case from the power source, then use a screw driver to unscrew the fuse holder located beside the power ports. Remove the bad fuse and replace with a new one, then screw the fuse holder back in. Replace only with a new fuse of the same type and rating. -
Page 13: Dimensional Drawings
DIMENSIONAL DRAWINGS 26.41 in (671mm) 18.14 in (461mm) 17.48 in (444mm) 25.70 in (653mm) Dimensions not to scale... -
Page 14: Specifications
SPECIFICATIONS Included in Element H6 FC Flight case for 6x Element H IP or Element H IP Chr, 1x UC-IR, 1x AC Cable, 6 x Charging bases... - Page 15 (page intentionally left blank)
