Selection of detector (C: capacitance): 0 is the arc voltage detection; 1 is capacitive detection. For the

set range and factory value see Table 7-1.
No board drop parameter (b):

In the capacitive detection mode, when the detected height is higher than value b, the cutting torch
stops; when the height returns to the value below it, the automatic height control continues;
In the arc voltage detection mode, when it falls manually, it encounters the zero signal, the cutting torch
rises to b mm in the opposite direction. For the set range and factory value see Table 7-1.
Setting range (V)
Table 7-1
Set range
（V）
Arc voltage
Factory
value（V）
Set range
（mm）
Capacitance
Factory
value
（mm）

7.2 Operation Panel

The operation panel is
Up arrow
function
Page 23
SH-HC30 Height Controller System Manual
H
100～300 10～40
280
20.0～30.0 3.0～10.0
25.0
shown in Figure 7-1.

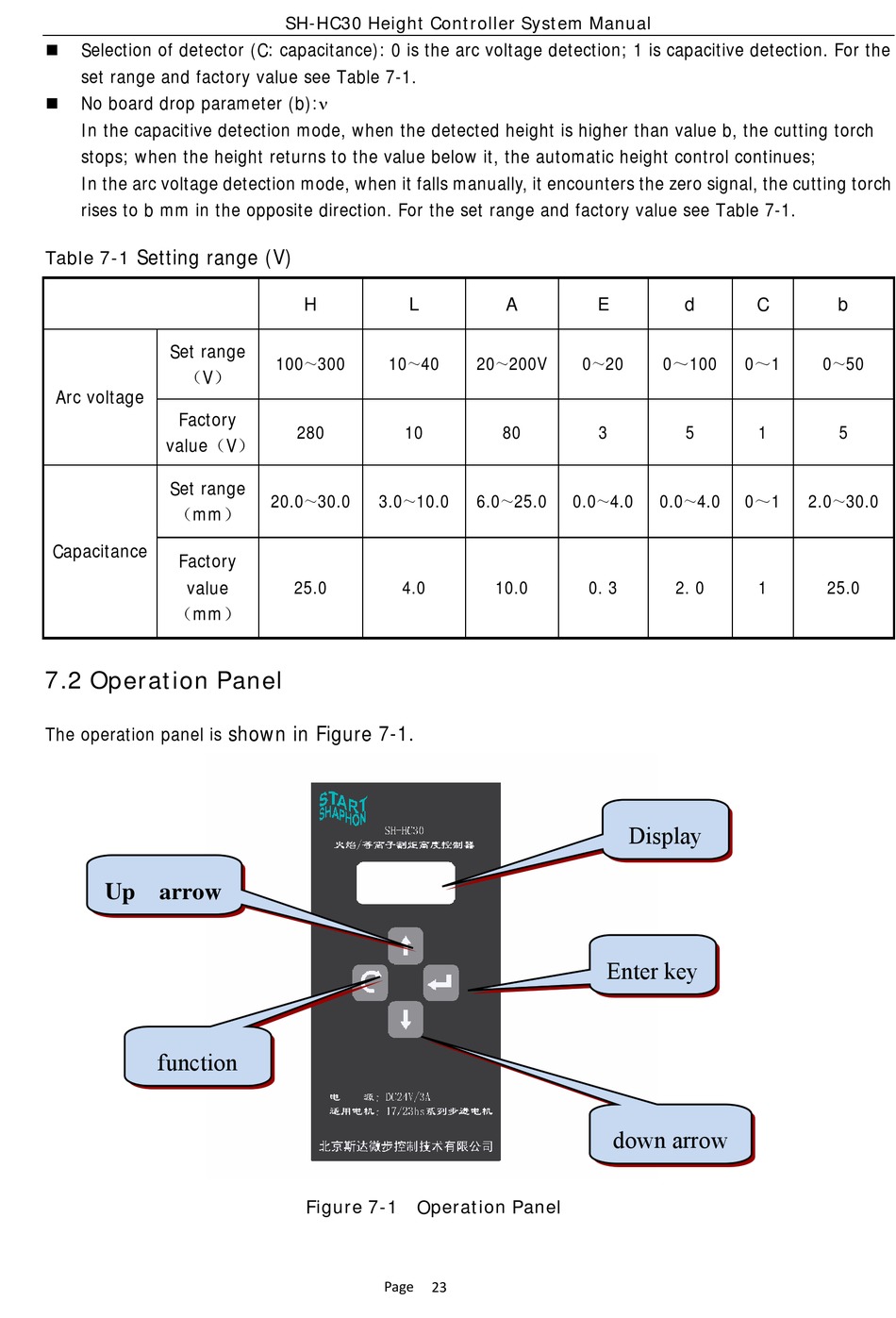

Figure 7-1 Operation Panel
L A
20～200V
10 80
6.0～25.0
4.0 10.0
E d
0～20 0～100
3 5
0.0～4.0 0.0～4.0
0. 3 2. 0
Display
Enter key
down arrow
C b
0～1 0～50
1 5
0～1 2.0～30.0
1 25.0
