MicroStep AHa-S2 Manual

Arc voltage torch height controller
Hide thumbs

Advertisement

Table of Contents

Beijing Flourishing Start Control Technology Co., Ltd.
5F Building 2, No.9 Shuangyuan Road, Shijingshan District, Beijing, China 100041
Tel: 0086 10 8890 9235
Mobile (WhatsApp): 0086 159 010 69532
Email: cuttingcnc@hotmail.com
Skype: henryhaozq
Wechat: hzq123chat
QQ: 297041476

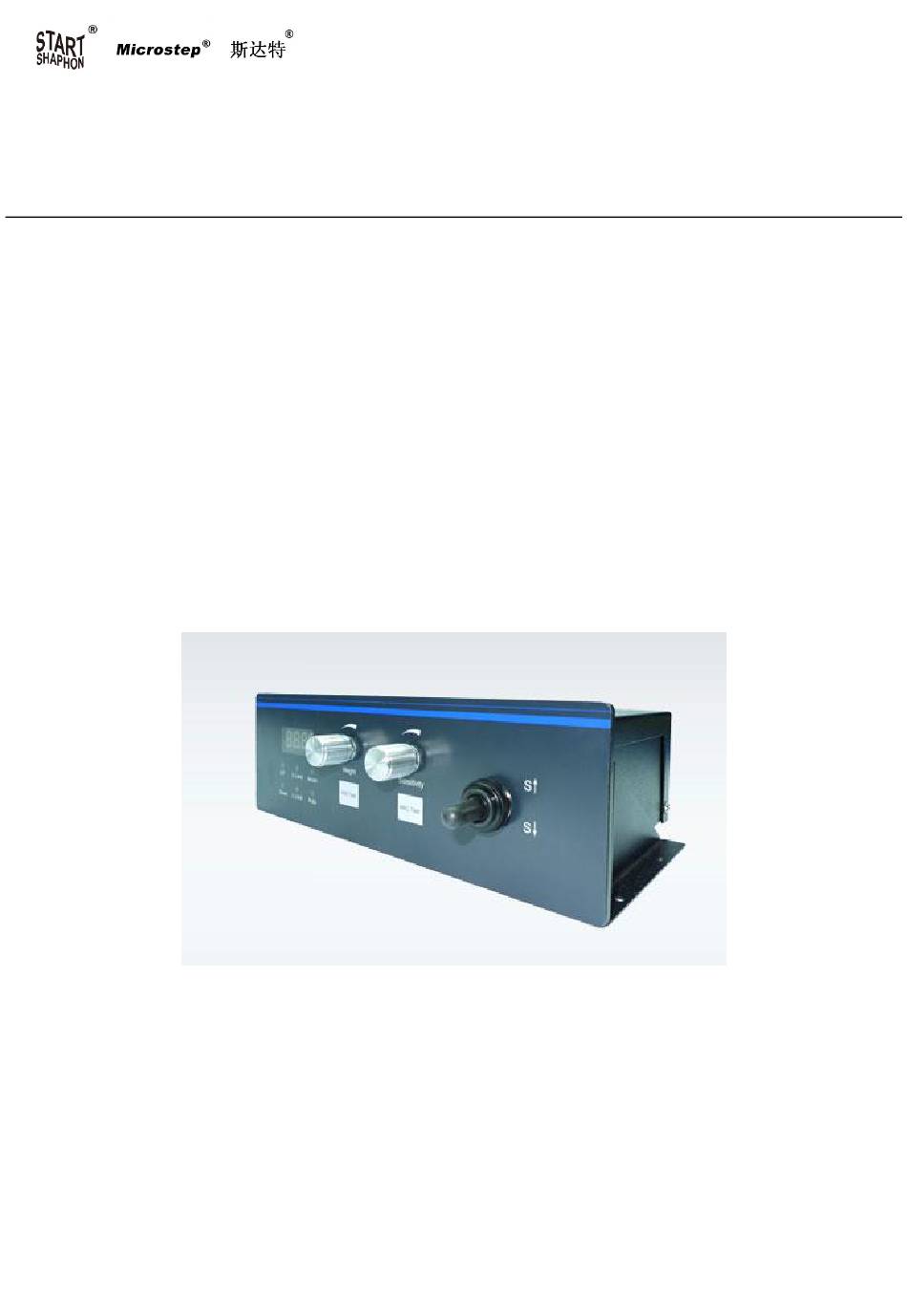

Arc Voltage Torch Height Controller
AHa-S2 & AHa-M2 Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AHa-S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MicroStep AHa-S2

Summary of Contents for MicroStep AHa-S2

  • Page 1 Beijing Flourishing Start Control Technology Co., Ltd. 5F Building 2, No.9 Shuangyuan Road, Shijingshan District, Beijing, China 100041 Tel: 0086 10 8890 9235 Mobile (WhatsApp): 0086 159 010 69532 Email: cuttingcnc@hotmail.com Skype: henryhaozq Wechat: hzq123chat QQ: 297041476 Arc Voltage Torch Height Controller AHa-S2 & AHa-M2 Manual...

  • Page 2: Table Of Contents

    Content Safety---------------------------------------------------------------------------------------------------------3 Warranty-----------------------------------------------------------------------------------------------------3 Basic parameters------------------------------------------------------------------------------------------3 Technical features-----------------------------------------------------------------------------------------3 Installation dimension-------------------------------------------------------------------------------------4 Connection--------------------------------------------------------------------------------------------------5 Panel & function--------------------------------------------------------------------------------------------7...

  • Page 3: Safety

    Processor: industrial ARM process chip Display: 4-digit nixie tube Auto height range: 2~30mm Height adjustment accuracy: ± 0.5mm Power supply: DC24V, 3A Working temperature: 0~40℃ Current of driver inside THC: 1.8A (AHa-S2) and 3A (AHa-M2) Technical Features 1. Height & sensitivity adjustment knob...

  • Page 4: Installation Dimension

    The height and the sensitivity can be statically or dynamically adjusted with the knob, and the value is saved in real time so that the operation is easier and faster. In addition, the pulse adjustment knob can be used longer than the contact potentiometer.

  • Page 5: Connection

    Type 2 Connection Port CN1 Pin No. Definition Instruction DC24V+ (input) Connect with power supply DC24V+ DC24V- (input) Connect with power supply DC24V- DC24V+ (output) Connect with THC divider DC24V+ DC24V- (output) Connect with THC divider DC24V- Arc voltage signal Connect with THC divider arc voltage Port CN2 Pin No.
  • Page 6 Connect with torch up of CNC Down Connect with torch down of CNC Arc input Connect with arc strike of CNC Auto cycle Connect with arc strike of CNC useless Location OK Connect with torch location of CNC Arc OK Connect with arc success of CNC Arc strike output Connect with start signal of plasma power source...

  • Page 7: Panel & Function

    Connect B- of lifter motor Motor power + AHb-S2: DC24V AHb-M2: DC24V Motor power - Panel & Function U: plasma mode, value: 30~250 Before arc strike, it’s the set arc voltage value. After arc strike, it’s the parameter & actual arc voltage value. state display The set arc voltage value decides the cutting height.
  • Page 8 Arcon: arc strike Auto: auto state set U value (cutting height) set b value (initial location height/pierce height) after press the knob in manual state set E value (sensitivity) one-key location (press the knob in manual state): the torch moves down, then touches the plate, then moves up and stops at the location height initial location test, the same function as one-key location...
  • Page 9 Arc Voltage Input -(20~200)V: connect original arc voltage- of plasma power source Arc Voltage Input +COM: connect arc voltage+ of plasma power source Arc Voltage Input -(0.1~5)V: connect 50:1 arc voltage- of plasma power source. And open the box, break the jumper JP2 and connect. Arc Voltage Output: connect arc voltage signal of THC.
  • Page 10 8(VO+) Connect with pin 5 “arc voltage signal” of CN1 9(VO-) Connect with pin 4 ”DC24V- (output)” of CN1...

This manual is also suitable for:

Aha-m2
