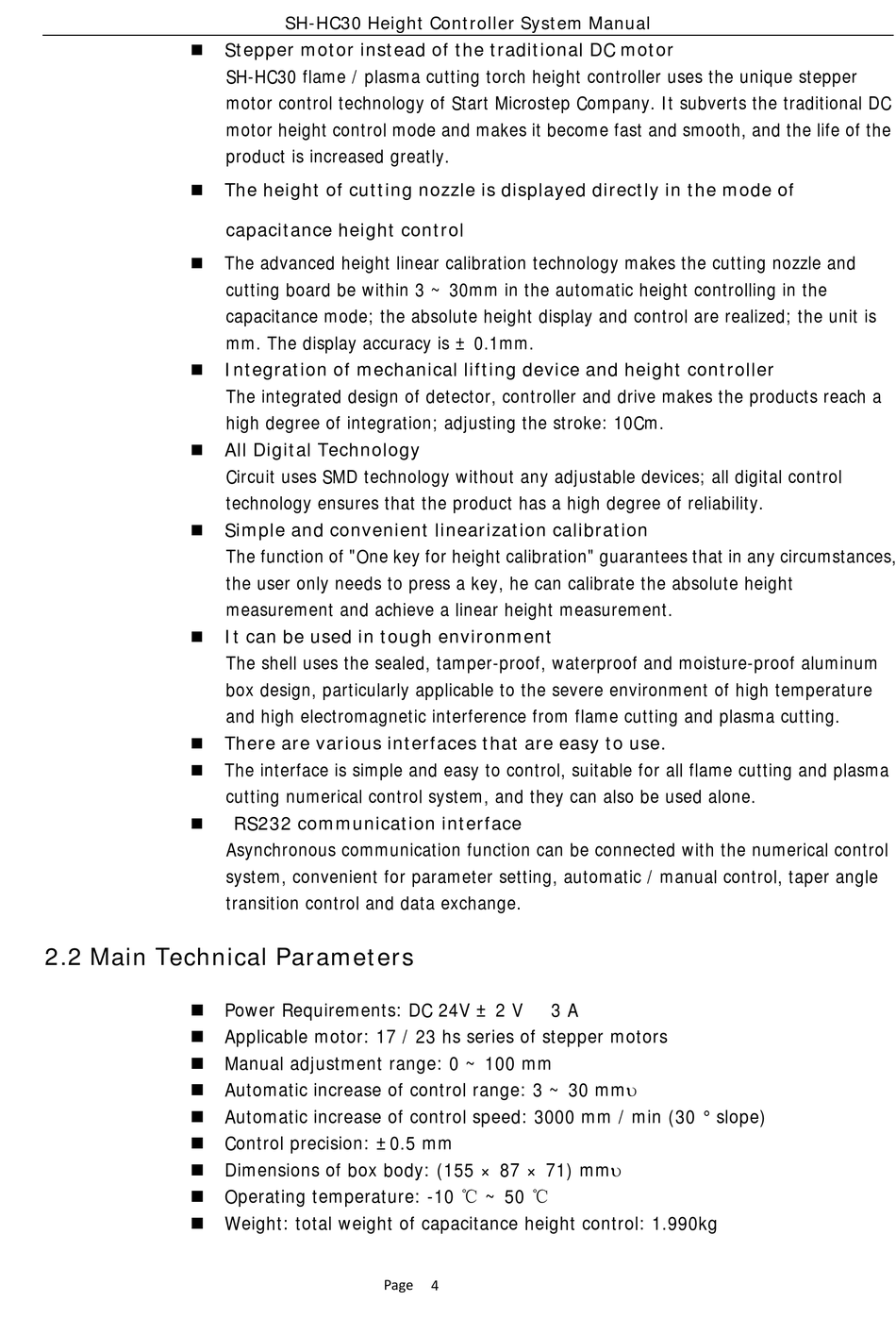

SH-HC30 Height Controller System Manual
Stepper motor instead of the traditional DC motor
SH-HC30 flame / plasma cutting torch height controller uses the unique stepper
motor control technology of Start Microstep Company. It subverts the traditional DC
motor height control mode and makes it become fast and smooth, and the life of the
product is increased greatly.
The height of cutting nozzle is displayed directly in the mode of
capacitance height control
The advanced height linear calibration technology makes the cutting nozzle and
cutting board be within 3 ~ 30mm in the automatic height controlling in the
capacitance mode; the absolute height display and control are realized; the unit is
mm. The display accuracy is ± 0.1mm.
Integration of mechanical lifting device and height controller
The integrated design of detector, controller and drive makes the products reach a
high degree of integration; adjusting the stroke: 10Cm.
All Digital Technology
Circuit uses SMD technology without any adjustable devices; all digital control
technology ensures that the product has a high degree of reliability.
Simple and convenient linearization calibration
The function of "One key for height calibration" guarantees that in any circumstances,
the user only needs to press a key, he can calibrate the absolute height
measurement and achieve a linear height measurement.
It can be used in tough environment
The shell uses the sealed, tamper-proof, waterproof and moisture-proof aluminum
box design, particularly applicable to the severe environment of high temperature
and high electromagnetic interference from flame cutting and plasma cutting.
There are various interfaces that are easy to use.
The interface is simple and easy to control, suitable for all flame cutting and plasma
cutting numerical control system, and they can also be used alone.
RS232 communication interface
Asynchronous communication function can be connected with the numerical control
system, convenient for parameter setting, automatic / manual control, taper angle
transition control and data exchange.
Power Requirements: DC 24V ± 2 V
Applicable motor: 17 / 23 hs series of stepper motors
Manual adjustment range: 0 ~ 100 mm
Automatic increase of control range: 3 ~ 30 mm
Automatic increase of control speed: 3000 mm / min (30 ° slope)
Control precision: ±0.5 mm
Dimensions of box body: (155 × 87 × 71) mm
Operating temperature: -10
Weight: total weight of capacitance height control: 1.990kg
3 A
~ 50
℃ ℃
