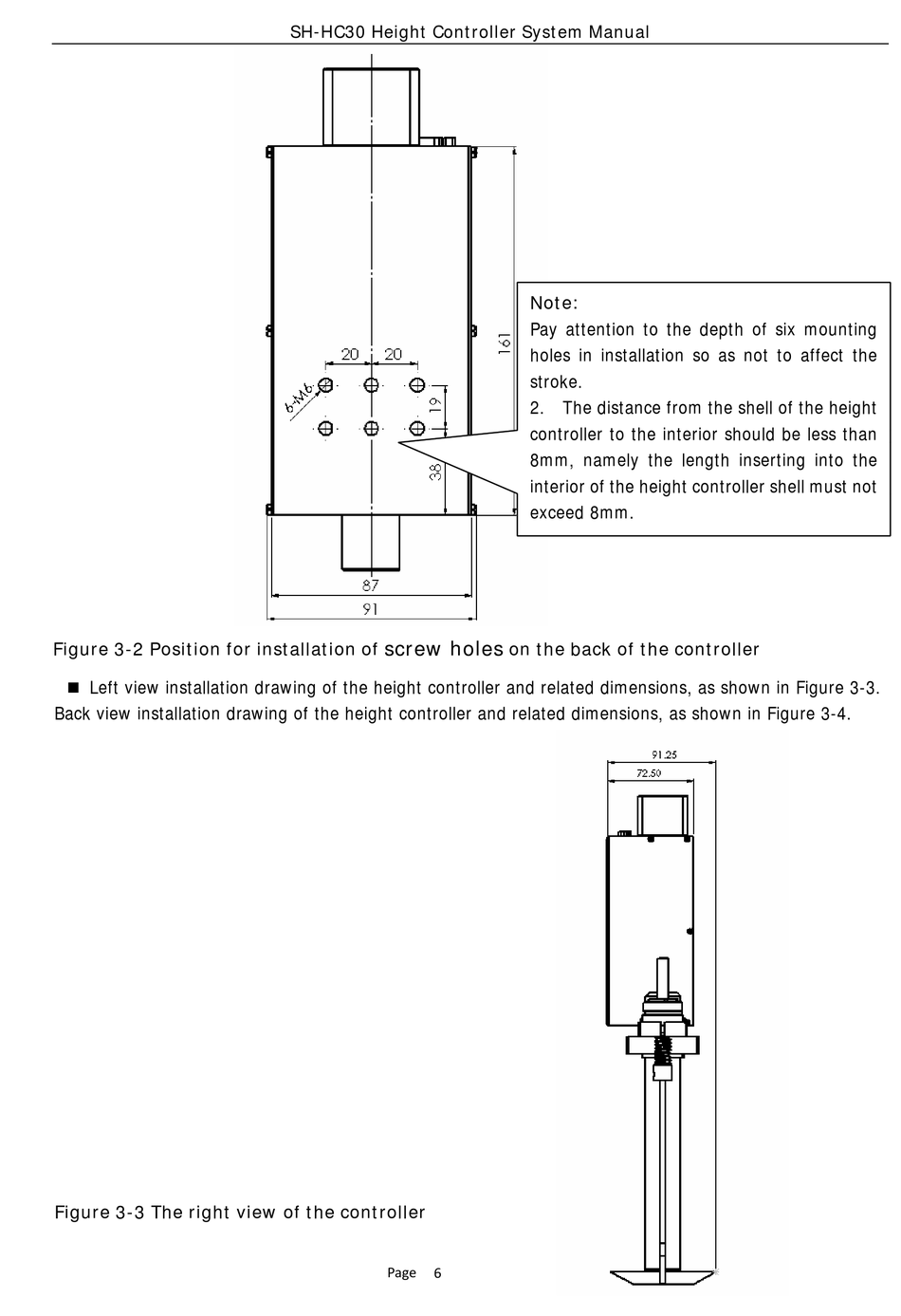

Figure 3-2 Position for installation of
Left view installation drawing of the height controller and related dimensions, as shown in Figure 3-3.
Back view installation drawing of the height controller and related dimensions, as shown in Figure 3-4.
Figure 3-3 The right view of the controller
Page 6
SH-HC30 Height Controller System Manual
screw holes
Note:
Pay attention to the depth of six mounting
holes in installation so as not to affect the
stroke.
2. The distance from the shell of the height
controller to the interior should be less than
8mm, namely the length inserting into the
interior of the height controller shell must not
exceed 8mm.
on the back of the controller
