SH-HC30 Height Controller System Manual
.
Note: Those that do not list the pin serial number will not be used
Connecting to voltage divider boar
Connecting to numerical control system
Connecting to height controller
9‐pin connector of voltage divider board
15‐pin connector of height
25‐pin connector of numerical control system

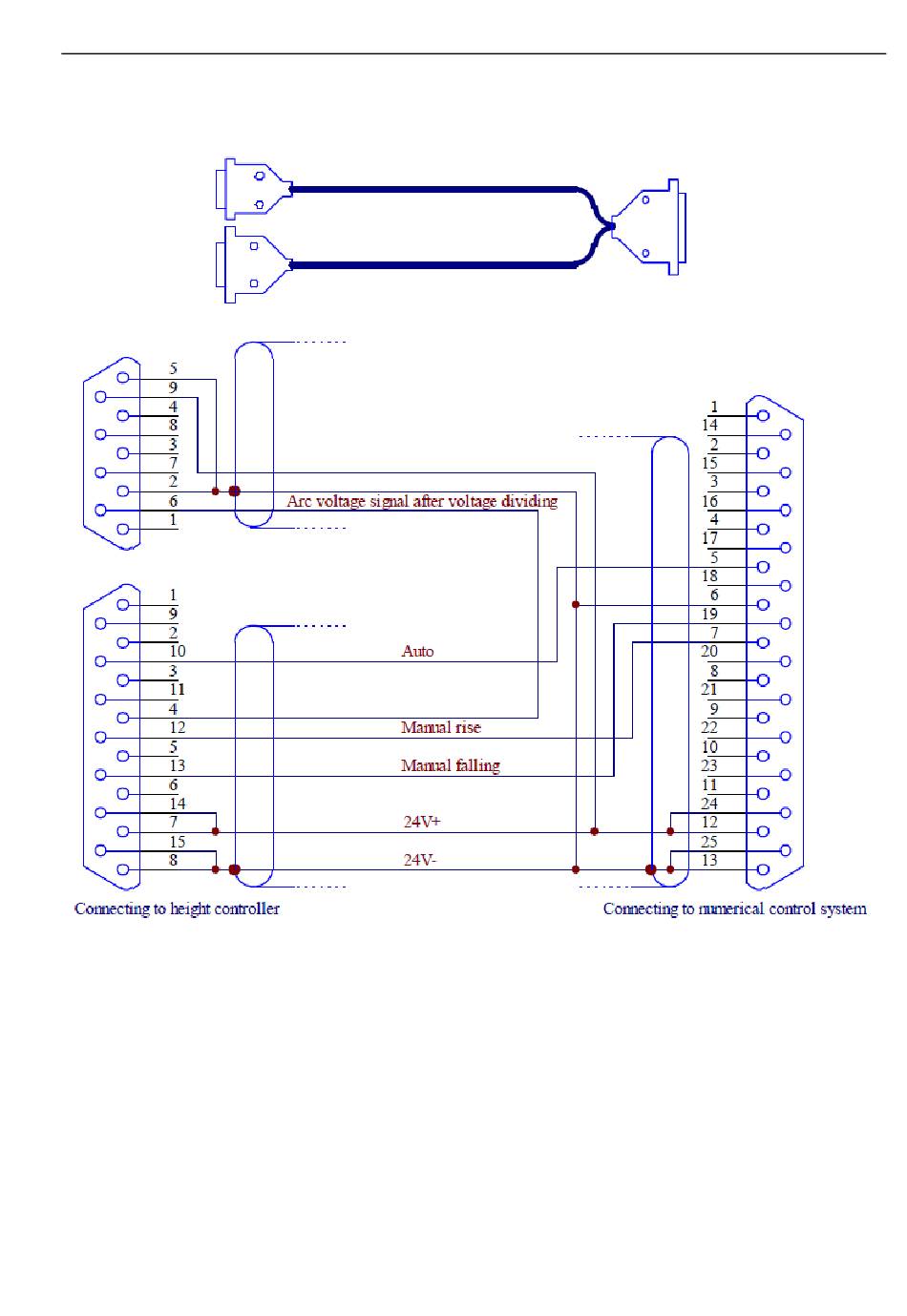

Figure 3-9 Wiring diagrams of arc-type height controller, voltage divider board and numerical control system
Note: The wire diameter of 24V power cord and ground wire should be greater than 0.5 square millimeter.
