Control Operation Of Electrical Operation Panel - MicroStep SH-HC30 User Manual

4. Quick Operation Guide of Height Controller in
Capacitance and Arc Voltage Modes
4.1 Cont rol operation of electrical operat ion panel: (external switch mode)
For t he wiring of height controller in capacitance mode, see Section 3.2 -- "Electrical
Connection"
For the wiring of height controller in arc voltage mode, see Section 3.3-- "Electrical
Connection"
The operation procedure is as follows:

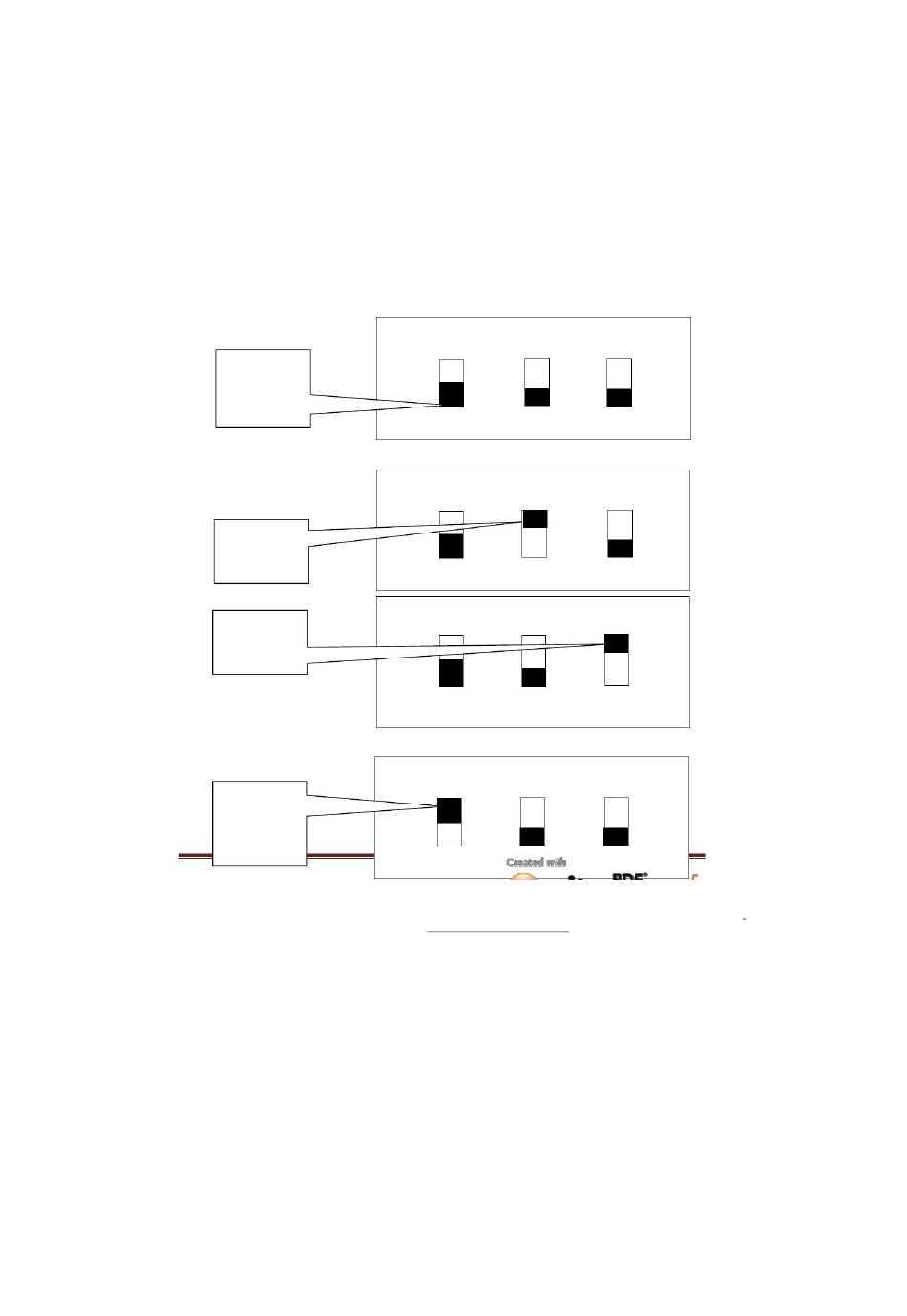

Set the automatic/manual control switch to manual mode
Set the
automatic/manual
control switch to
manual mode
2.Adjust the ascend/descend switch of the cutting torch as needed
Adjusts the
ascen d/descend switch to
lift the cutting torch
Adjusts the
ascend/descend switch to
torch.
lower the cutting
3. Set the automatic/manual control
switch to
automatic mode
Set the au tomatic/manual
switch
control
automatic mode
