1. Preface

Either flame cutting or plasma cutting mode the stability of the distance (height) between the cutting torch
and the cutting board in cutting is essential, which will directly affect the cutting speed and cutting quality.

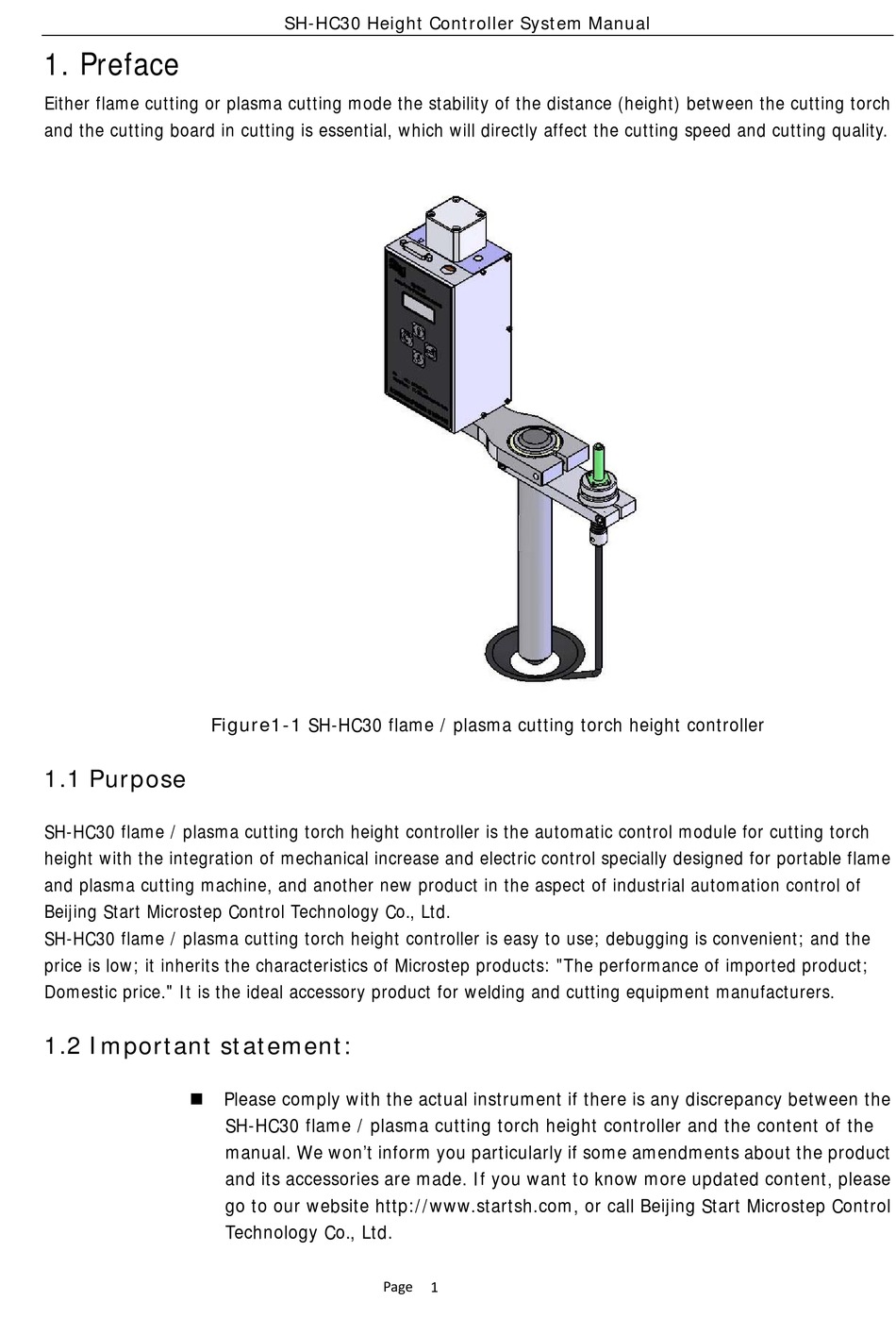

Figure1-1 SH-HC30 flame / plasma cutting torch height controller

1.1 Purpose

SH-HC30 flame / plasma cutting torch height controller is the automatic control module for cutting torch
height with the integration of mechanical increase and electric control specially designed for portable flame
and plasma cutting machine, and another new product in the aspect of industrial automation control of
Beijing Start Microstep Control Technology Co., Ltd.
SH-HC30 flame / plasma cutting torch height controller is easy to use; debugging is convenient; and the
price is low; it inherits the characteristics of Microstep products: "The performance of imported product;
Domestic price." It is the ideal accessory product for welding and cutting equipment manufacturers.

1.2 Important statement:


Page 1
SH-HC30 Height Controller System Manual
Please comply with the actual instrument if there is any discrepancy between the
SH-HC30 flame / plasma cutting torch height controller and the content of the
manual. We won't inform you particularly if some amendments about the product
and its accessories are made. If you want to know more updated content, please
go to our website http://www.startsh.com, or call Beijing Start Microstep Control
Technology Co., Ltd.
