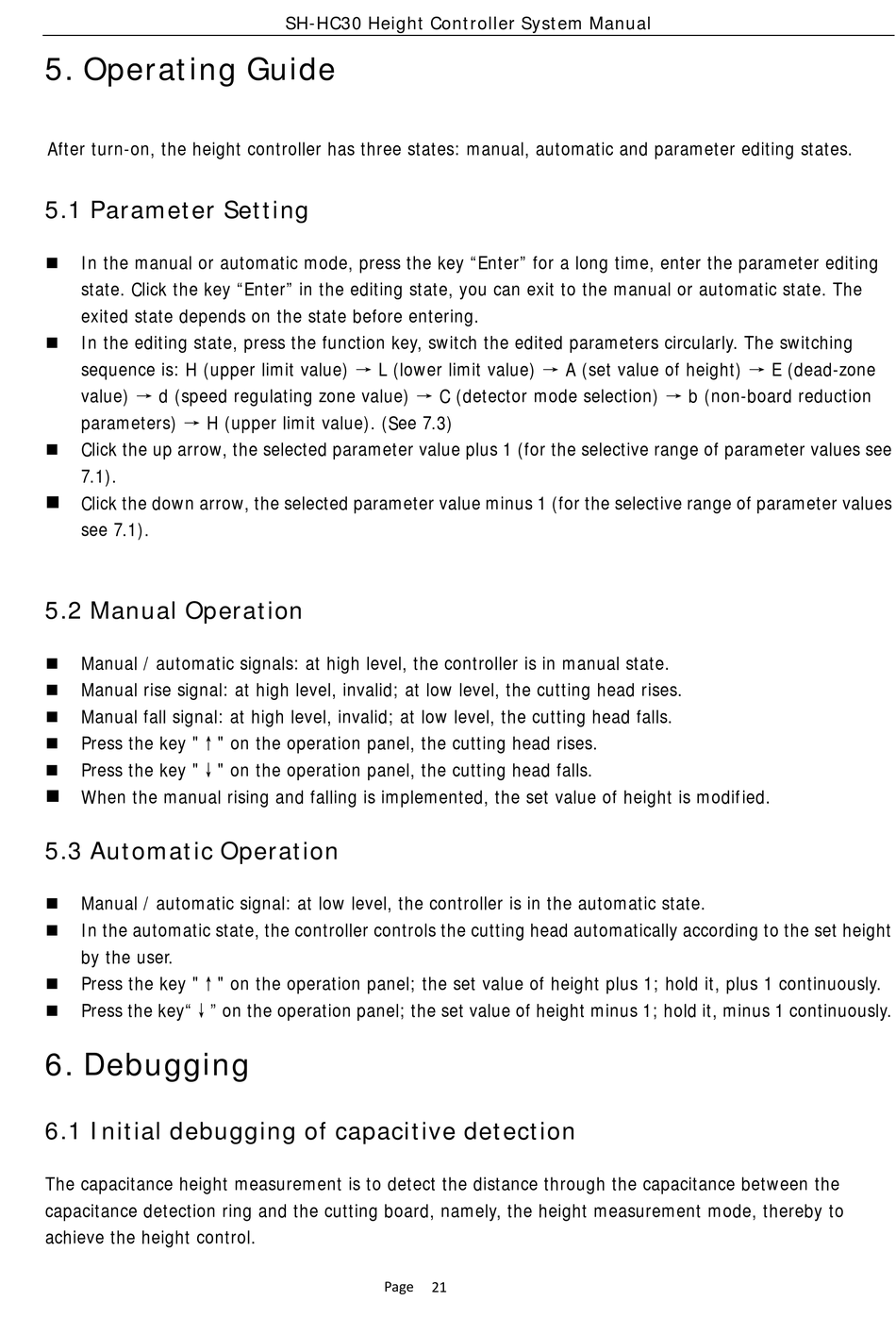

5. Operating Guide

After turn-on, the height controller has three states: manual, automatic and parameter editing states.

5.1 Parameter Setting

In the manual or automatic mode, press the key "Enter" for a long time, enter the parameter editing

state. Click the key "Enter" in the editing state, you can exit to the manual or automatic state. The
exited state depends on the state before entering.
In the editing state, press the function key, switch the edited parameters circularly. The switching

sequence is: H (upper limit value)
value) d (speed regulating zone value)
→
parameters) H (upper limit value). (See 7.3)
→
Click the up arrow, the selected parameter value plus 1 (for the selective range of parameter values see

7.1).

Click the down arrow, the selected parameter value minus 1 (for the selective range of parameter values
see 7.1).

5.2 Manual Operation

Manual / automatic signals: at high level, the controller is in manual state.

Manual rise signal: at high level, invalid; at low level, the cutting head rises.

Manual fall signal: at high level, invalid; at low level, the cutting head falls.

Press the key " " on the operation

↑
Press the key " " on the operation panel, the cutting head falls.

↓

When the manual rising and falling is implemented, the set value of height is modified.

5.3 Automatic Operation

Manual / automatic signal: at low level, the controller is in the automatic state.

In the automatic state, the controller controls the cutting head automatically according to the set height

by the user.
Press the key " " on the operation panel; the set value of height plus 1; h
 ↑
Press the key" " on the operation panel; the set value of height minus 1;

↓

6. Debugging

6.1 Initial debugging of capacitive detection

The capacitance height measurement is to detect the distance through the capacitance between the
capacitance detection ring and the cutting board, namely, the height measurement mode, thereby to
achieve the height control.
Page 21
SH-HC30 Height Controller System Manual
L ( lower limit value)
→
C (detector mode selection)
→
panel, the cutting head rises.
A (set value of height)
→
b (non
→
old it, plus 1 continuously.
hold it, minus 1 continuously.
E (dead -zone
→
-board reduction
