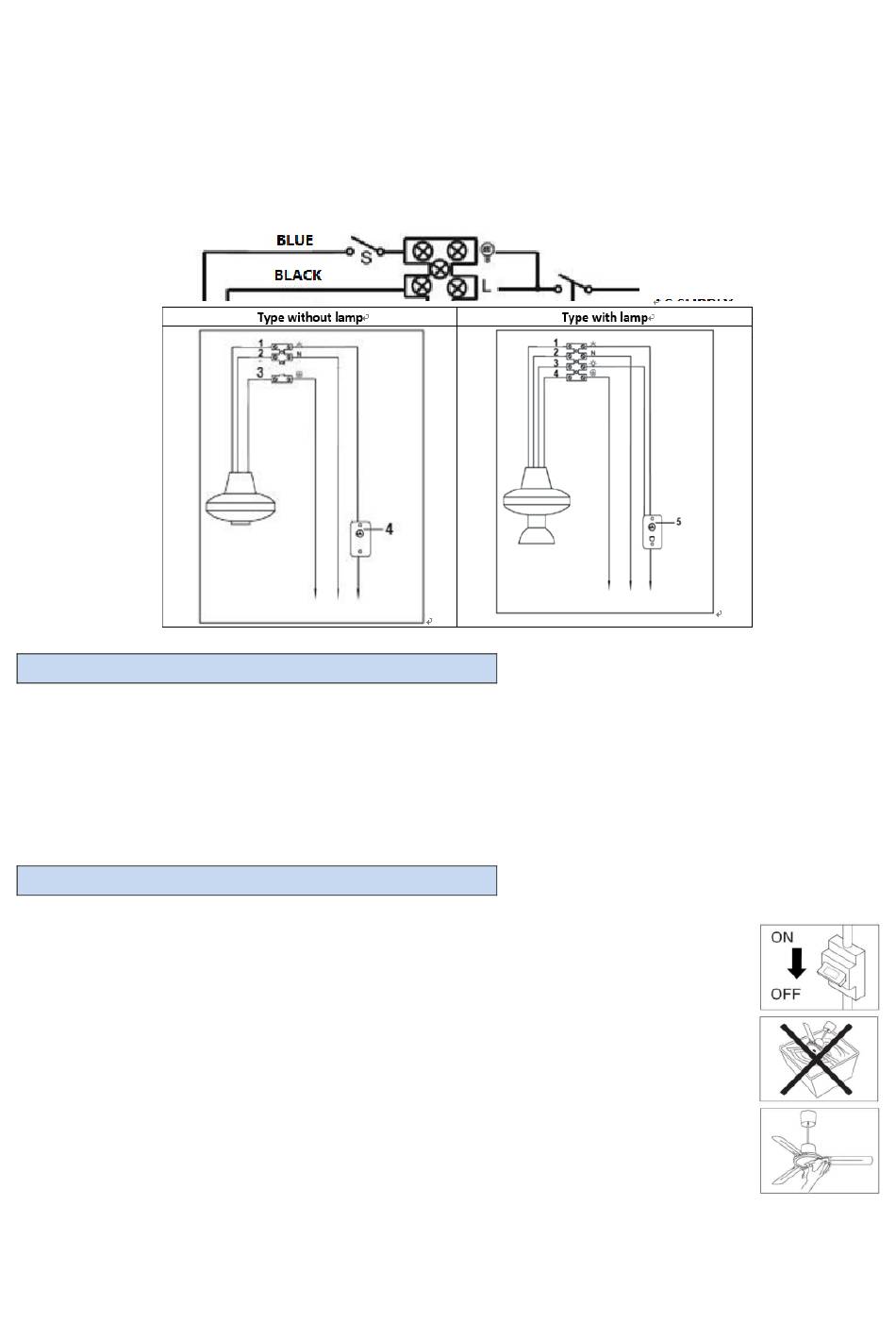

Carry out electrical connections according to the diagram shown and described below.
•
BLACK wire "LIVE,FAN": motor phase
•
WHITE wire "NEUTRAL": common neutral for motor and lamps
•
BLUE wire "LIGHT": lamp phase
•
GREEN / YELLOW wire: Grounding, corresponding to the symbol Connect the wires to the fan and those coming
from the ceiling with the supplied terminal block according to the wiring diagrams provided below:
HOW TO USE
The fan is equipped with the following operating elements:
• Wall-mounted control switch which works by rotating the knob to select 0 to 5.
• Switch for the motor rotation in a clockwise or anti-clockwise direction in order to have a direct air flow from the
centre to the outside or vice versa (this feature is only present on some models)
• Switch to turn the lamp on and off (on models with this option) and it works by pressing the 0 / I switch on models
with wall control.
CARE AND CLEANING
Attention: before normal cleaning operations, turn the fan off, turn the fan lamp off (if present), and
disconnect from mains power by turning off the isolating switch (pos. 0/OFF).
•
For cleaning, use a soft, slightly damp cloth; do not use abrasive or corrosive products. Be careful
not to damage the equipment, blades, electrical connections, or impair the hardware.
•
Do not immerse or soak any part of the fan in water or any other liquid; in the event that this
happens, first ensure the fan is disconnected from the mains power supply, and then wipe the
appliance off carefully, making sure that all electrical parts are perfectly dry: in case of doubt,
consult a qualified professional
•
It is important to keep the air vents of the motor free of dust and lint.
