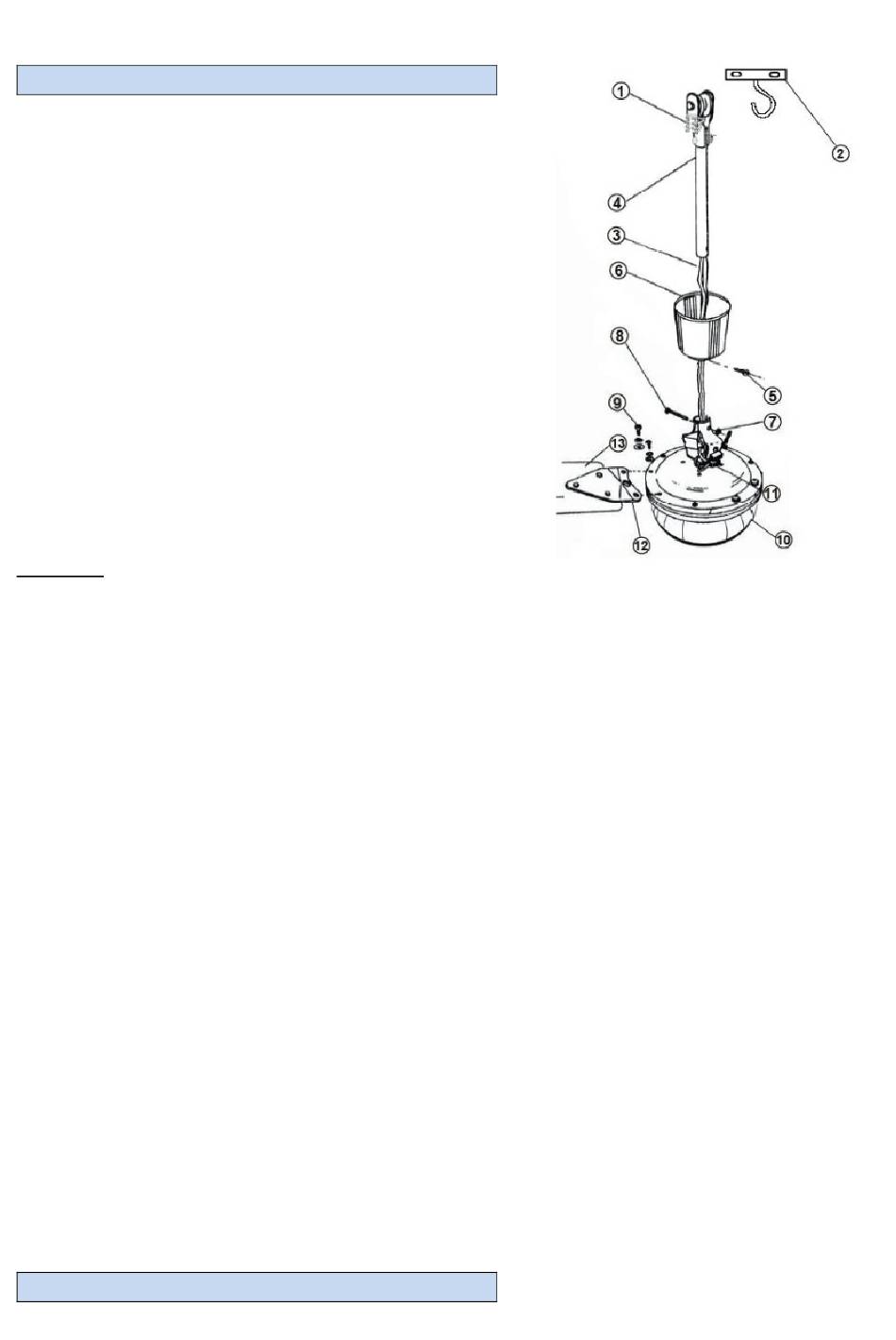

INSTALLING THE FAN

1. Terminal block
2. Support plate
3. Electrical wiring
4. Support rod
5. Screw to secure to cap to support plate
6. Top cap
7. Cotter pin
8. Pin
9. Screws and washers for fixing blade support to motor
10. Glass shade
11. Motor
12.Blade support
13.Blade
ASSEMBLY:
1. Attach the mounting plate to the ceiling (2): drill the holes, taking care not to damage any piping inside the wall (first
check if there are water or gas pipes etc. .. or electrical wires embedded in the wall); use expansion dowels and
screws with washers to attach the plate. Make sure it is firmly attached, then apply a weight to the plate 4 times higher
than that of the fan and check that the plate remains perfectly fixed to the base.
2. Insert the support rod through the top cap (6) and insert the electrical cables through the hollow shaft. The wires are
inserted from bottom to top.
3. Insert the lower end of the rod into the motor support pin, so that the holes are coaxial and insert locking pin (8).
4. Place the washer on the pin and secure the pin using the cotter pin ( 7 ) which must be fully inserted and then bent
so as to prevent both the pin and cotter pin from slipping off.
5. Fix the motor support further to the rod by tightening the safety screw.
6. Temporarily hang the fan on the hook on the support plate Make the electrical connections as explained in the
"Electrical Connection" section and then proceed as follows.
7. Remove the fan from the hook on the support plate hold it up so as not to tear / damage the electrical connections.
Check that the wires are free and housed in the correct way and position the top cap near the support plate. Tighten
the screw properly.
8. Attach the blade supports (14) to the blades (13) using screws with washers and nuts, and tighten appropriately. For
some models, the blades are not reversible, so fix the support to the right side of the blade. For some models nuts
are not needed and are therefore not provided.
9. Mount the blades to the motor, placing them in the correct way (pay attention to the side of the blade), and screw on
the blade supports with the screws and washers supplied. Check that all screws are tightened in the correct way, both
for safety purposes,but also to prevent the fan from swinging excessively during operation.
10. Some fans may be supplied with a lamp. The lamp placed under the motor can be assembled and connected in
advance, or it will be supplied in a kit to connect and assemble.In this case, simply screw the bulb (not included)
corresponding to the specific details given on the nameplate and / or on the data plate near the socket. Max 60W,
lamp holder E27.
