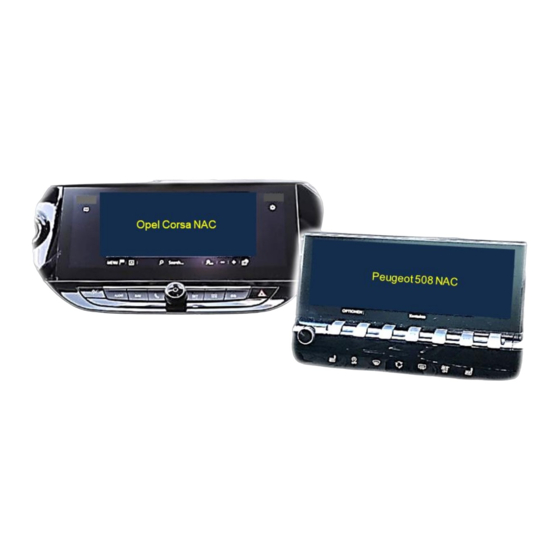

Citroen, Opel and Peugeot vehicles
Video-inserter for front- and rear-view camera
Product features
 Video-inserter for factory-infotainment systems
 1 CVBS Input for rear-view camera
 1 CVBS Input for front camera
 2 CVBS video-inputs for after-market devices (e.g. 2 mirror cameras, USB-Player,
DVB-T2 tuner)
 Automatic switching to rear-view camera input on engagement of the reverse gear
 Automatic front camera switching after reverse gear for 10, 15 or 20 seconds
(adjustable)
 Activatable parking guide lines for rear-view camera in combination with PDC
display (not available for all vehicles)
 Video-in-motion (ONLY for connected video-sources)
 Video-inputs NTSC compatible
Version 29.11.2022
Video-inserter
RL4-NAC12
Compatible with
with NAC infotainment
and two additional video inputs
HW: BOT(V43)(V54)
RL4-NAC12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL4-NAC12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NavLinkz RL4-NAC12

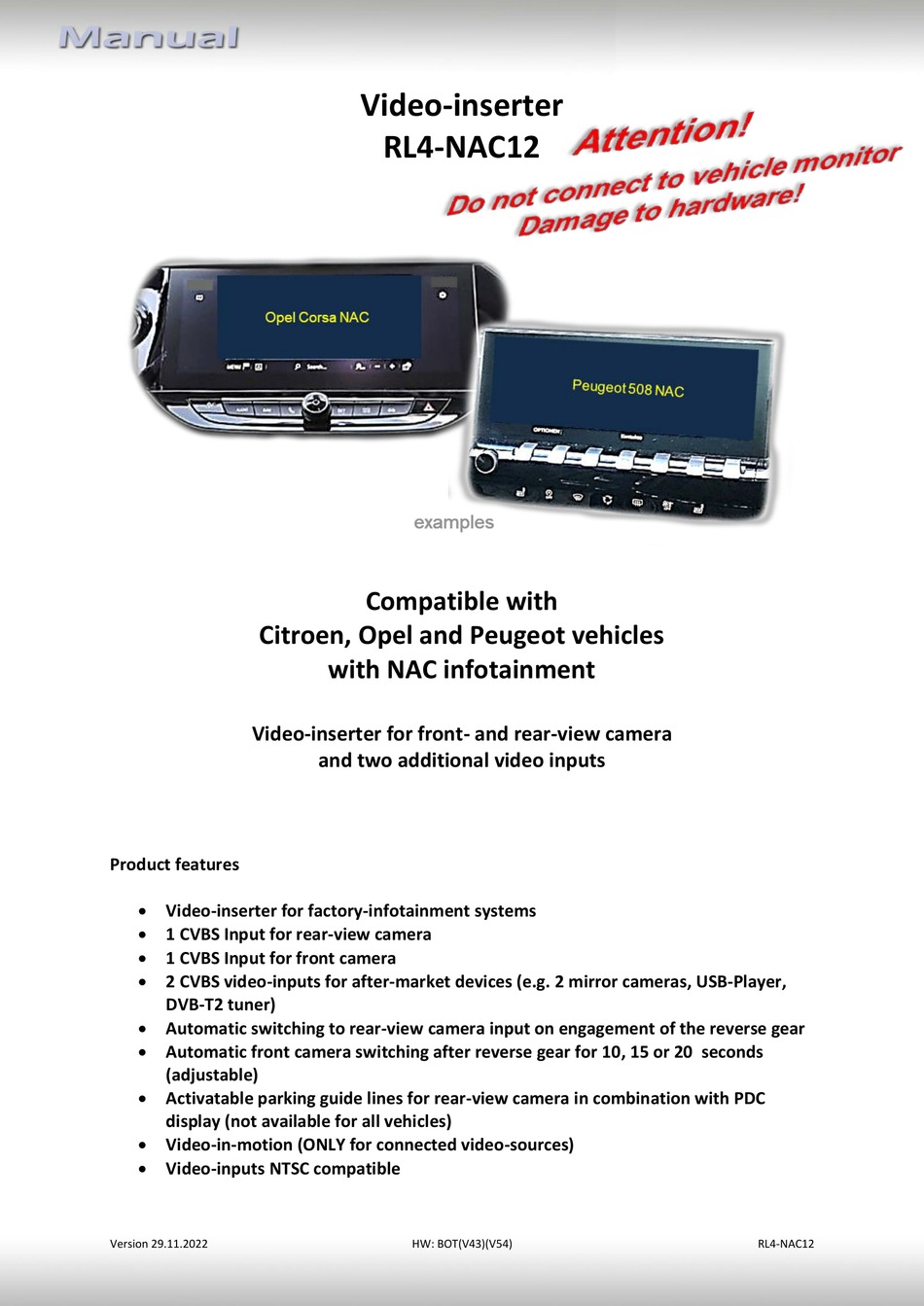

  • Page 1 Video-inserter RL4-NAC12 Compatible with Citroen, Opel and Peugeot vehicles with NAC infotainment Video-inserter for front- and rear-view camera and two additional video inputs Product features  Video-inserter for factory-infotainment systems  1 CVBS Input for rear-view camera  1 CVBS Input for front camera ...
  • Page 2: Table Of Contents

    Case 2: Video interface does not receive the reverse gear signal 2.5.3. After-market front camera 2.5.4. After-market mirror cameras 2.6. Connection - external keypad 2.7. Picture settings 3. Interface operation 4. Specifications 5. FAQ – Trouble shooting 6. Technical support Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 3: Prior To Installation

    Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 4: Checking The Compatibility Of Vehicle And Accessories

    Guidelines can only be displayed together with PDC. NAC high-version If the two HSD connectors cannot be separated for the reconnection of the white HSD socket, the separately available cable CAB-HSD-MF026 can optionally be connected here. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 5: Warning Notes

    Warning notes: Damage to the head-unit is possible, if this RL4-NAC12 interface is installed to older Citroen / Peugeot SMEG or SMEG+ head-units (by Magneti Marelli)! Use this RL4-NAC12 interface only on Citroen/Opel/Peugeot head-units NAC (by Continental) or RCC (Bosch) with 10.25inch monitor.
  • Page 6: Connection Video-Interface

    Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 7: Settings Of The 8 Dip Switches

    +12V when the front camera is manually selected by external keypad (see chapter "Power Supply Output"). **The display of the guidelines only works with simultaneous PDC display (Dip8 = ON). After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 8: Enabling The Interface's Video Inputs Av1-R And Av2-L (Dip 1-2)

    If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 9: Activating The Factory Pdc Display (Dip-8)

    Before the final installation, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer, there’s always the possibility of incompatibility. 2.1. Place of installation – video-interface The video-interface is performed to be installed at the head unit’s rear side. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 10: Connection Schema

    2.2. Connection schema Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 11: Connection - Picture Signal Cable

    4pin HSD connector of the enclosed 4pin HSD harness. Connect the waterblue coloured female 4pin HSD connector to the previously become free black 4pin HSD connector at the rearside of the head unit. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 12: High Version Head Unit (2 X 4 Pin Hsd)

    Attention: The picture’s representation of the double 4-pin HSD connector may be reversed. Make sure that the white 4pin HSD connector is reconnected to the same position of the head unit, where it has been connected before! Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 13: Connection- Power / Can

    Connect the opposite female quadlock connectorof the enclosed10pin power/CAN cable to the previously released quadlock connector of the Head Unit. Connect the power / CAN cable’s female 10pin connector to the 10pin connector of the video interface. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 14: Installation With Analogue Connection (Without Can-Bus)

    Note: In case the analogue connection has to be made (because some vehicles are not compatible), the input signal for each connected video source must also be manually triggered via the corresponding 4 trigger lines Trig-REAR/Trig-FRONT/Trig-RIGHT/Trig-LEFT For analogue connection, don’t forget to set dip4 to OFF! Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 15: Power Supply Output

    Attention: If mirror cameras shell be energized, only continuous current-resistant cameras are allowed to be connected to the red wire „ACC-out” as ,otherwise, non-resistent cameras would be damaged. Continuous current-resistance is supported by our following cameras:  CAM-E-B168  CAM-E-B180  CAM-E-B113 Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 16: Connection - Video Sources

    In the inserted video picture of Peugeot 308 (front and rear view camera, video 1 and video 2), a 2-3 mm wide stripe is known which remains on the right side and cannot be faded out (see picture). Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 17 Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „V3 Front“. Connect the video RCAs of the AV source 1 and 2 or alternatively of two mirror cameras to the 12pin interface cable’s female RCA connector “AV1 Left” ”AV2 Right”. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 18: Audio Insertion

    Reverse“while reverse gear is engaged. The 12 V power supply for the rear-view camera (max 3A) has to be taken from the green wire “Reverse-OUT”of the 20pin cable to avoid an unnecessary, permanent power supply to the camera electronic. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 19: Case 2: Video Interface Does Not Receive The Reverse Gear Signal

    Note: If, due to a missing CAN communication, interface has been connected the analogue way, the green wire’s connection has also to be done as shown in the picture above. For analogue connection, dont forget to set dip4 to OFF! Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 20: After-Market Front Camera

    Note: In addition, a manual switch-over to the front camera input is possible via keypad (short press) from any image mode. The power supply output supplies +12V then, too (if Dip 3 is set to ON and the front camera input is selected). Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 21: After-Market Mirror Cameras

    Attention: To energize the mirror camaras, only continuous current-resistant cameras may be connected to the red line „ACC-out“, as they would otherwise be damaged. Our following cameras are among others resistant to continuous current:  CAM-E-B168  CAM-E-B180  CAM-E-B113 Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 22: Connection - External Keypad

    Connect the keypad’s female 4pin connector to the 20pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 23: Picture Settings

    The following settings are available: Contrast Brightness Saturation Pos H horizontal picture position Pos V vertical picture position Front Front camera switch back Duration adjustable for 10, 15 or 20 seconds (10 seconds is preset) Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 24: Interface Operation

    7V - 25V Stand-by power drain Power 280mA @12V Video input 0.7V – 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions Video-Box 117 x 25 x 108 mm (W x H x D) Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 25: Faq - Trouble Shooting

    Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 29.11.2022 HW: BOT(V43)(V54) RL4-NAC12...
  • Page 26: Technical Support

    6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
