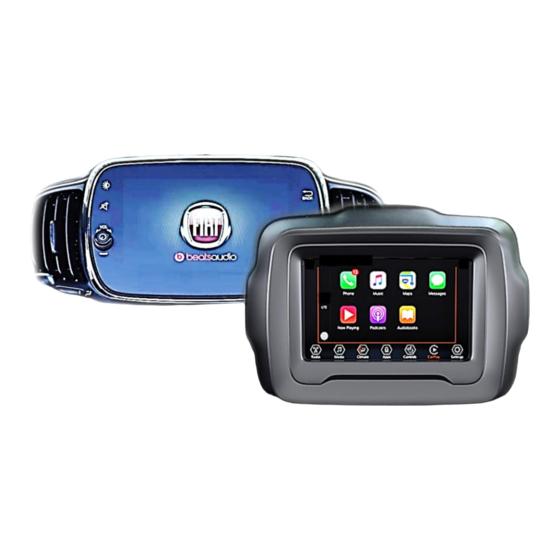

Chrysler, Dodge, Fiat und Jeep vehicles
with Uconnect 7inch infotainment
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 13.02.2023
Video-inserter
RL4-UCON7-500
Compatible with
and two additional video sources
HW CAM(V98) / (V43)
RL4-UCON7-500
Advertisement
Table of Contents
Related Manuals for NavLinkz RL4-UCON7-500
Summary of Contents for NavLinkz RL4-UCON7-500
- Page 1 Video-inserter RL4-UCON7-500 Compatible with Chrysler, Dodge, Fiat und Jeep vehicles with Uconnect 7inch infotainment Video-inserter for front- and rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera 1 CVBS Input for front camera ...
-
Page 2: Table Of Contents
Case 1: Interface receives the reverse gear signal 2.8.3.2. Case 2: Interface does not receive the reverse gear signal 2.9. Connection – external keypad Interface operation by external keypad Picture settings Specifications Frequently asked questions Technical support Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 3: Prior To Installation
1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation has to be free of moisture and away from heat sources. 1.1. Delivery contents Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 4: Checking The Interface Compatibility Of Vehicle And Accessories
The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Video input signal NTSC video sources compatible only. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 5: Connectors - Video Interface
The video-interface (daughter PCB) converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. 1.4. connectors – daughter PCB Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 6: Dip-Switch Settings
No function Set to OFF No function Set to OFF No function Set to OFF *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 7: Activating The Front Camera Input (Dip 1)
Dip position down is ON and position up is OFF. Set all dip switches to off Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 All vehicles Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 8: Installation
2.1. Place of installation The video interface shell be installed behind the vehicle`s head unit, depending on offered space. The daughter PCB shell be connected and installed inside the factory monitor. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 9: Connection Scheme
2.2. Connection schema Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 10: Installation - Ribbon Cables Into The Monitor Panel
Installation – ribbon cable into the monitor panel Remove the factory monitor and open it`s housing. The daughter PCB is built to be installed into the optical lead between the monitor panel and mainboard of the vehicles monitor. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... - Page 11 Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500...
-
Page 12: Warning Notes, Concerning The Installation Of Ribbon Cables
2.4. Connection – 20pin picture signal cable Connect the female 20pin connector „Box Side“ of the daughter PCB’s pre-connected 20pin picture signal cable to the video interface’s male 20pin connector. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 13: Connection - 10Pin Power / Can Cable
4 cables to the vehicle’s CAN high wire and isolate the connection (Pins – see diagram). Connect the single red wire to stabile +12V terminal Connect the single black cable to the vehicle’s negative Ground. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 14: Analogue Power Supply
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V Ignition power or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 15: Power Supply Output
+12V (max. 3A) when reverse gear is engaged plus 10 seconds delay after reverse gear is disengaged and +12V when manually switched to front camera by keypad (short press) Dip 1 OFF +12V permanent (max. 3A) ACC Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 16: Connection - Video Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 17: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 18: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power supply to the camera electronic. Both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 19: Case 2: Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 20: Connection - External Keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 21: Interface Operation By External Keypad
Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces switches from the factory video to the front camera input and back to factory video. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 22: Picture Settings
The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) H-SIZE (horizontal picture size) V-SIZE (vertical picture size) Note: To adjust the reverse picture settings, engage the reverse gear. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... -
Page 23: Specifications
Video input 0.7V - 1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions interface-box 117 x 25 x 90mm (W x H x D) Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500... - Page 24 Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 13.02.2023 HW CAM(V98) / (V43) RL4-UCON7-500...
-
Page 25: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
